Console Shift Lever Bezel Replacement

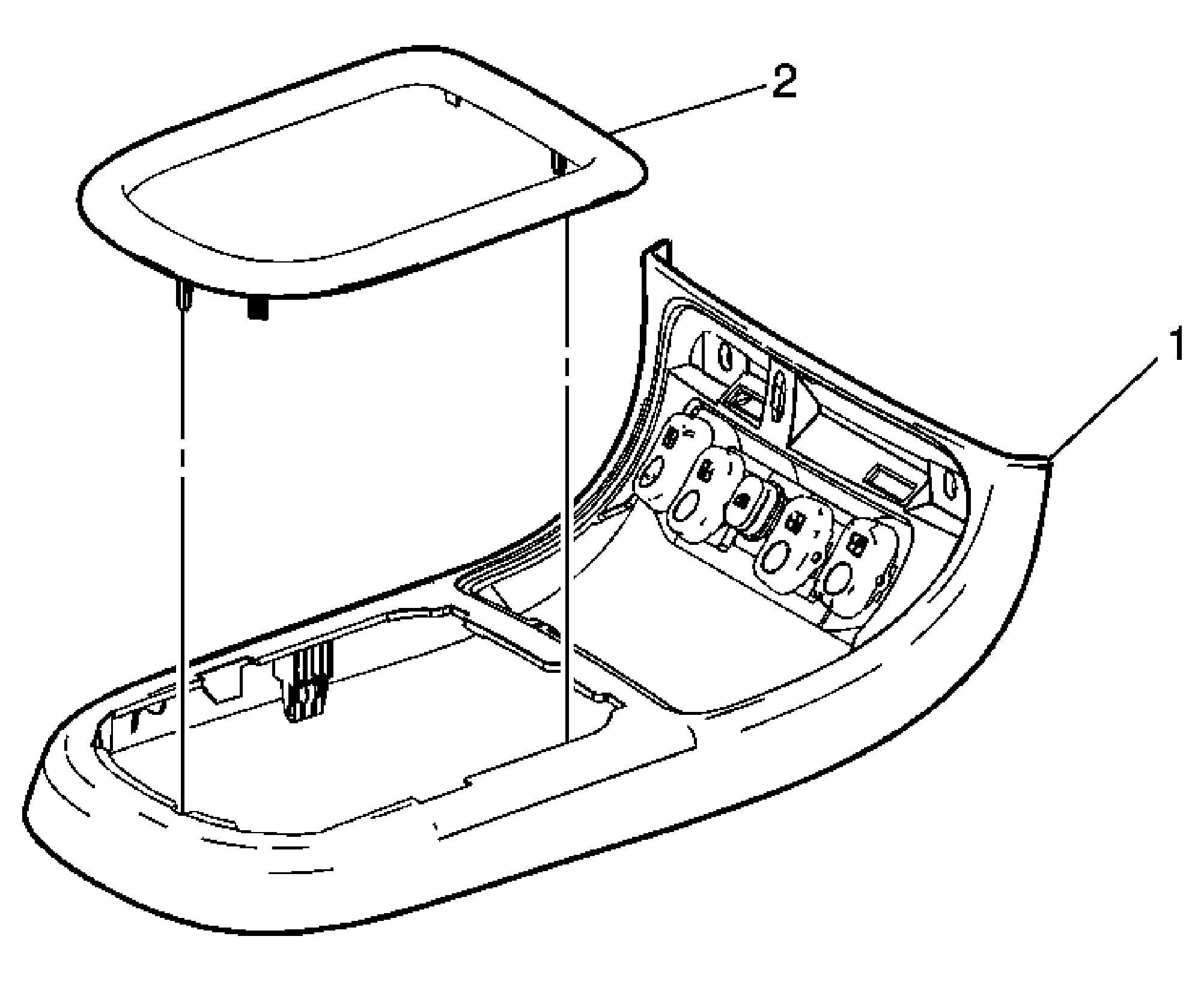

Courtesy of GENERAL MOTORS CORP. Console Shift Lever Bezel Replacement
| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
| 1 |
Console Assembly, Front Floor
Refer to Console Replacement - Front Floor . |
| 2 |
Bezel, Console Shift
Tip:
- The Console shift bezel is replaceable on cars equipped with automatic transmissions. Cars equipped with manual transmissions the bezel is not serviceable.
- The shifter bezel and front floor console plate must be removed as one assembly.
- The console shift bezel retainers must be released from the underside of the console upper trim plate.
|
