Console Replacement - Front Floor

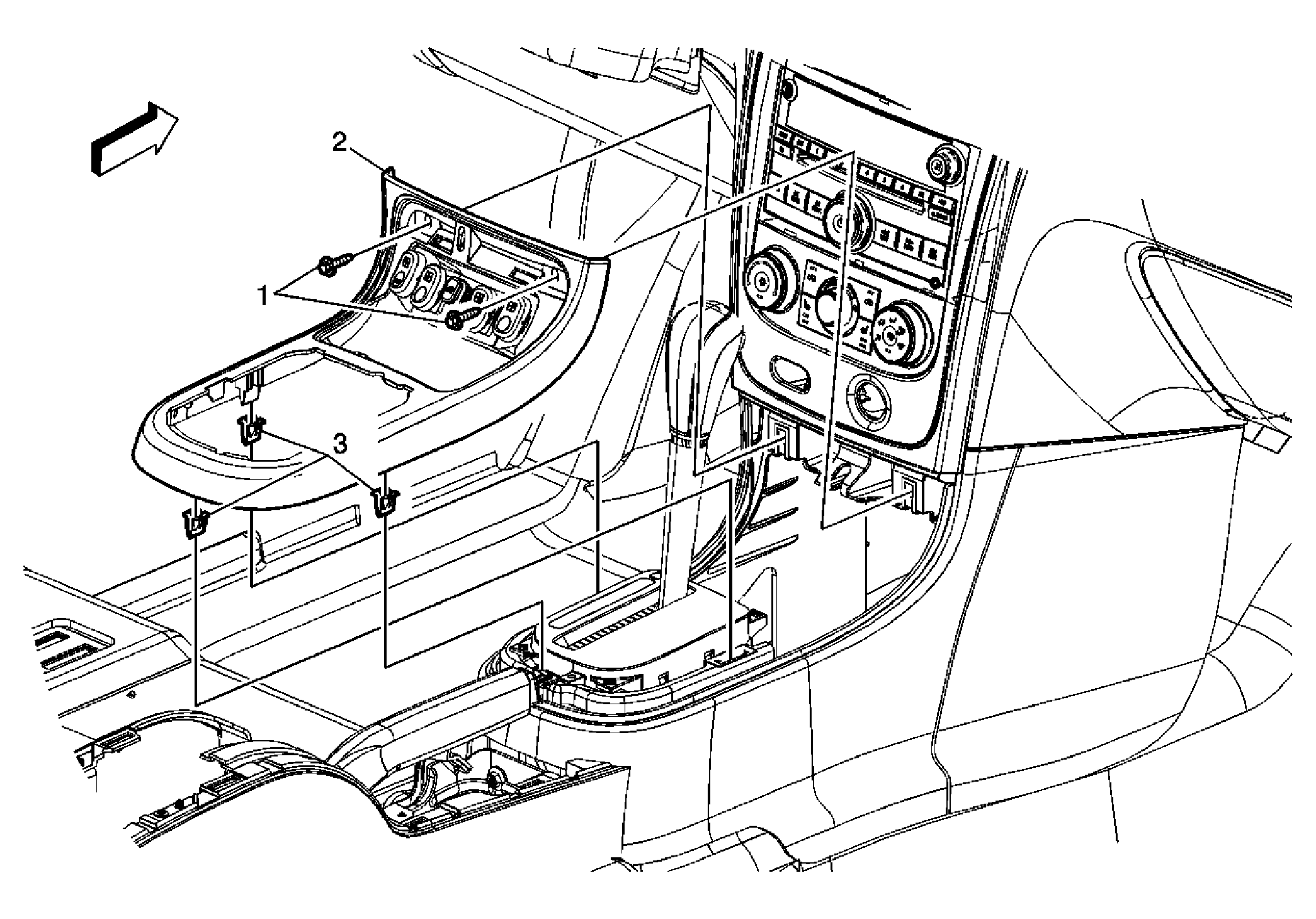

Fig 1: Console Replacement - Front Floor
GM1607824Courtesy of GENERAL MOTORS CORP.
Console Replacement - Front Floor

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the console accessory switch mount plate. Refer to Console Accessory Switch Mount Plate Replacement .
1 Screw, Front Floor Console (Qty: 2)

Tighten:  2 N.m (18 lb in)
2 Console, Front Floor
Tip:  Disconnect the electrical connector.
3 Clip, Retainer (Qty: 3)
