Removal Procedure

WARNING: This page is about a different variant/trim than selected.

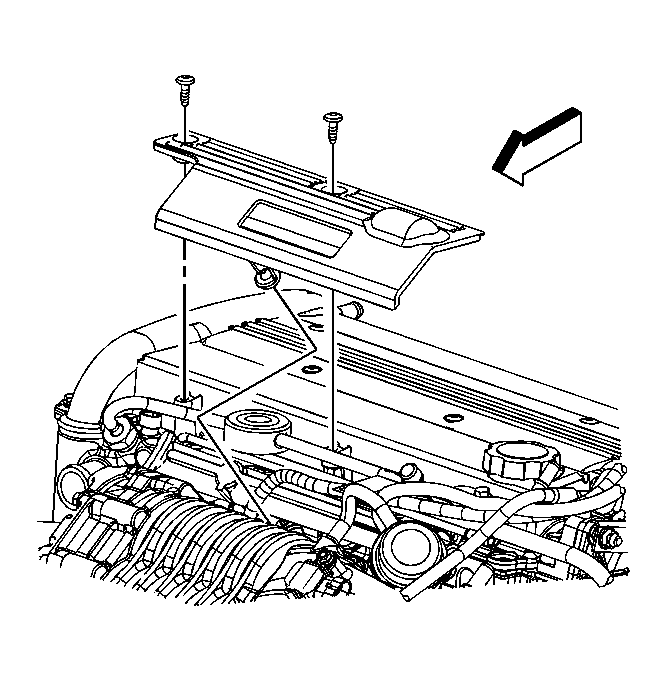

    Fig 1: Identifying Upper Intake Manifold Sight Shield
    GM1657261Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold sight shield screws.
  2. Remove the intake manifold sight shield.
