Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt. Refer to Drive Belt Replacement .

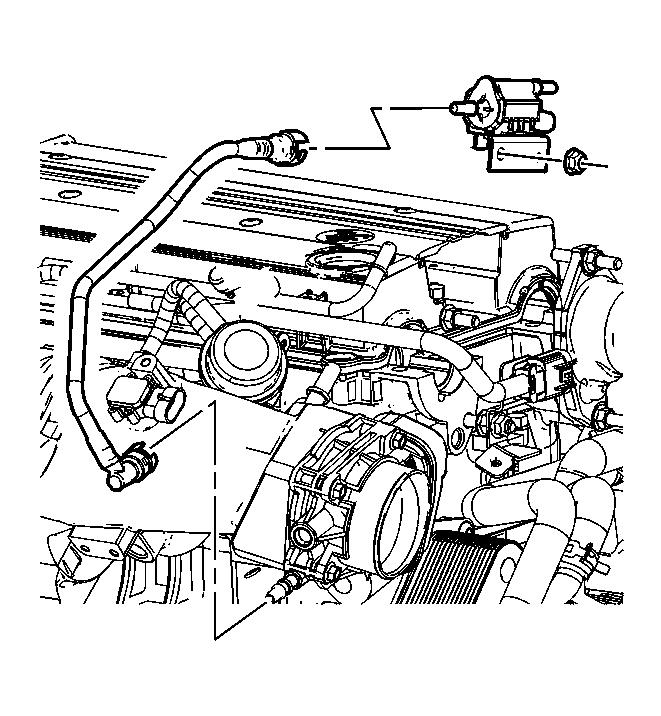

    2. Fig 1: View Of EVAP Tube & Valve
    GM1381507Courtesy of GENERAL MOTORS CORP.
  2. Remove the evaporative emission (EVAP) tube and EVAP valve.
    3. Fig 2: View Of Throttle Body & Gasket
    GM1339289Courtesy of GENERAL MOTORS CORP.
  3. Remove the throttle body and gasket. Refer to Throttle Body Assembly Replacement in Engine Controls - 2.0L.
  4. Remove the supercharger inlet pressure (SCIP) sensor.
  5. Disconnect the vacuum brake booster hose.
  6. Remove the intercooler fill neck bracket bolts.
  7. Remove the vacuum line from the supercharger.
    8. Fig 3: View Of Supercharger & Gasket
    GM1339285Courtesy of GENERAL MOTORS CORP.
  8. Remove the supercharger. Remove the gasket if damaged.
