Installation Procedure

WARNING: This page is about a different variant/trim than selected.

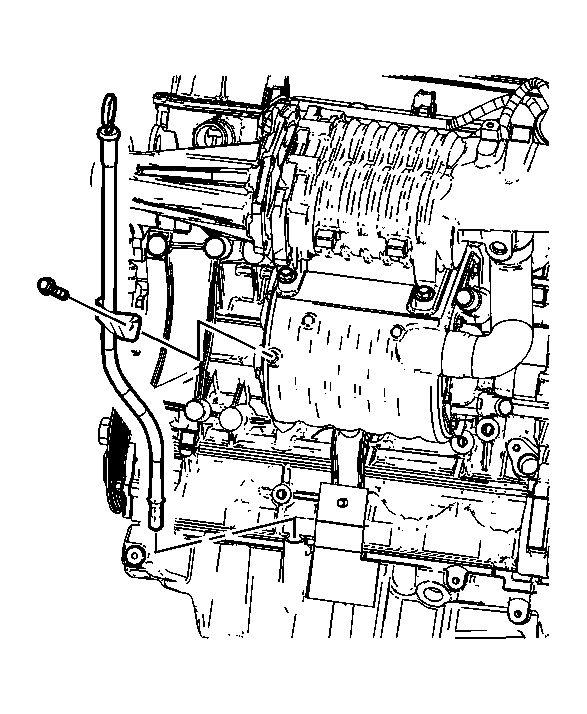

    Fig 1: View Of Oil Level Indicator Tube
    GM1339176Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level indicator tube seal.
  2. Install the oil level indicator tube.
  3. Clip the upper electrical wiring harness to the oil level indicator tube.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the oil level indicator tube bolt.

    Tighten:  Tighten the oil level indicator tube bolt to 10 N.m (89 lb in).

  5. Raise the vehicle.
  6. Clip the lower wiring harness.
  7. Lower the vehicle.
