Installation Procedure

WARNING: This page is about a different variant/trim than selected.

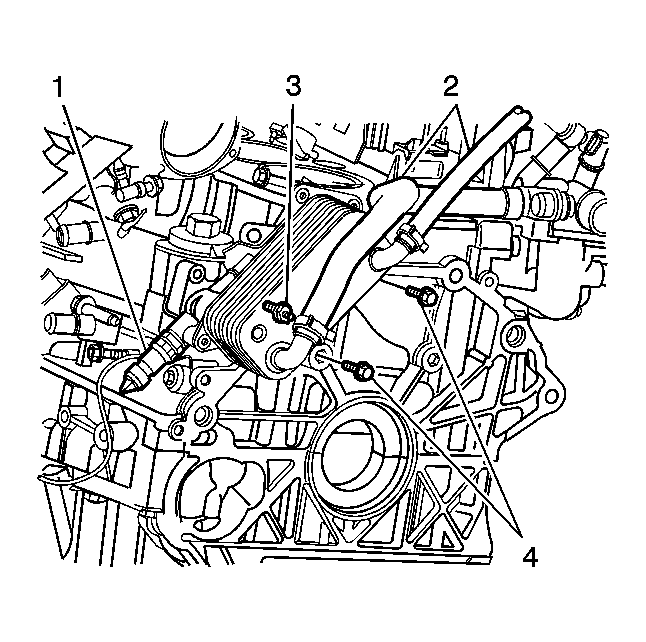

    Fig 1: Identifying Oil Pressure Sensor, Cooler Hoses, Cooler Stud And Cooler Bolts
    GM1577505Courtesy of GENERAL MOTORS CORP.
  1. Install the oil cooler.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil cooler bolts (4) and stud (3).

    Tighten:  Tighten the bolts and stud to 22 N.m (16 lb ft).

  3. Connect the oil cooler hoses (2).
  4. Install the oil pressure sensor (1).

    Tighten:  Tighten the sensor to 22 N.m (16 lb ft).

  5. Fill the charged air cooling system. Refer to Draining and Filling Cooling System - Charge Air Cooling System in Engine Cooling.
