Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View OF Ignition Coils
    GM1387190Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coils. Refer to Ignition Coil(s) Replacement in Engine Controls - 2.0L.
  2. Remove the ground strap and stud.
  3. Disconnect the positive crankcase ventilation (PCV) hose from the cam cover.
    4. Fig 2: View Of Fuel Line
    GM1387192Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the fuel feed pipe from the fuel rail.

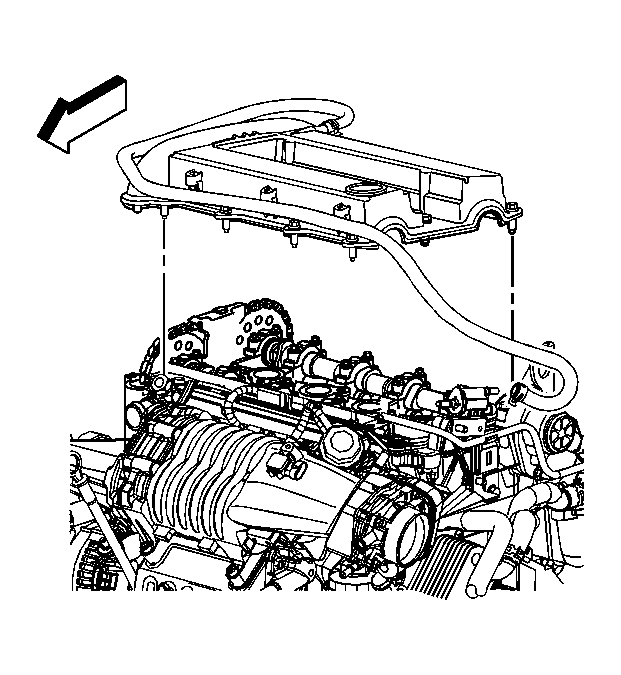

    5. Fig 3: View Of Camshaft Cover
    GM1382305Courtesy of GENERAL MOTORS CORP.
  5. Remove the camshaft cover bolts.
  6. Remove the camshaft cover.
