Oil Cooler Removal

WARNING: This page is about a different variant/trim than selected.

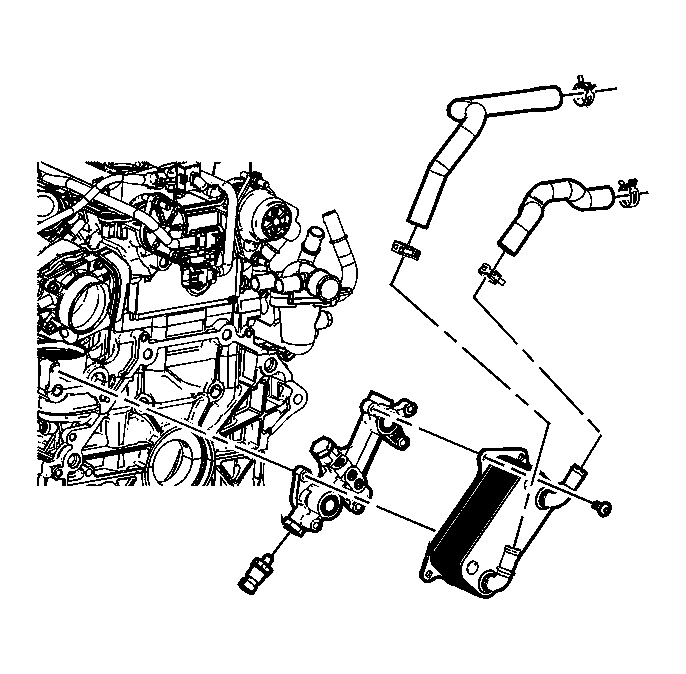

    Fig 1: View Of Oil Cooler & Components
    GM1339280Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil cooler lines.
  2. Remove the oil pressure sensor.
  3. Remove the oil cooler.
  4. Remove the oil bypass tube. Discard the O-rings.
