Intake Manifold Removal

WARNING: This page is about a different variant/trim than selected.

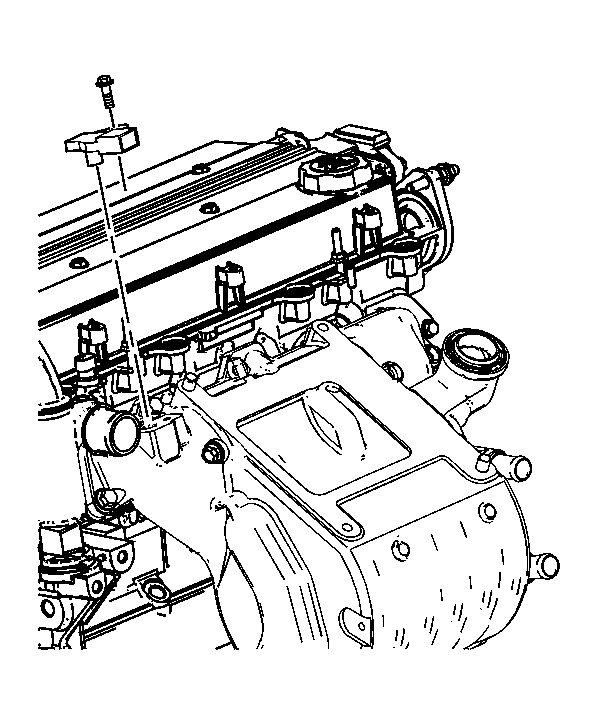

    Fig 1: View Of MAP Sensor
    GM1306516Courtesy of GENERAL MOTORS CORP.
    NOTE: Never attempt to remove the intake manifold from a hot engine, allow the engine to cool to ambient temperature. The intake manifold is made of a composite plastic and can be damaged if it is removed when the engine is hot.
  1. Remove the manifold absolute pressure (MAP) sensor.

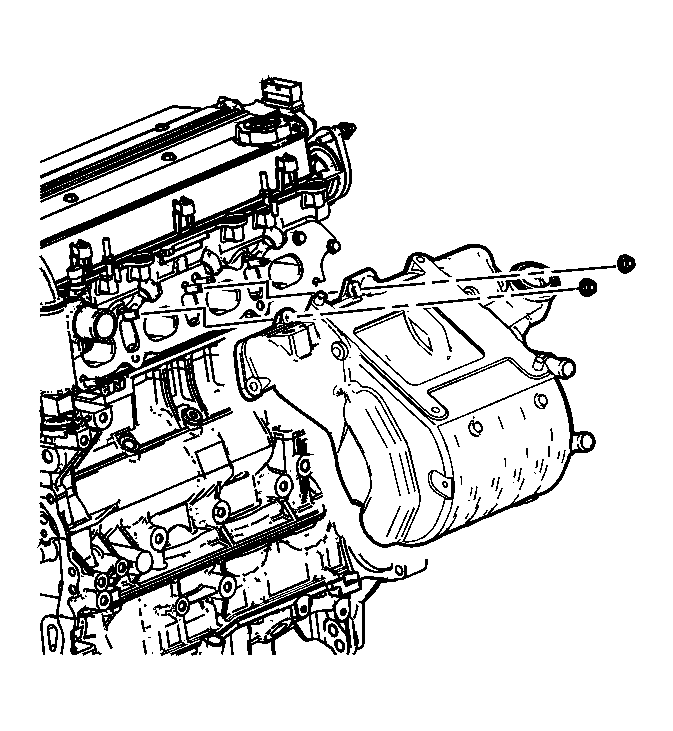

    2. Fig 2: View Of Intake Manifold
    GM1339178Courtesy of GENERAL MOTORS CORP.
  2. Remove the intake manifold retaining nuts and bolts.
  3. Remove the intake manifold.
  4. Remove the intake manifold gasket. Discard the gasket.
