Exhaust Manifold Removal

WARNING: This page is about a different variant/trim than selected.

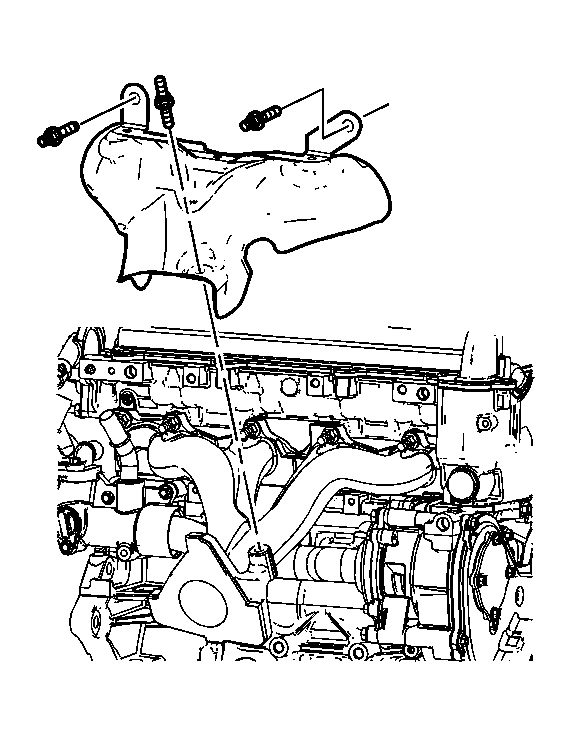

    Fig 1: View Of Exhaust Manifold Heat Shield
    GM1381505Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold heat shield.

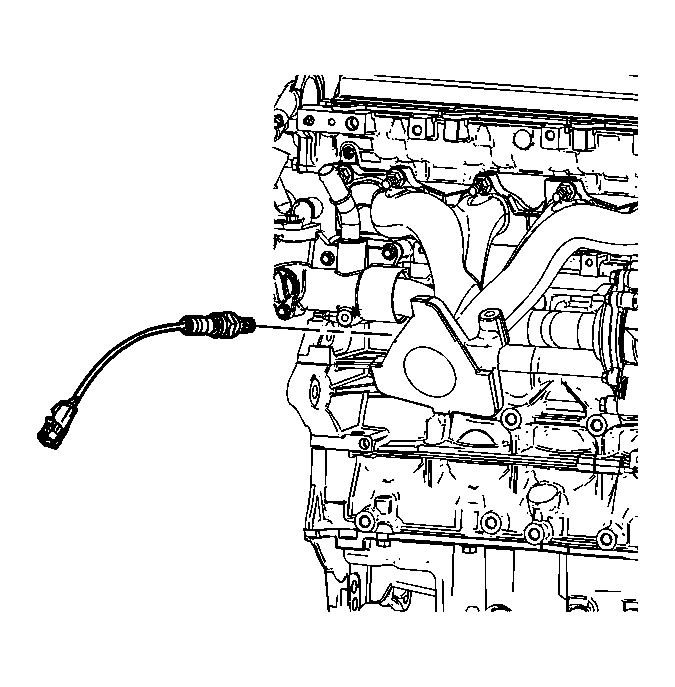

    2. Fig 2: View Of Oxygen Sensor
    GM1381506Courtesy of GENERAL MOTORS CORP.
  2. Remove the oxygen sensor.

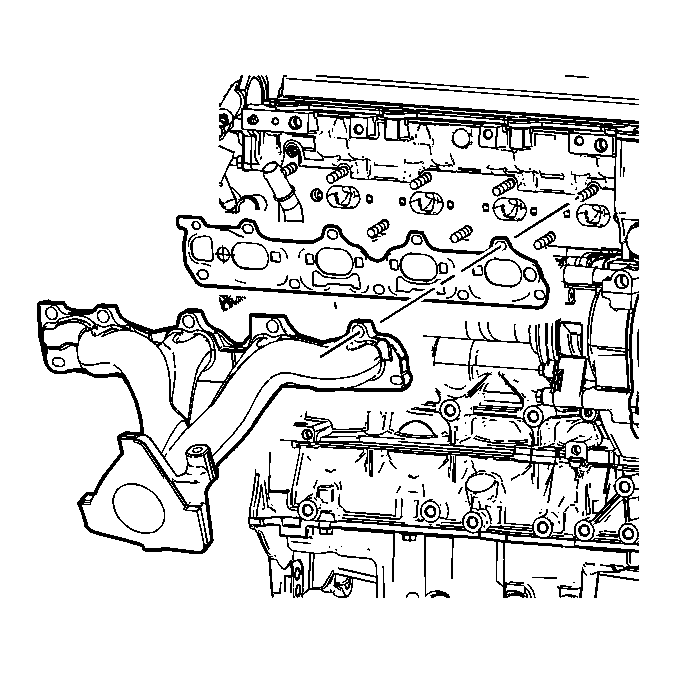

    3. Fig 3: View Of Exhaust Manifold
    GM1398727Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the exhaust manifold to cylinder head retaining nuts.
  4. Remove the exhaust manifold.
  5. Clean all of the sealing surfaces.
  6. If the exhaust manifold is being replaced, transfer the following parts:
    • The exhaust manifold heat shield
    • The oxygen sensor
