Engine Front Cover and Oil Pump Removal

WARNING: This page is about a different variant/trim than selected.

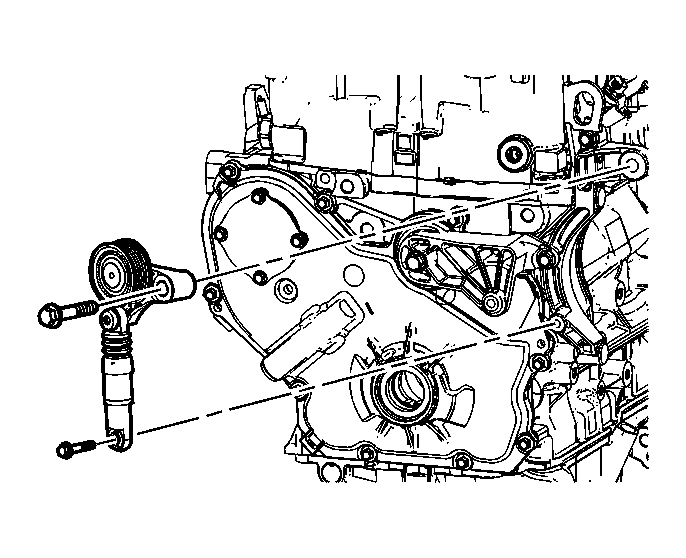

    Fig 1: Identifying Drive Belt Tensioner
    GM1381540Courtesy of GENERAL MOTORS CORP.
  1. Remove the accessory drive belt tensioner bolts.
  2. Remove the accessory drive belt tensioner.

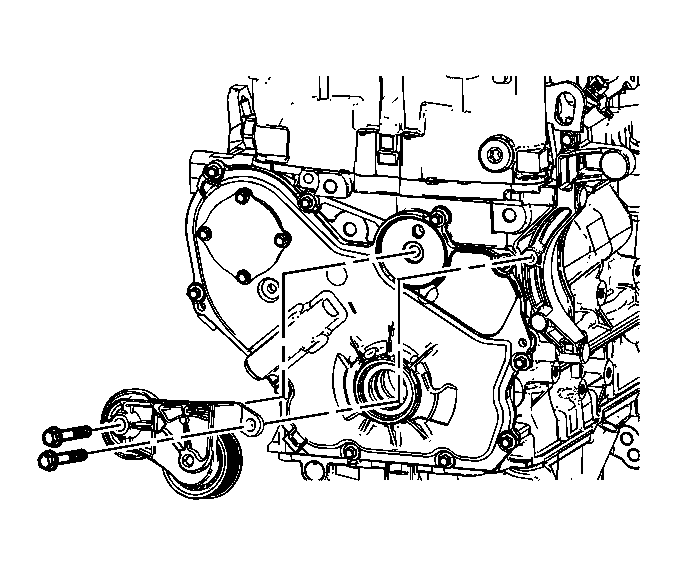

    3. Fig 2: View Of Idler Pulley
    GM1381542Courtesy of GENERAL MOTORS CORP.
  3. Remove the idler pulley bolts.
  4. Remove the idler pulley.

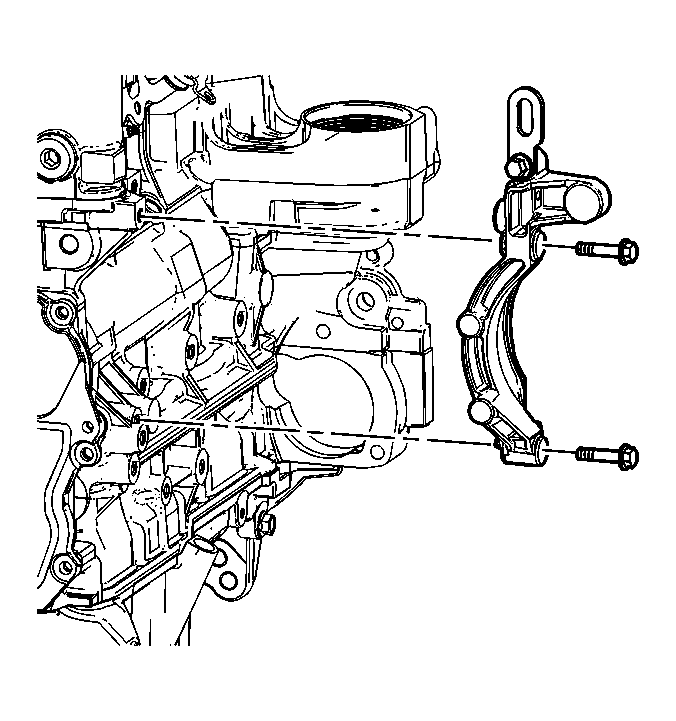

    5. Fig 3: View Of Bracket & Lift Hook Assembly
    GM1381544Courtesy of GENERAL MOTORS CORP.
  5. Remove the alternator bracket and lift hook assembly bolts.
  6. Remove the alternator bracket and lift hook assembly.
    7. Fig 4: View Of Engine Front Cover Bolts
    GM412538Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine front cover bolts.
    8. Fig 5: View Of Engine Front Cover
    GM412537Courtesy of GENERAL MOTORS CORP.
  8. Remove the long water pump bolt.
  9. Remove the engine front cover and gaskets.
  10. Remove the crankshaft front cover oil seal with an appropriate tool.
