Driver or Passenger Seat Horizontal Adjuster Cable Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

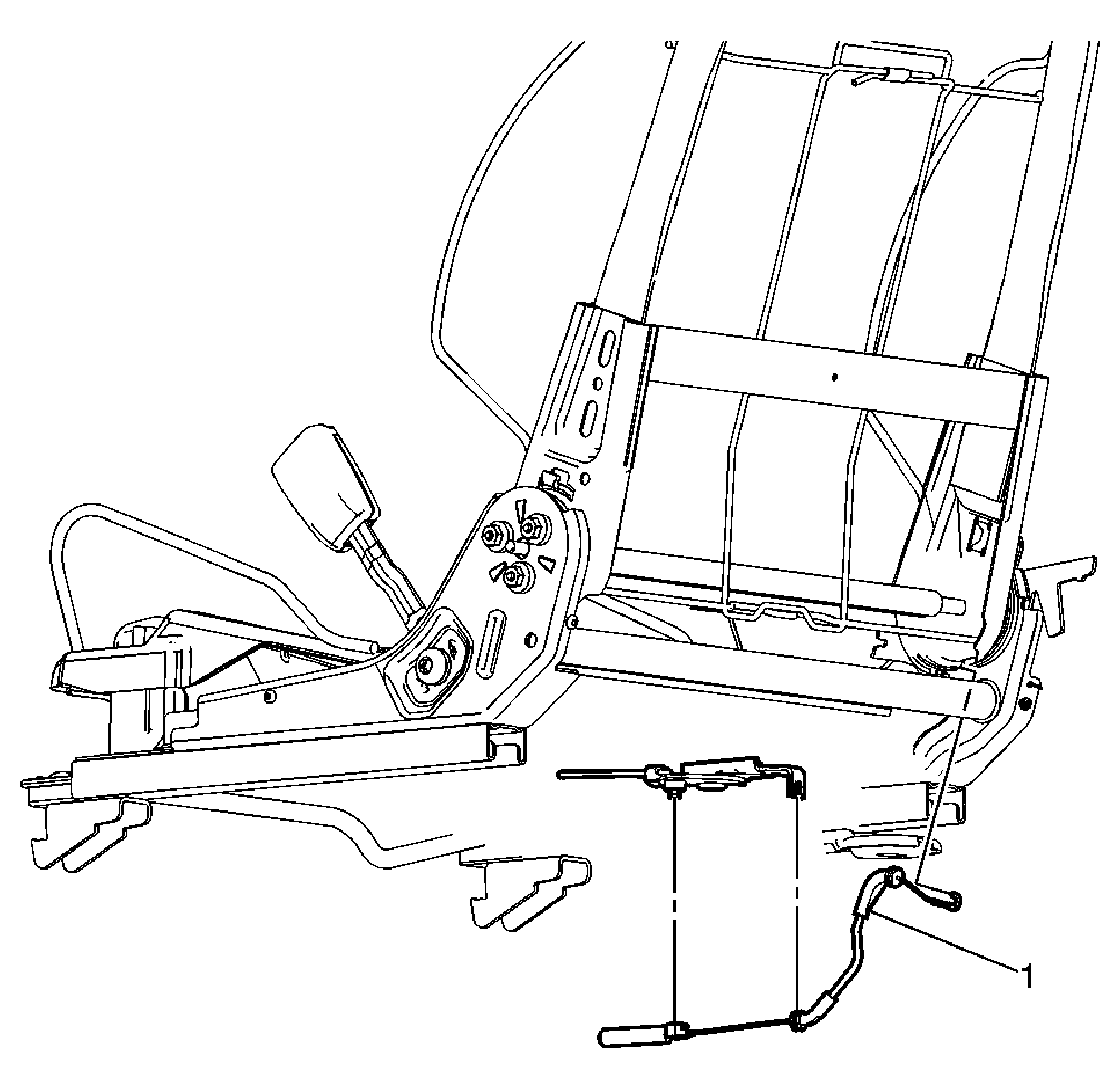

Fig 1: Identifying Driver Or Passenger Seat Horizontal Adjuster Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement . Remove the front seat back cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1	Passenger Seat Adjuster Cable Procedure Disconnect the upper portion of the adjuster cable at the outer recliner. Disconnect the lower portion of the adjuster cable from the bottom side of the seat as shown.

Callout

Component Name

Preliminary Procedure

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
Remove the front seat back cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .

Passenger Seat Adjuster Cable

Procedure

Disconnect the upper portion of the adjuster cable at the outer recliner.
Disconnect the lower portion of the adjuster cable from the bottom side of the seat as shown.
