Front Seat Adjuster Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

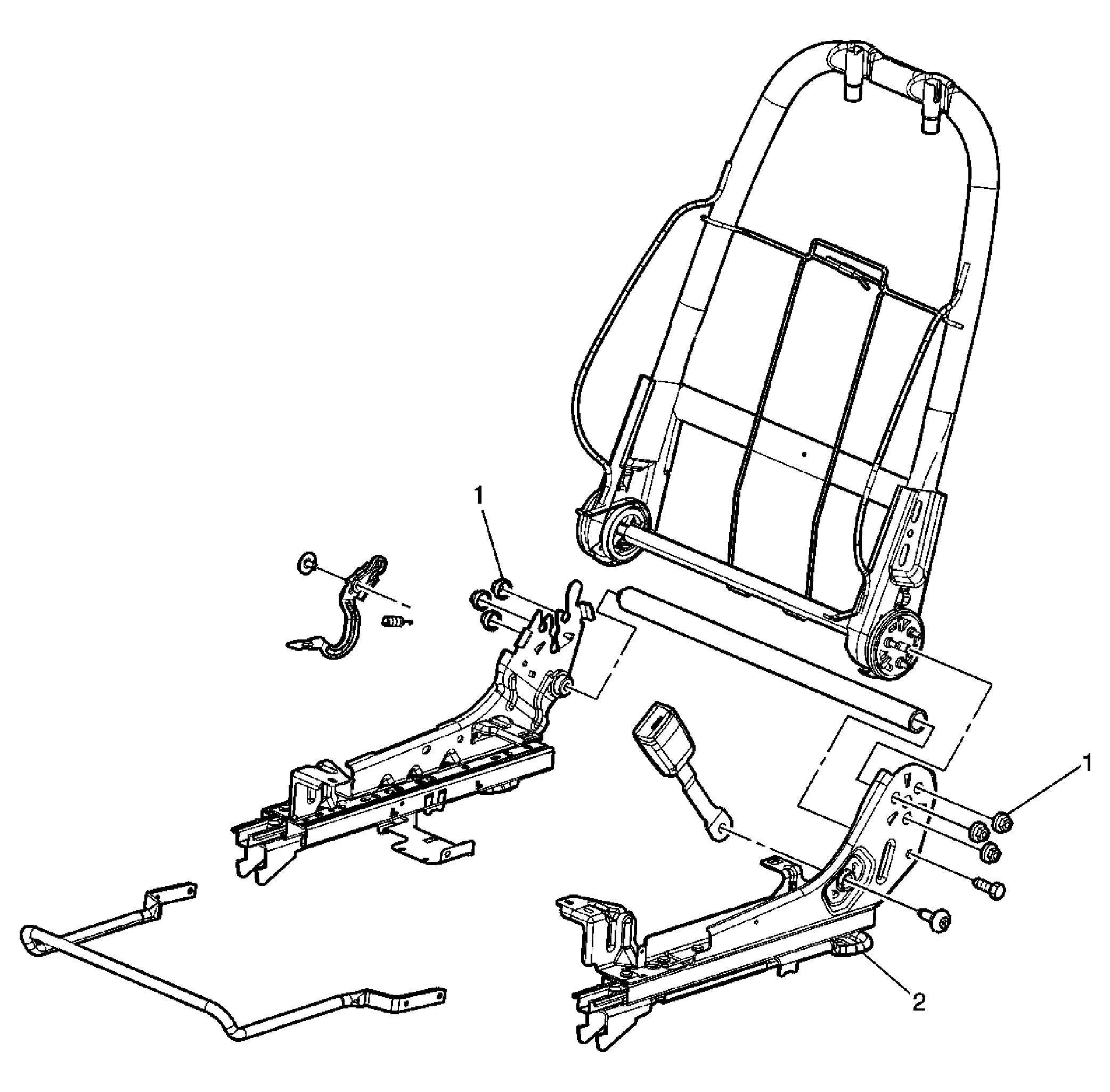

Fig 1: Identifying Seat Adjuster -- Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the cushion frame. Refer to Front Seat Cushion Frame Replacement . Unhook the lower attachments of the seat back cover and raise the cover enough to expose the recliner springs. Refer to Front Seat Back Cover and Cushion Pad Replacement . Align both recliner springs so that tension is held by the notch on the seat back frame. Ensure that the springs are completely seated in the notches before removing the adjuster support.
1	Seat Back Frame Nuts (Qty: 6) Tip: Remove the bolt in the adjuster support to separate the adjuster sides. Tighten: 20 N.m (14 lb ft)
2	Front Seat Adjuster Assembly

Callout

Component Name

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the cushion frame. Refer to Front Seat Cushion Frame Replacement .
Unhook the lower attachments of the seat back cover and raise the cover enough to expose the recliner springs. Refer to Front Seat Back Cover and Cushion Pad Replacement .
Align both recliner springs so that tension is held by the notch on the seat back frame. Ensure that the springs are completely seated in the notches before removing the adjuster support.

Seat Back Frame Nuts (Qty: 6)
Tip: Remove the bolt in the adjuster support to separate the adjuster sides.

Tighten: 20 N.m (14 lb ft)

Front Seat Adjuster Assembly
