Inspection Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

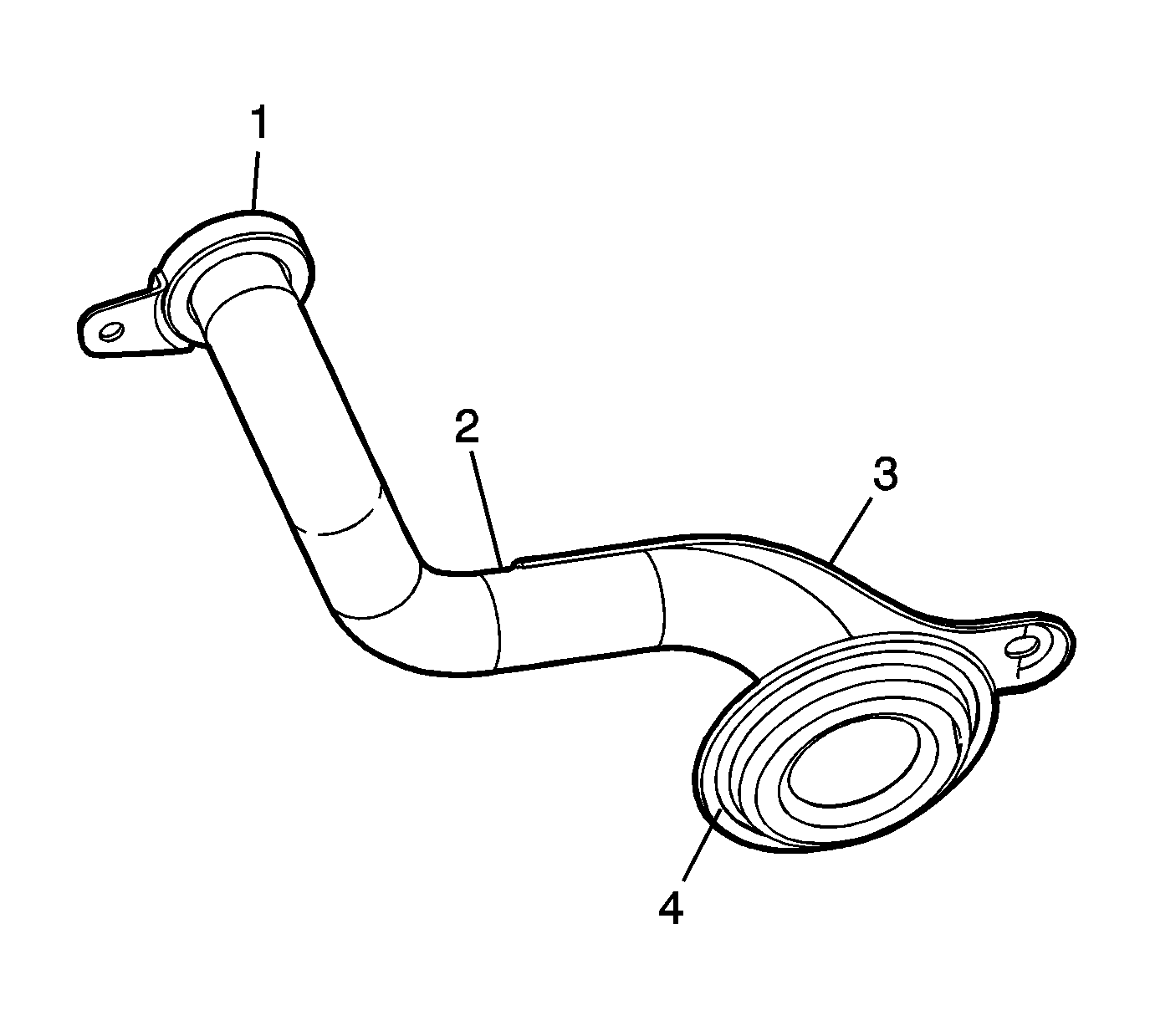

    Fig 1: Inspecting Oil Pump Pipe Tube
    GM1972818Courtesy of GENERAL MOTORS CORP.
  1. Inspect the mounting surface (1) for possible leakage paths.
  2. Inspect the oil pump pipe tube (2) for cracks, imperfections and/or damage.
  3. Inspect the oil pump pipe support bracket (3) for cracks or damage.
  4. Inspect the oil pump screen (4) for blockage, foreign material, tears, cracks and/or damage.
