Oil Pan Disassemble

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

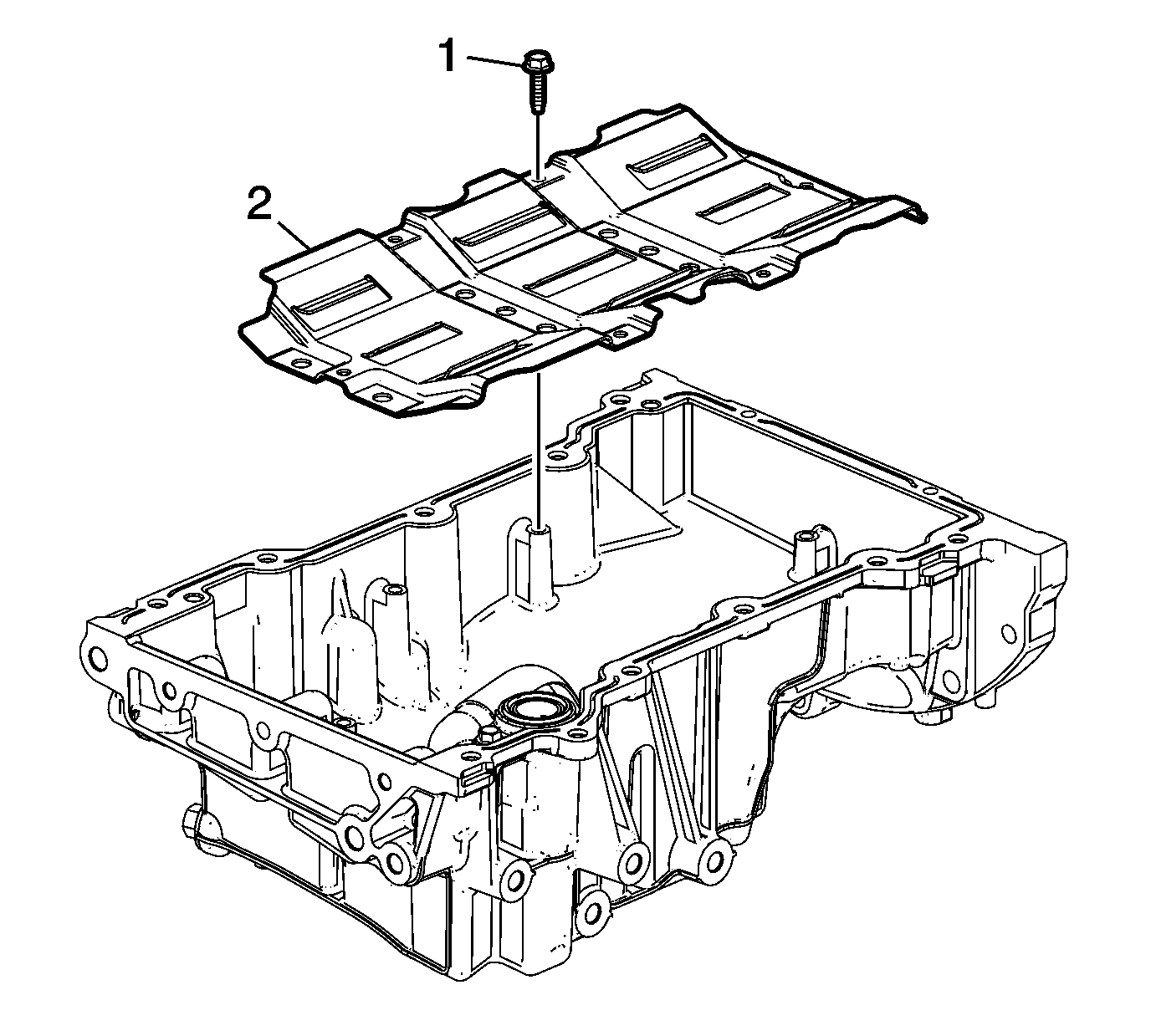

    Fig 1: Oil Pan Scraper & Bolts
    GM2202051Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan scraper bolts (1).
  2. Remove the oil pan scraper (2).

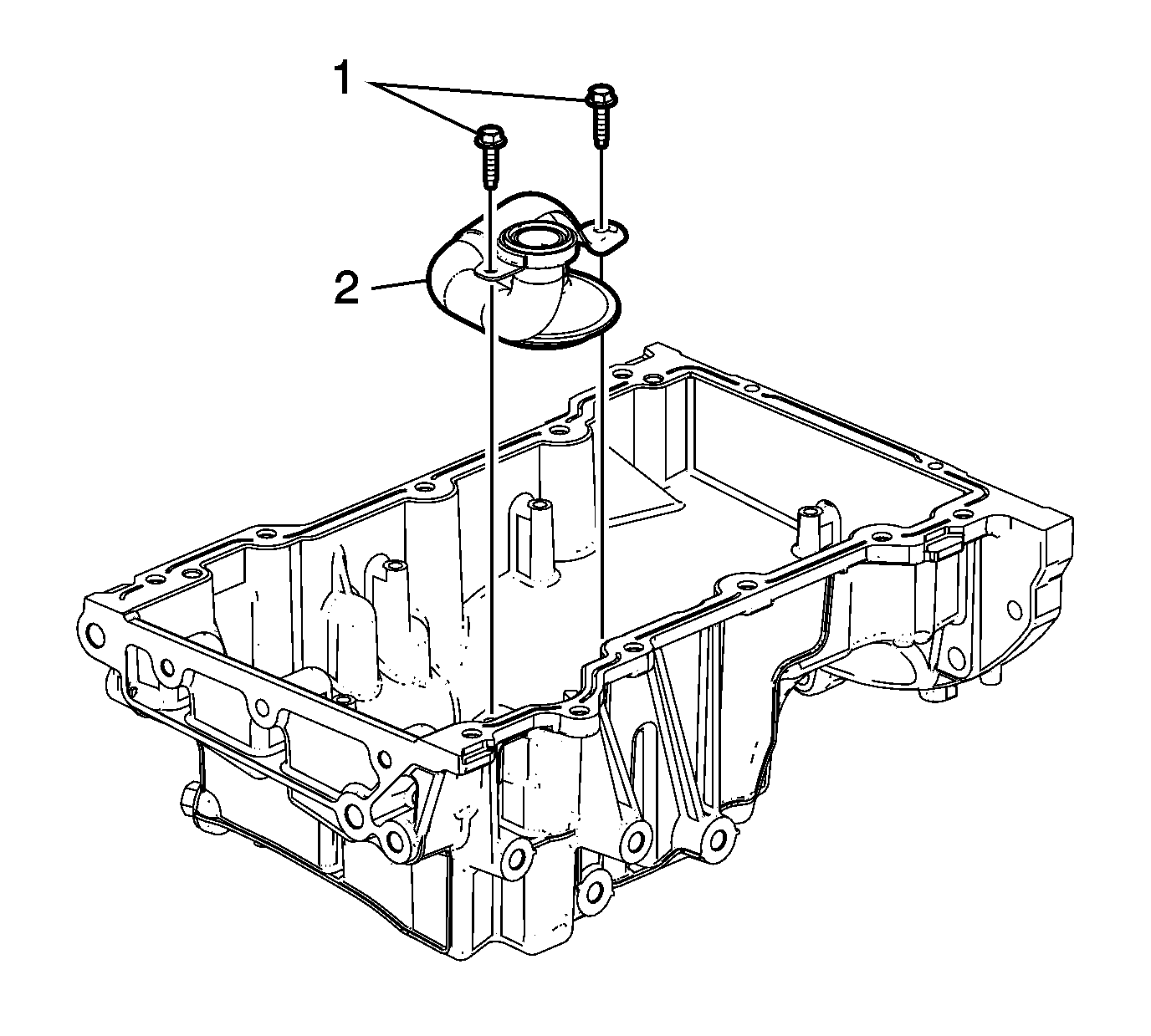

    3. Fig 2: Oil Suction Pipe & Bolts
    GM2202052Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil suction pipe bolts (1).
  4. Remove the oil suction pipe (2).

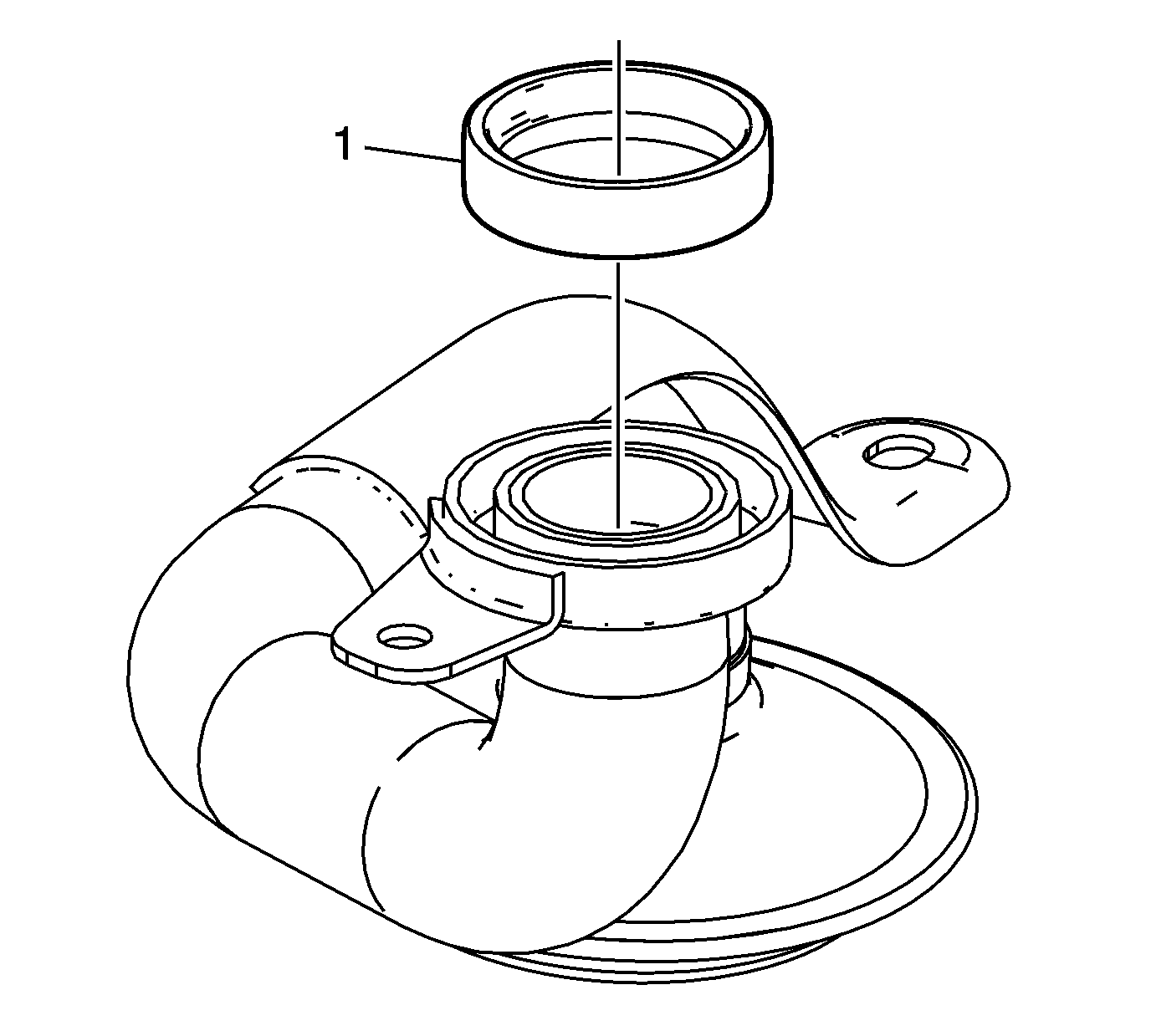

    5. Fig 3: Oil Suction Pipe O-Ring
    GM2202053Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil suction pipe O-ring (1).

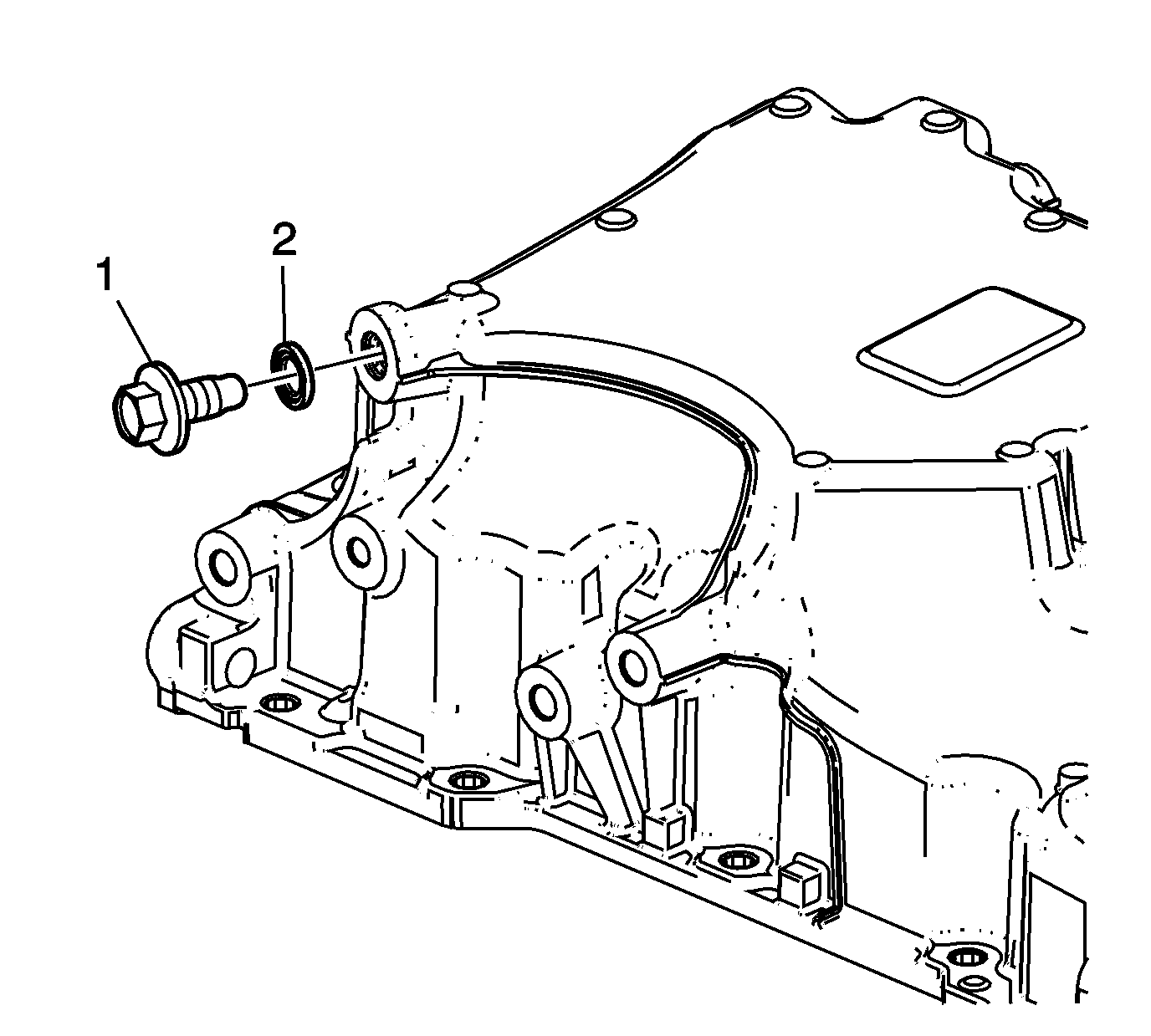

    6. Fig 4: Oil Pan Drain Plug & Seal
    GM2202054Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil pan drain plug (1) and seal (2).
