Inspection Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

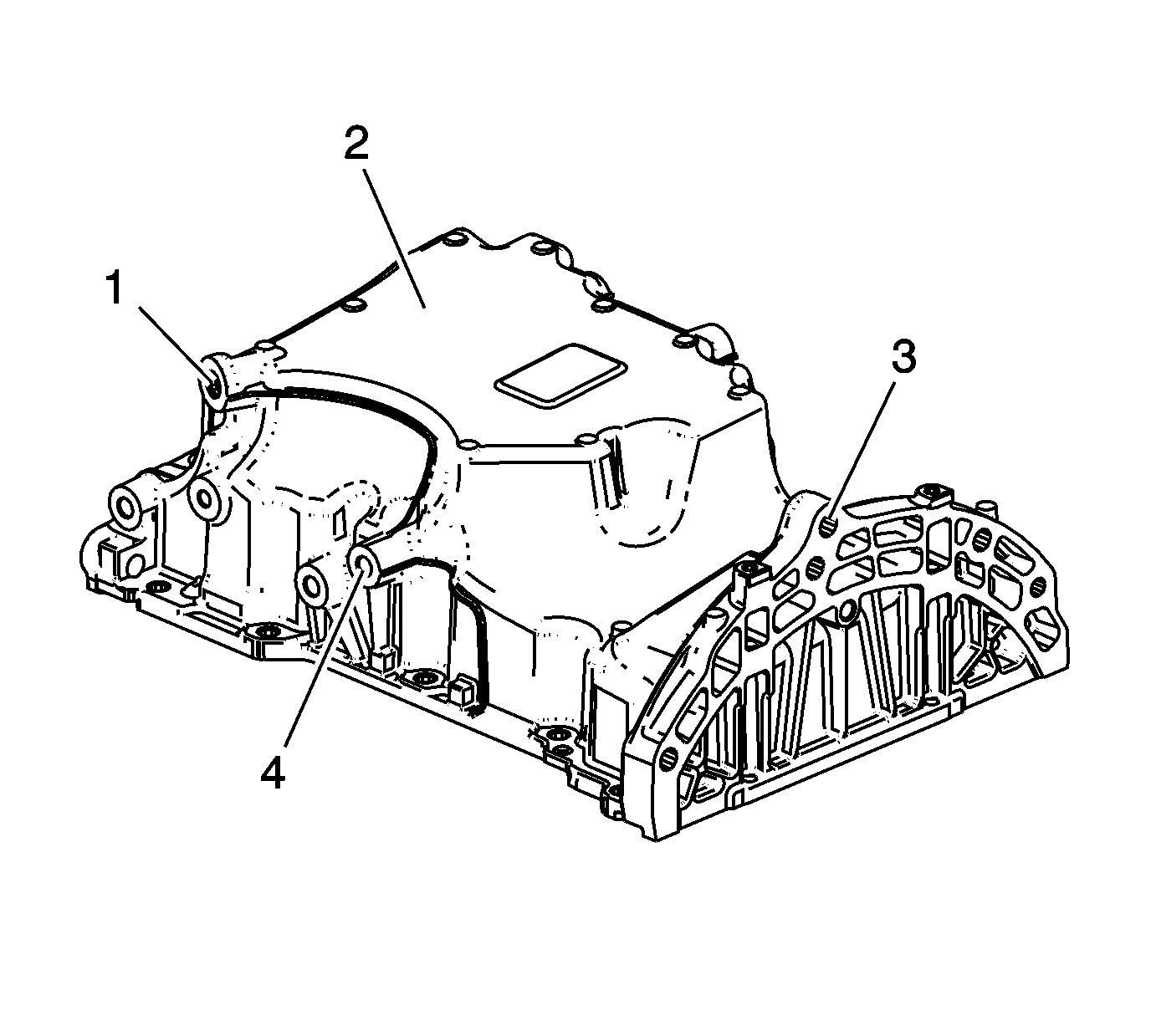

Fig 1: Exterior Of Oil Pan

Courtesy of GENERAL MOTORS CORP.

Inspect the exterior of the oil pan for the following conditions:
- Dents or damage to the exterior (2)
- Damage to the drain plug or drain plug hole (1)
- Damage to the transaxle brace mounting bosses (4)
- Damage to the transaxle mounting bosses (3)

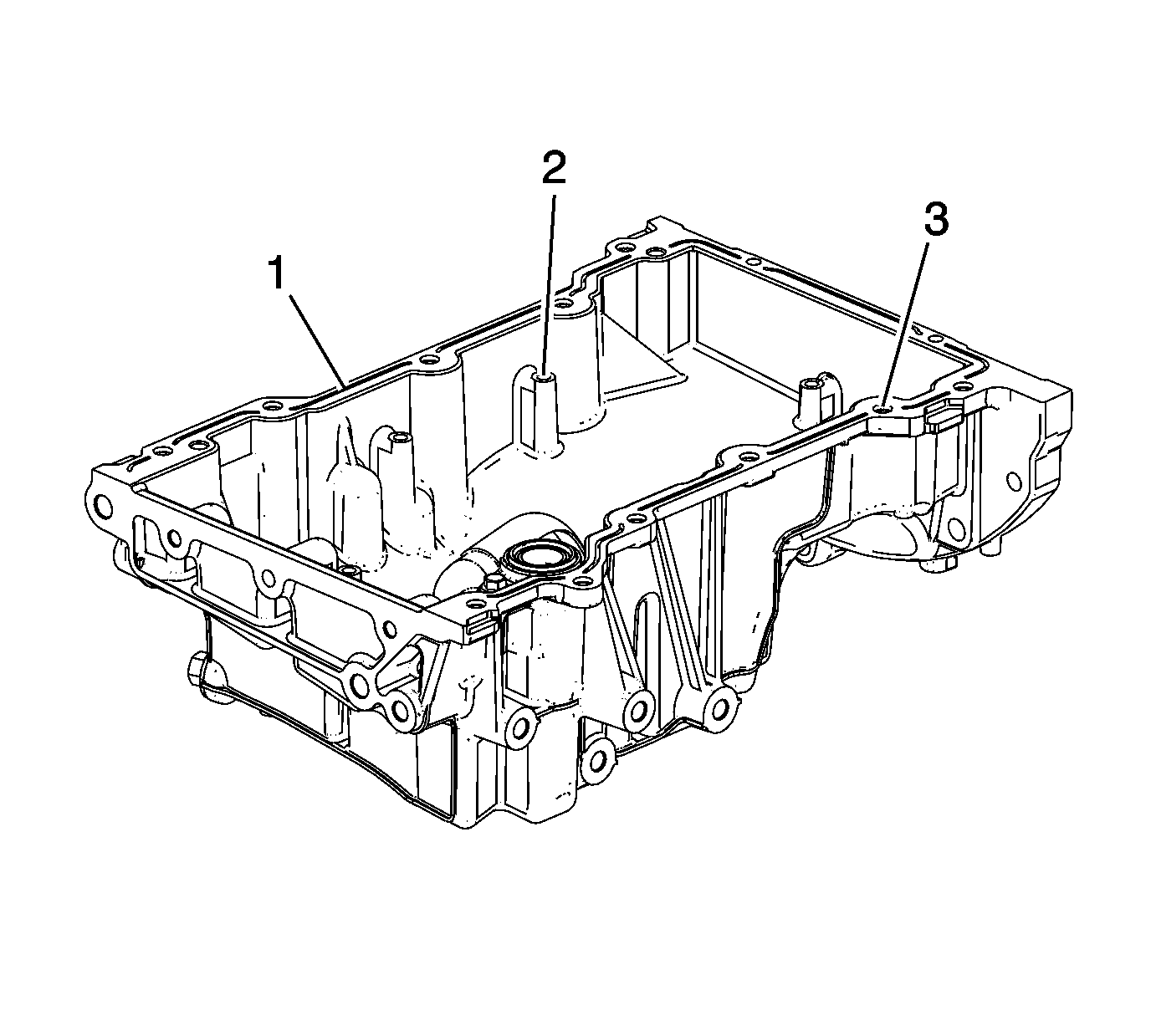

Fig 2: Interior Of Oil Pan

Courtesy of GENERAL MOTORS CORP.

Inspect the interior of the oil pan for the following conditions:
- Gouges or damage to the oil pan sealing surfaces (1)
- Damage to the oil pan scraper mounting holes (2)
- Damage to the bolt holes (3)
Repair or replace the oil pan and/or oil pan components as necessary.
