Installation Procedure

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Shift Cable & Grommet

Courtesy of GENERAL MOTORS CORP.

Install the shift cable through the cowl panel and seat the grommet.

Fig 2: View Of Transaxle Range Selector Cable

Courtesy of GENERAL MOTORS CORP.

Install the transmission range selector cable (1) to the shift control base.
Install the transmission range selector cable terminal (2) to the shift control pin.
Install the console trim plate. Refer to Front Floor Console Trim Plate Replacement .

Fig 3: View Of Transmission Range Selector Cable Terminal

Courtesy of GENERAL MOTORS CORP.

Install the transmission range selector cable (2) into the bracket.
Connect the transmission range selector cable terminal (1) to the transmission manual shift lever pin.

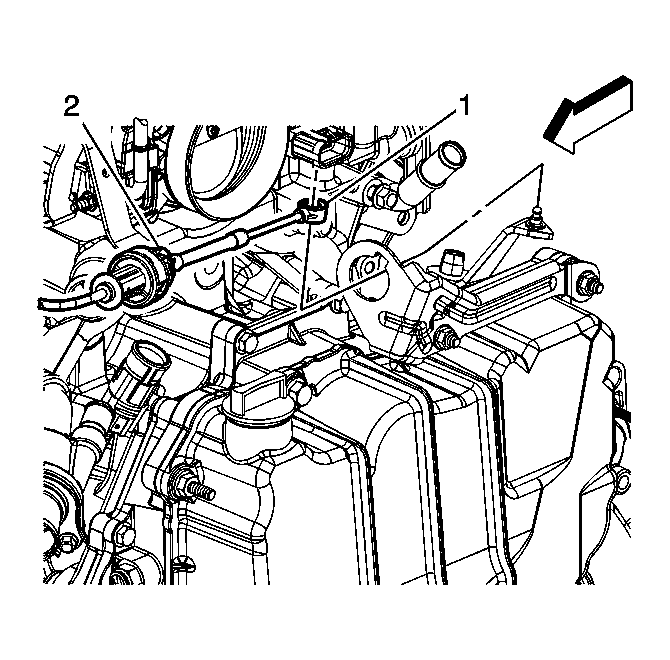

Fig 4: Identifying Manual Shift Lever & Shift Cable

Courtesy of GENERAL MOTORS CORP.

Install the range selector cable retainer (1).
Adjust the automatic transmission range selector cable. Refer to Range Selector Lever Cable Adjustment .
