Front Floor Console Trim Plate Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

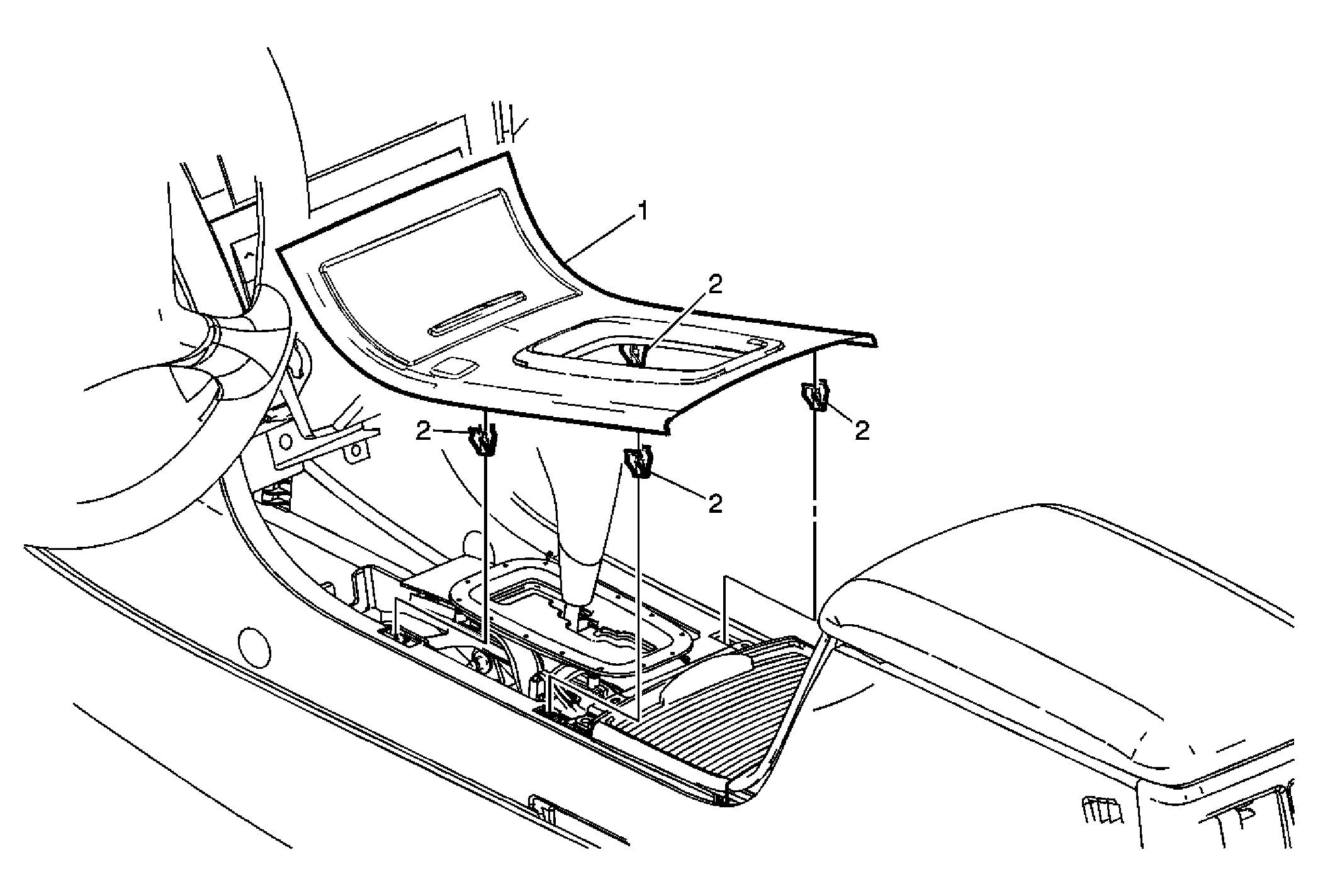

Fig 1: Trim Plate - Front Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate Assembly, Front Floor Console Tip: Use a flat-bladed plastic trim tool to lift the rear edge of the console trim plate. Disconnect the electrical connector.
2	Clip, Retainer (Qty: 4)
