Installation Procedure

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

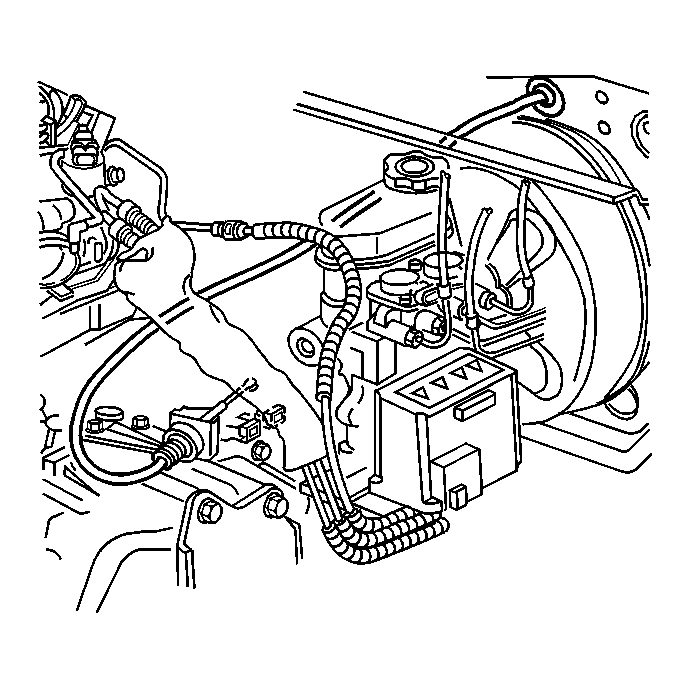

Fig 1: Illustrating Proper Routing Of Automatic Transaxle Range Selector Cable

Courtesy of GENERAL MOTORS CORP.

Properly route the range selector cable through the engine compartment.
Install the range selector cable through the cowl.

Fig 2: Identifying Range Selector Cable & Steering Column Bracket

Courtesy of GENERAL MOTORS CORP.

Install the range selector cable to the steering column bracket.

Fig 3: View Of Automatic Transaxle Range Selector Cable Retaining Clip

Courtesy of GENERAL MOTORS CORP.

Install the retaining clip to the range selector cable.
Install the range selector cable to the column control lever.
Install the left I/P closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

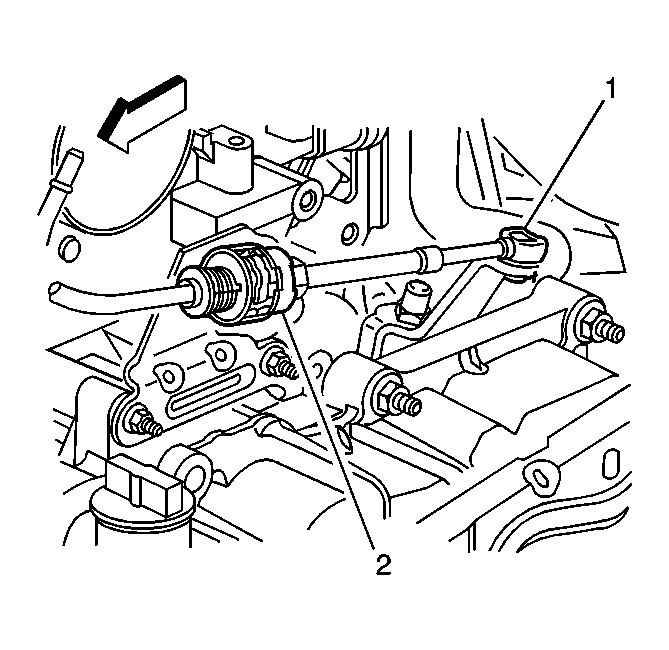

Fig 4: Identifying Manual Shift Lever & Shift Cable

Courtesy of GENERAL MOTORS CORP.

Install the transaxle range selector cable (2) into the bracket.
Connect the transaxle range selector cable terminal (1) to the transaxle manual shift lever pin.
Adjust the range selector cable. Refer to Range Selector Lever Cable Adjustment .
