Instrument Panel Insulator Panel Replacement - Left Side

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

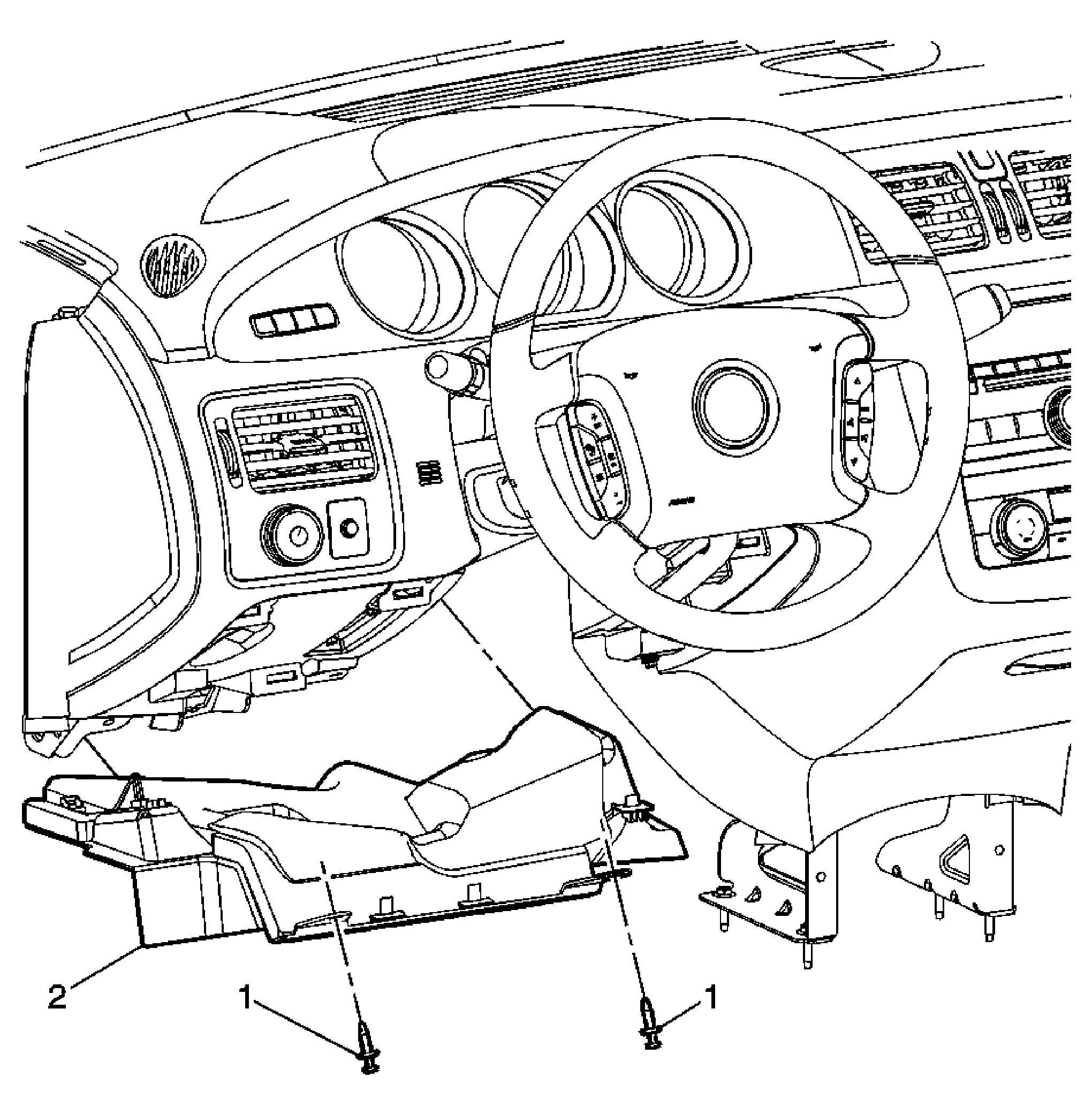

Fig 1: Locating Left Side Insulator Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the knee bolster. Refer to Driver Knee Bolster Replacement .
1	Push Pin Retainers (Qty: 2)
2	Instrument Panel Insulator Assembly
