Module Replacement - Seat Climate Control - Front Seat

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

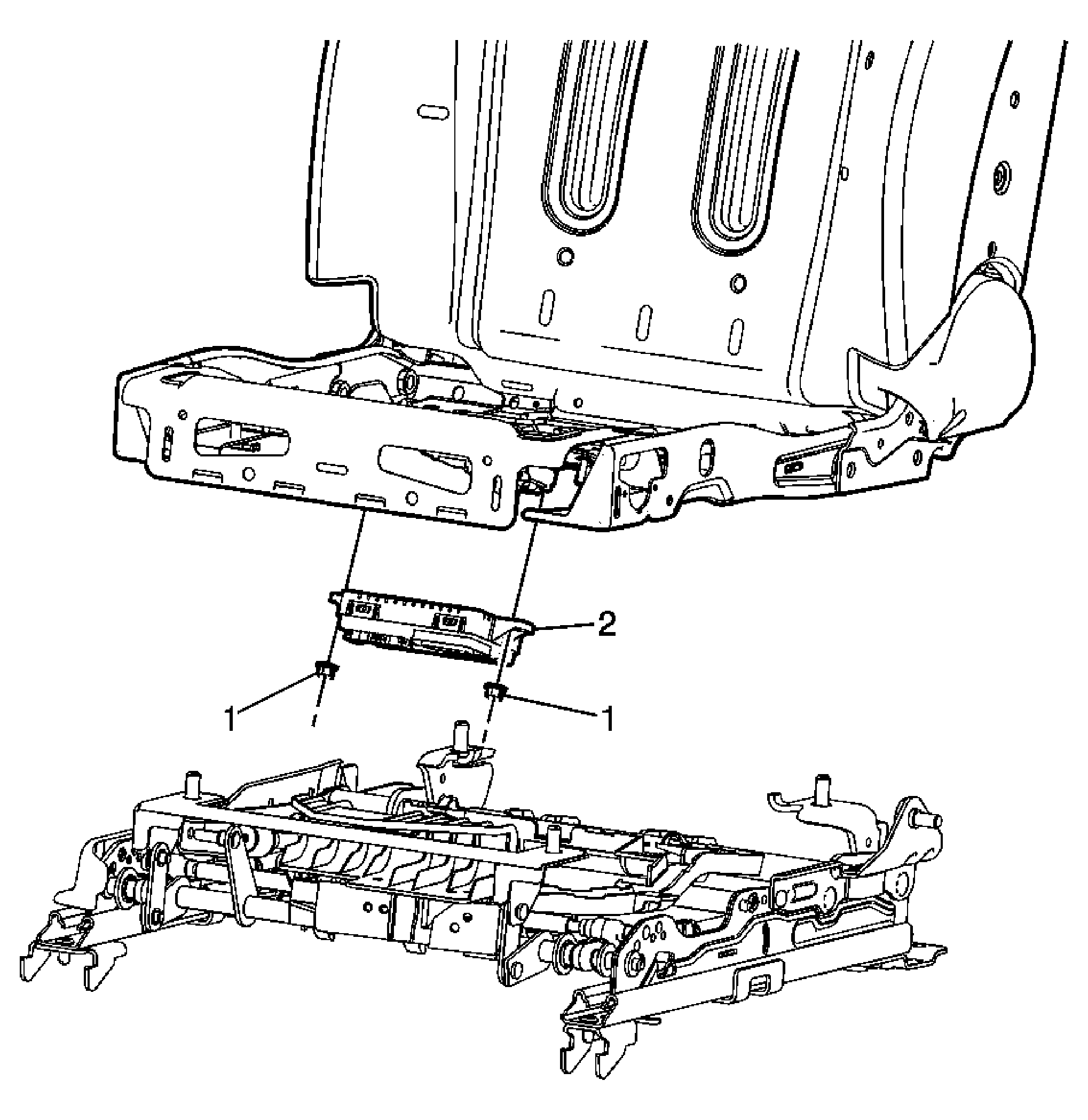

Fig 1: Locating Front Seat Climate Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Driver or Passenger Seat Replacement . Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement . Remove the seat adjuster. Refer to Front Seat Adjuster Replacement .
1	Front Seat Heat and Cool Module Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (25 lb in)
2	Front Seat Heat and Cool Module Tip: Disconnect the electrical connector and remove from the bracket. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seat. Refer to Driver or Passenger Seat Replacement .
Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .
Remove the seat adjuster. Refer to Front Seat Adjuster Replacement .

Front Seat Heat and Cool Module Nut (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (25 lb in)

Front Seat Heat and Cool Module
Tip:

Disconnect the electrical connector and remove from the bracket.
Refer to Control Module References for programming and setup information.
