Driver or Passenger Seat Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

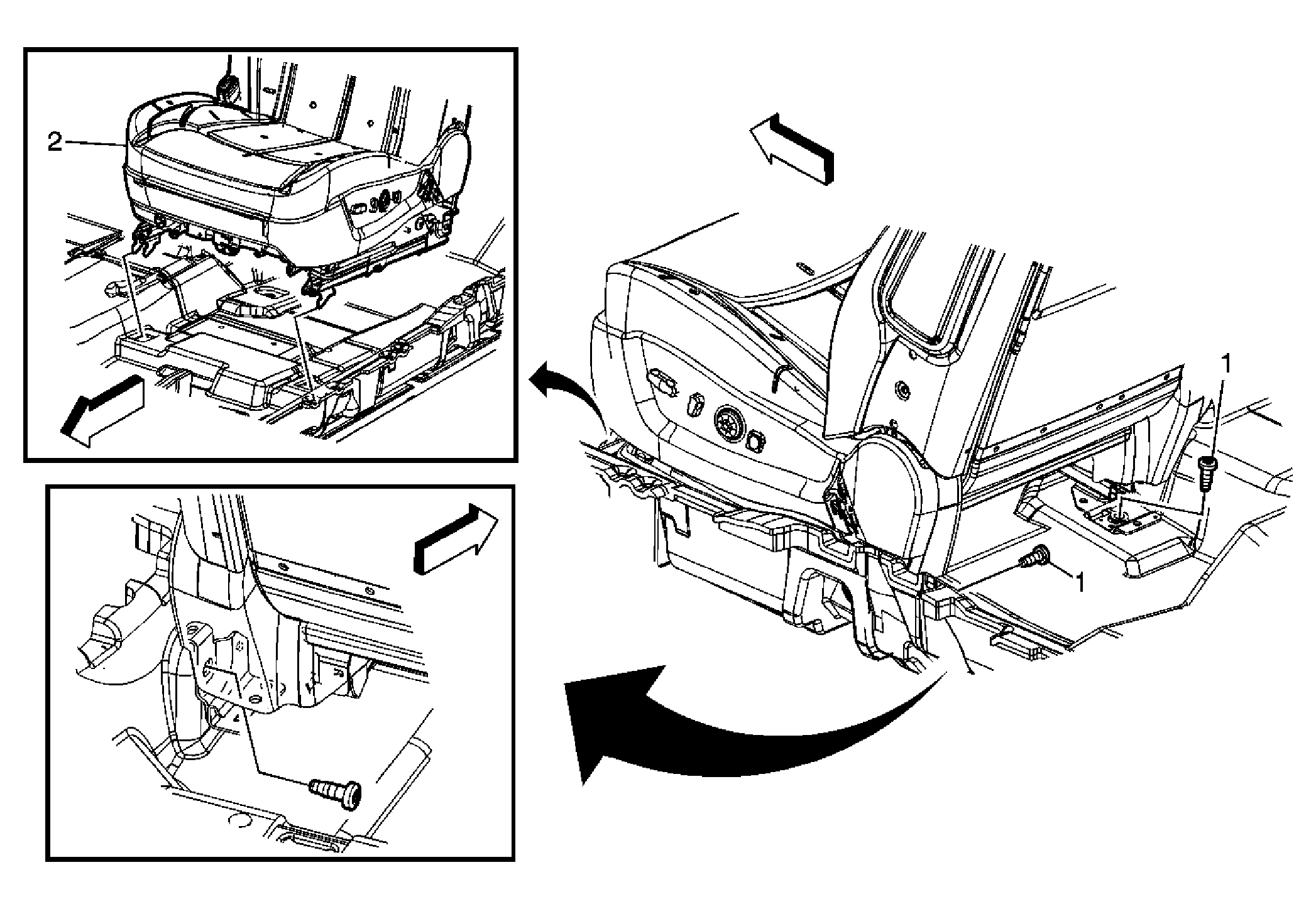

Fig 1: Seat Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat adjuster covers. Refer to Front Seat Adjuster Track Finish Cover Replacement . Disconnect the seat belt from the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1	Bolt, Front Seat Assembly (Qty: 2) Tighten: 45 N.m (33 lb ft)
2	Seat Assembly Tip: Disconnect the electrical connectors.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seat adjuster covers. Refer to Front Seat Adjuster Track Finish Cover Replacement .
Disconnect the seat belt from the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front .

Bolt, Front Seat Assembly (Qty: 2)

Tighten: 45 N.m (33 lb ft)

Seat Assembly
Tip: Disconnect the electrical connectors.
