Instrument Cluster Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

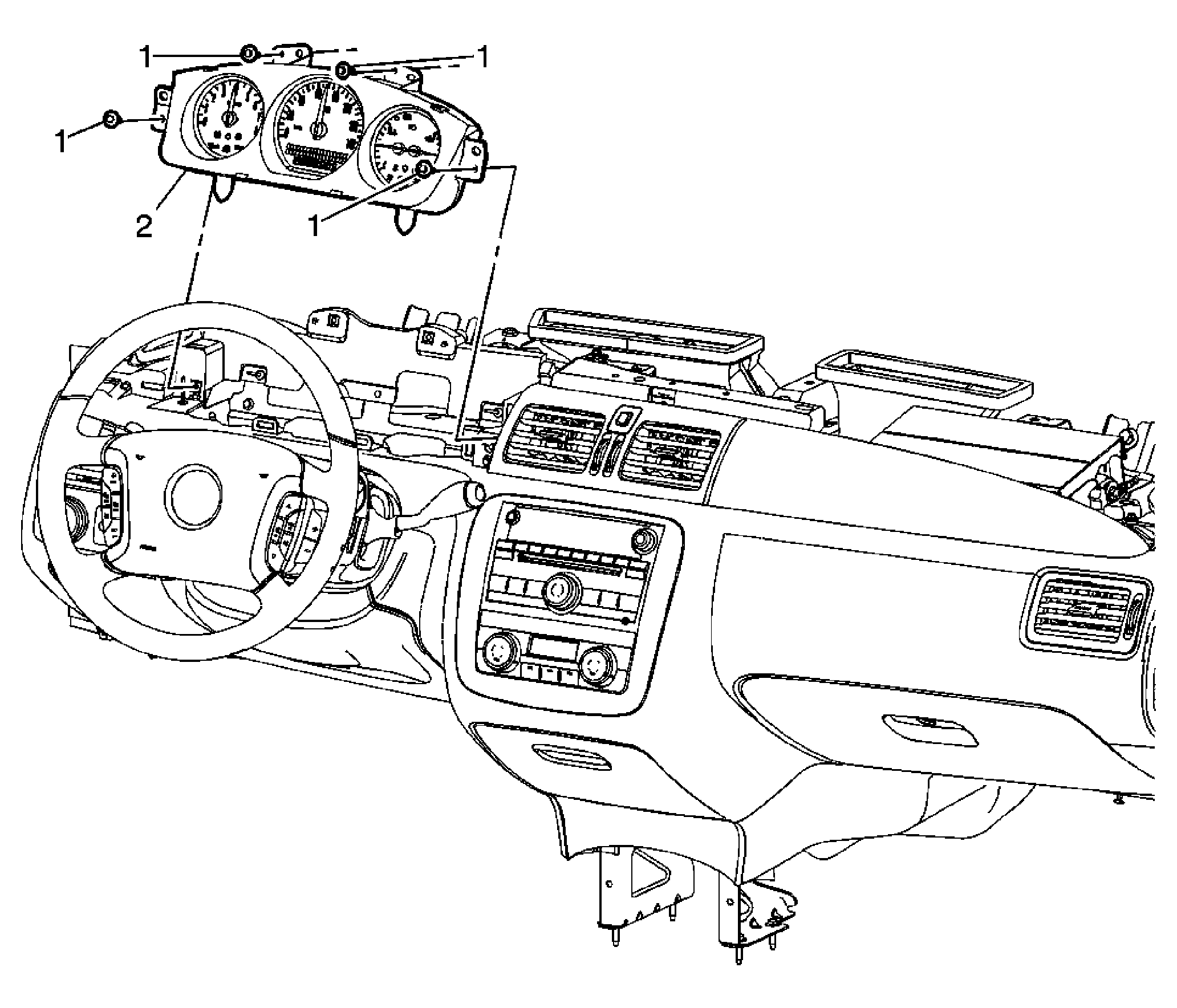

Fig 1: Identifying Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
1	Instrument Panel Cluster Assembly Screws (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Tip: Disconnect the electrical connection. Refer to Control Module References for programming and setup information.
