Instrument Panel Cluster Trim Plate Bezel Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

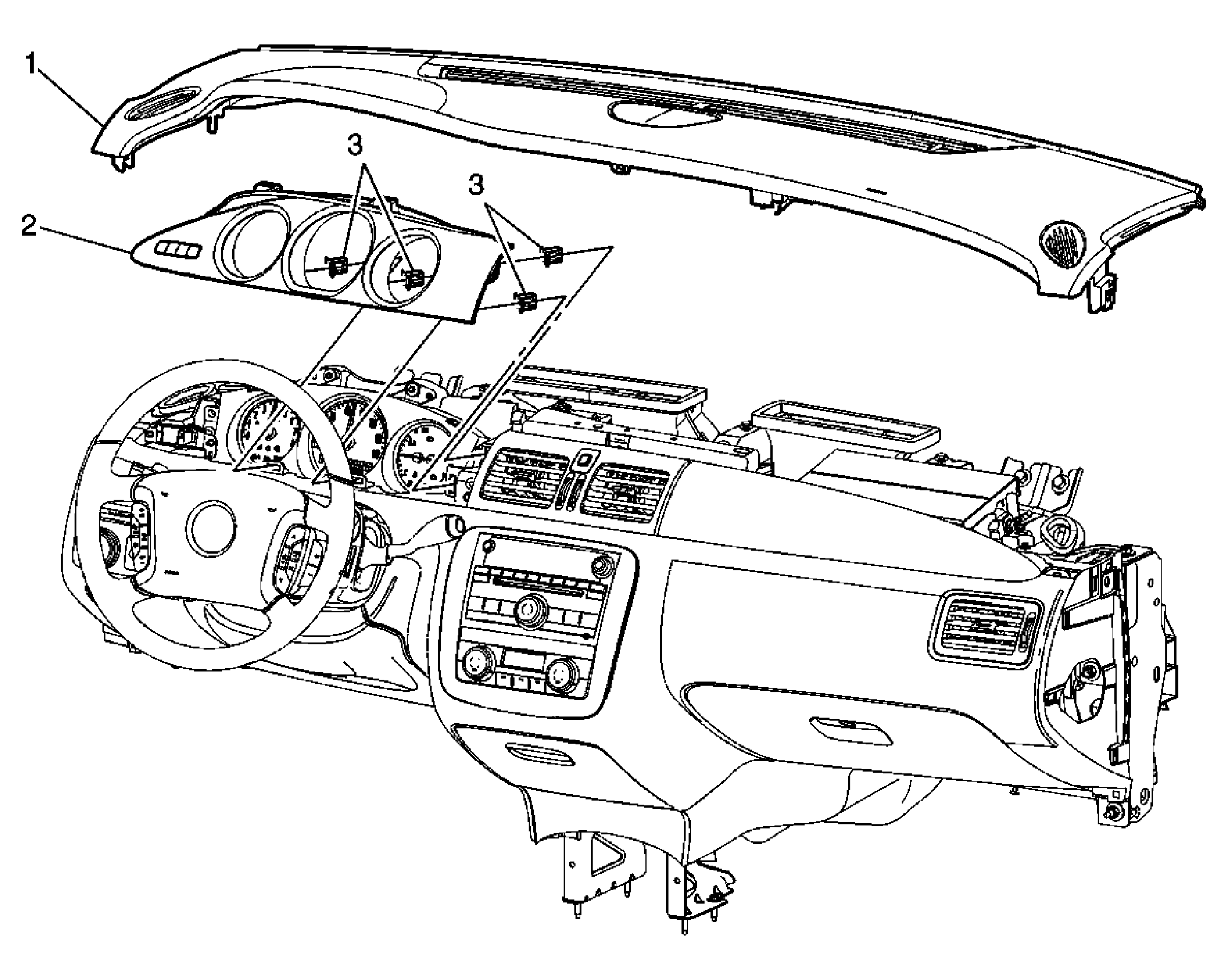

Fig 1: Identifying Instrument Panel Cluster Trim Plate Bezel
GM1656503Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Upper Trim Pad
Refer to Instrument Panel Upper Trim Pad Replacement .
2 Instrument Panel Cluster Trim Plate Bezel.
Tip:  Disconnect the electrical connectors.
3 Retainer Clips (Qty: 4)
