Front Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

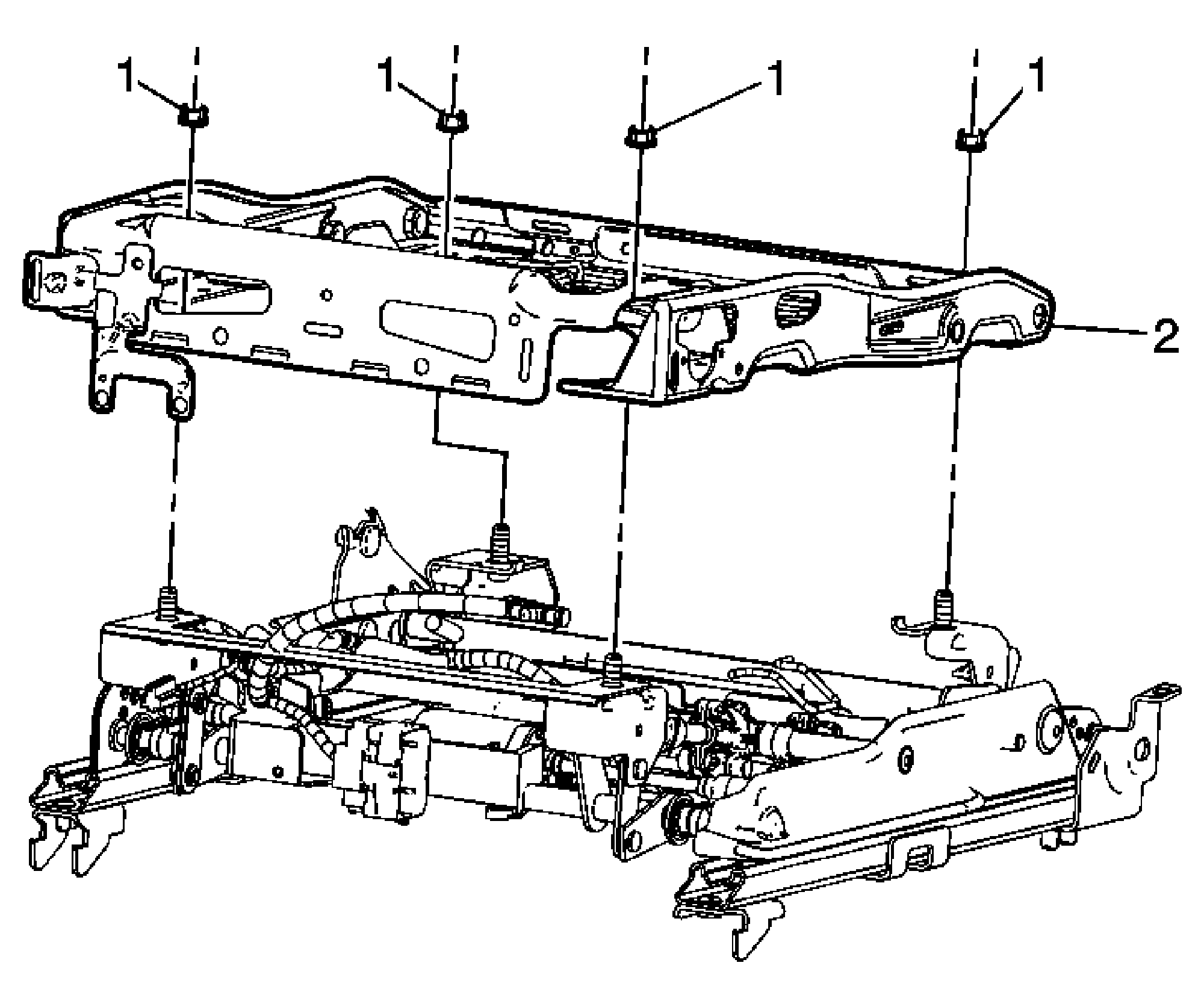

Fig 1: Front Seat Cushion Frame Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Driver or Passenger Seat Replacement . Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement . Remove the passenger presence system on the passenger seat. Refer to Inflatable Restraint Passenger Presence System Replacement - Front .
1	Nut, Seat Cushion Frame (Qty: 4) Tighten: 9 N.m (80 lb in)
2	Frame, Seat Cushion

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seat. Refer to Driver or Passenger Seat Replacement .
Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .
Remove the passenger presence system on the passenger seat. Refer to Inflatable Restraint Passenger Presence System Replacement - Front .

Nut, Seat Cushion Frame (Qty: 4)

Tighten: 9 N.m (80 lb in)

Frame, Seat Cushion
