Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

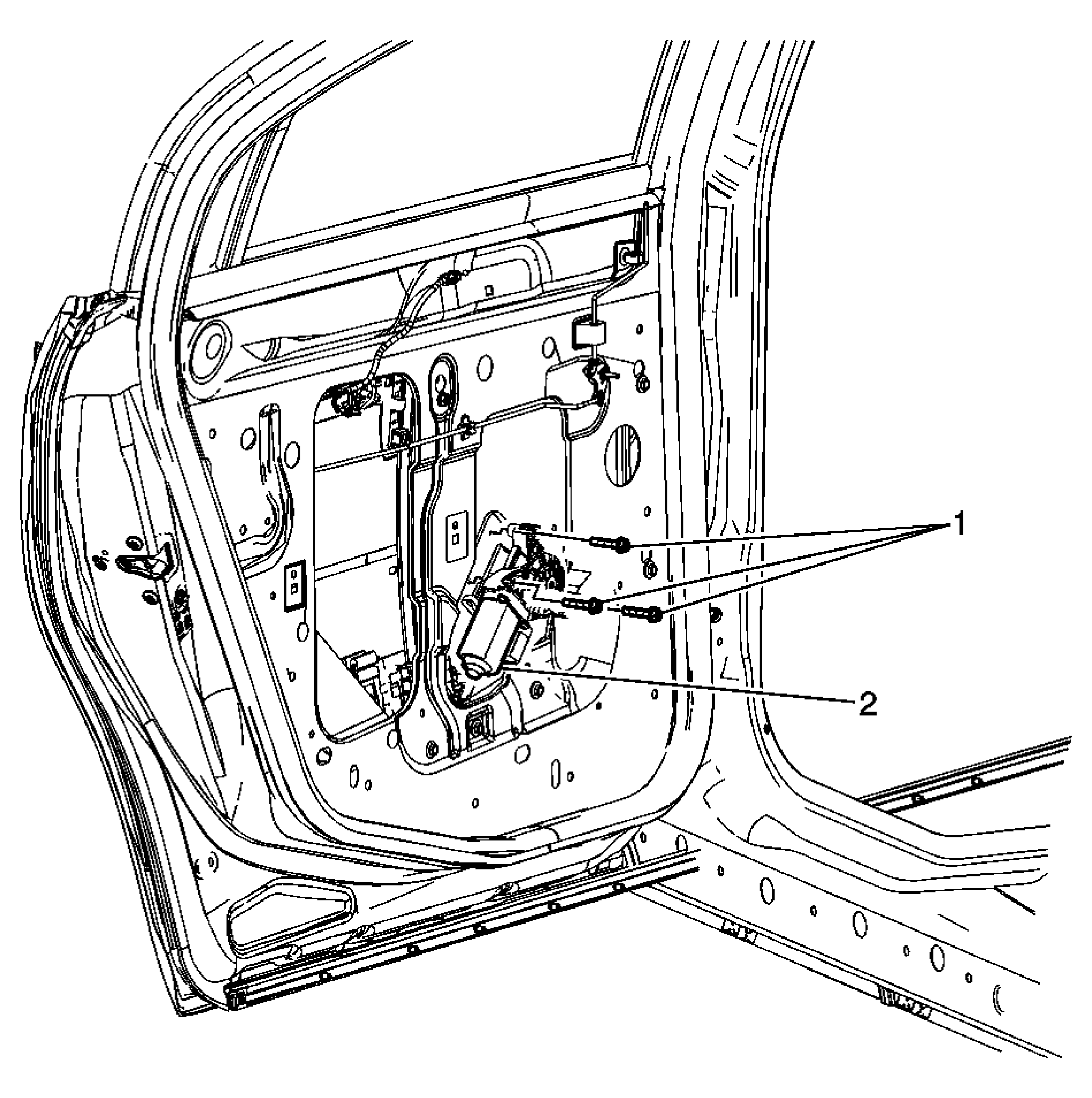

Fig 1: Locating Rear Side Door Window Regulator Motor Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Door Window Motor Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 4.6 N.m (41 lb in)
2	Rear Door Window Motor Procedure Disconnect the electrical connector. Rotate the regulator as necessary to remove from the door. Install the power window motor. Refer to Window Regulator Motor Programming and Setup .

Callout

Component Name

Preliminary Procedures

Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

Rear Door Window Motor Bolt (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 4.6 N.m (41 lb in)

Rear Door Window Motor

Procedure

Disconnect the electrical connector.
Rotate the regulator as necessary to remove from the door.
Install the power window motor. Refer to Window Regulator Motor Programming and Setup .
