Rear Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

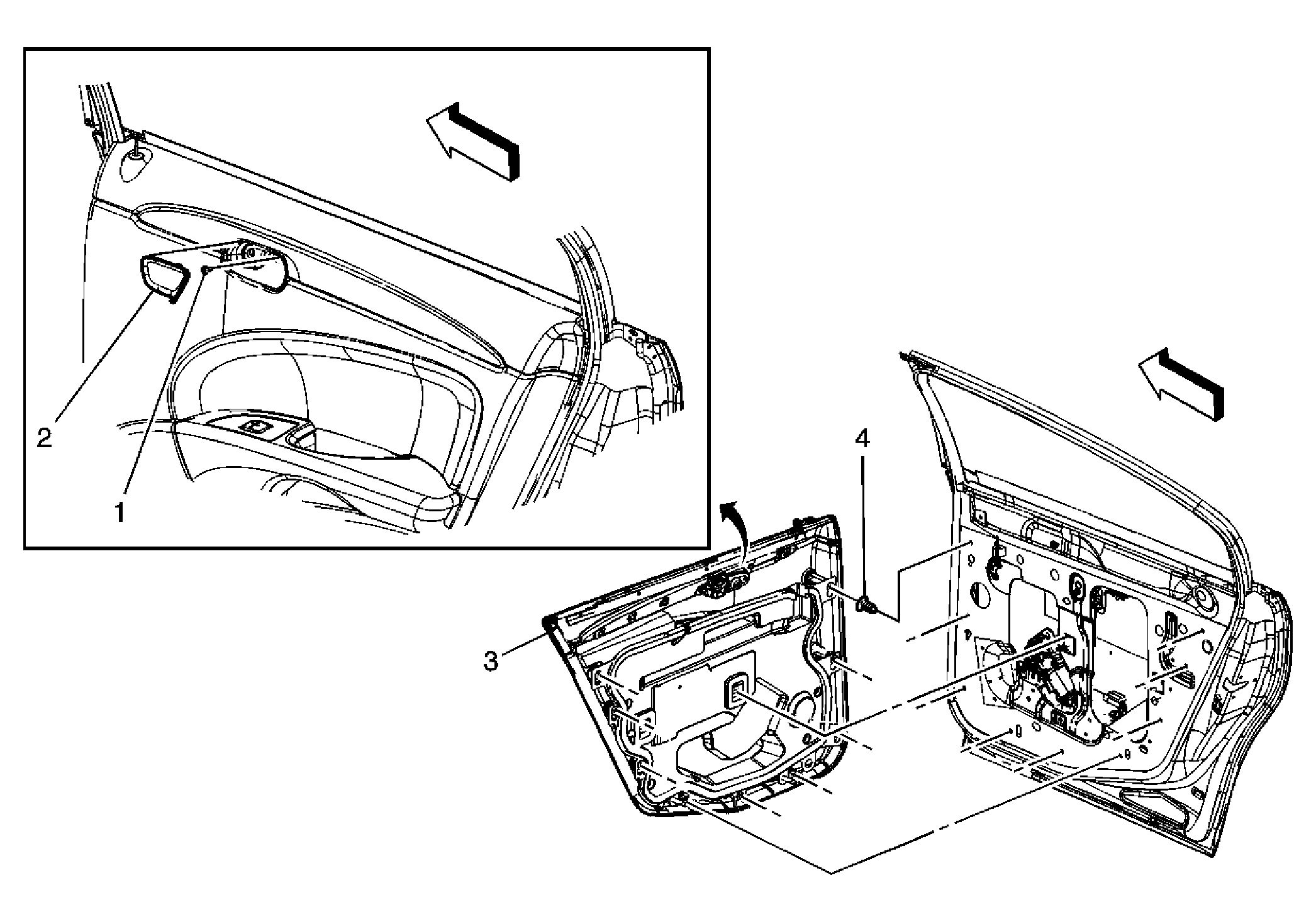

Fig 1: Trim Panel Replacement - Side Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Side Door Inside Handle Bezel Cover
2	Rear Side Door Inside Handle Screw Tighten: 3 N.m (25 lb in)
3	Rear Side Door Trim Panel Tip: Use a J 38778 Door Trim Pad Clip Remover to aid in the removal of the side door trim panel. After releasing all the retainers along the outer perimeter of the door trim panel, hold the panel away from the door and lift up on the panel to disengage the 2 clips that anchor the armrest into the door sheet metal. Disconnect the inside door handle linkage. Disconnect the electrical connectors.
4	Door Trim Panel Retainer (Qty: 9)
