Console Trim Panel Replacement - Right
Console Trim Panel Replacement - Right

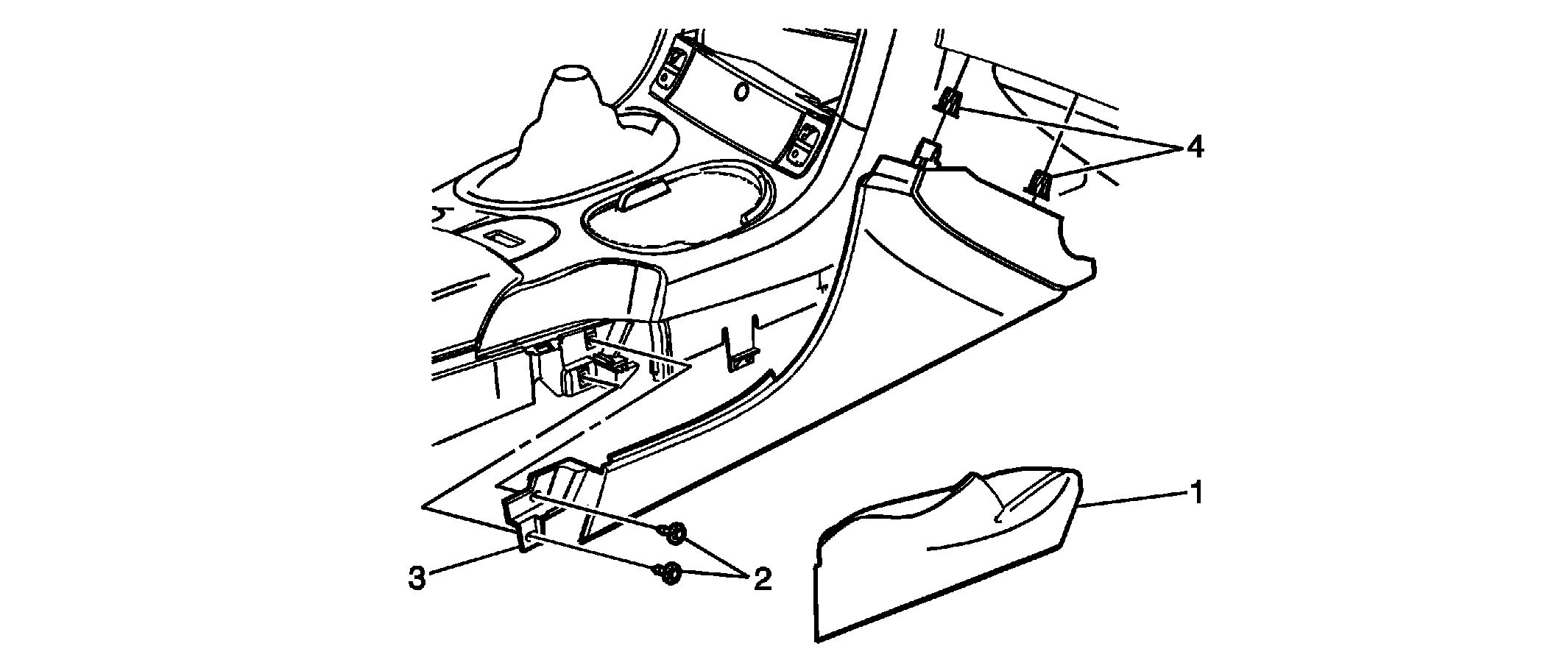

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory . |
|
| 1 | Emergency Brake Lever Bezel |
| 2 | Console Trim Panel Screws (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 3 | Console Trim Panel |
| 4 | Console Trim Panel Clip (Qty: 2) |
