Trim Plate Replacement - Instrument Panel (I/P) Accessory

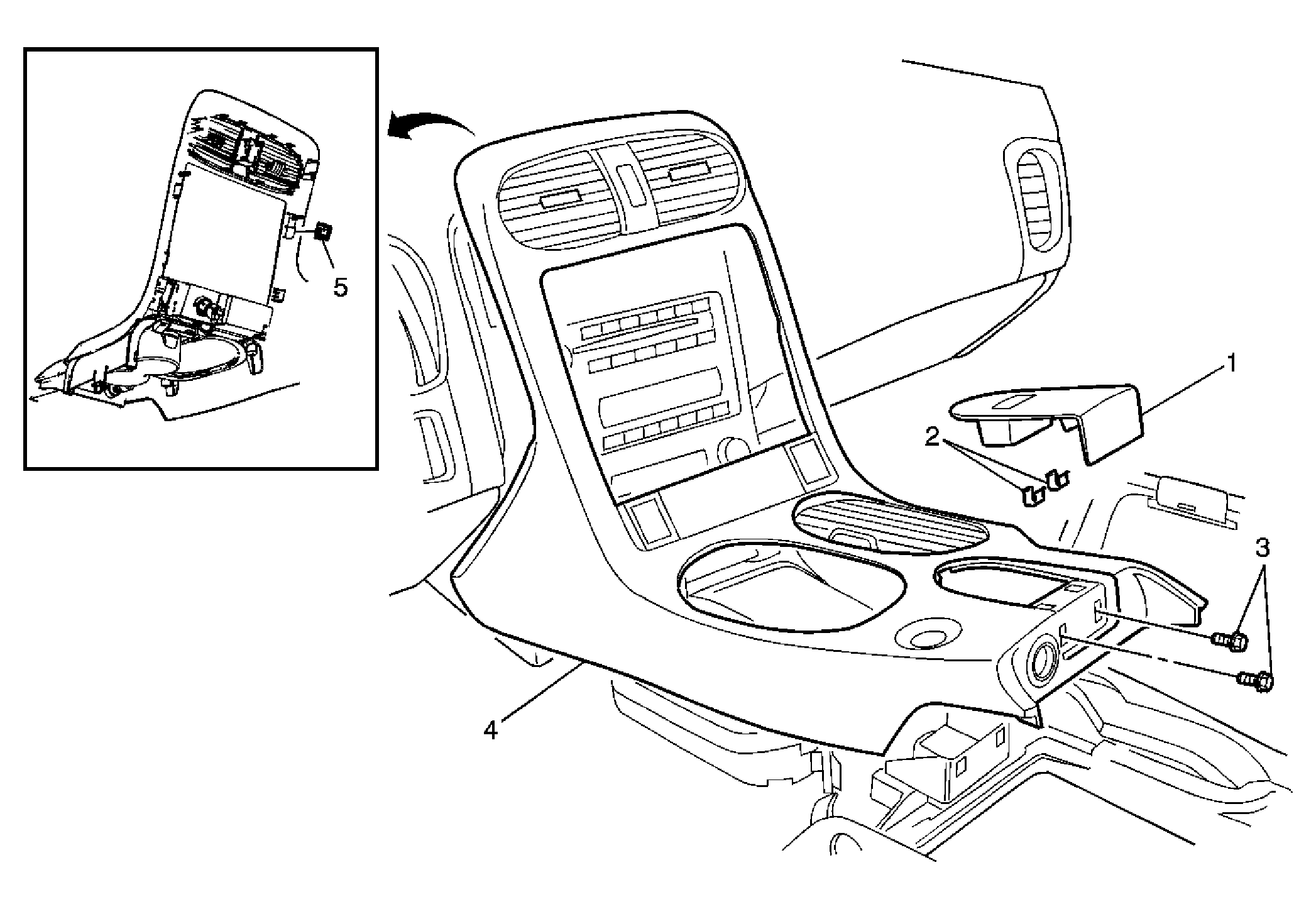

Fig 1: Trim Plate - Instrument Panel (I/P) Accessory

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the right side console trim plate. Refer to Console Trim Panel Replacement - Right .
1	Plate Assembly - Floor Console Trim Tip: Grasp the back edge of the trim and lift upward releasing the clips. Disconnect the electrical connections.
2	Clip, Plate Assembly - Floor Console Trim (Qty: 2)
3	Bolt, Instrument Panel Accessory Trim Plate (Qty: 2) Tighten: 3 N.m (27 lb in)
4	Plate Assembly - Instrument Panel Accessory Trim Tip: Grasp the back edge of the trim and lift upward and rearward releasing the clips. Disconnect all electrical connections.
5	Clip, Plate Assembly - Instrument Panel Accessory Trim (Qty: 6)
