Air Conditioning Clutch Coil Installation (SP10 Compressor)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

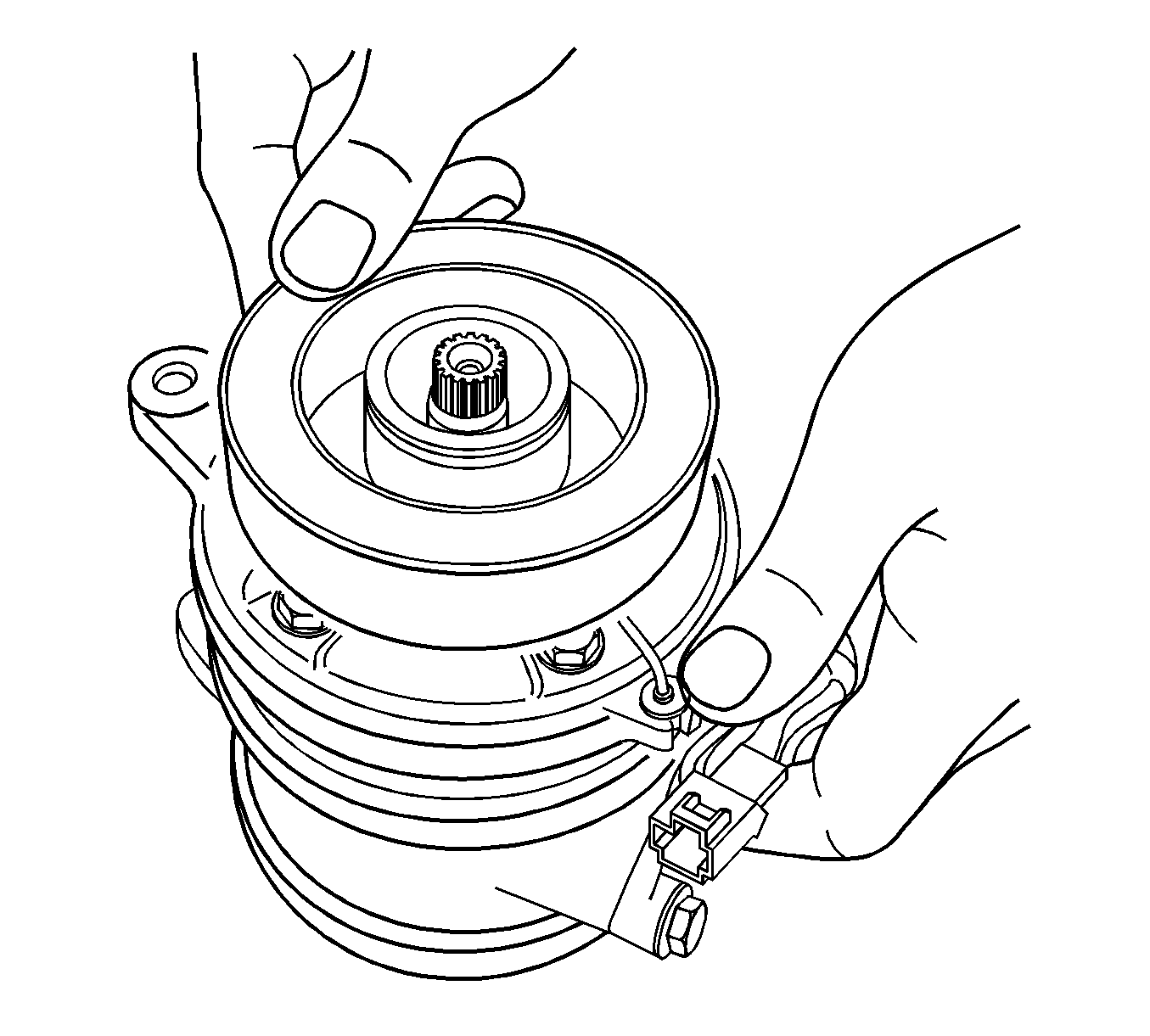

    Fig 1: Coil And Housing Assembly
    GM1887048Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Coil flange protrusion must match front head hole to prevent coil movement and allow for correct lead wire location. The lead wire must then be tightened by pulling it toward the compressor body to prevent it from touching the pulley.
  1. Gently install the coil and housing assembly. The lead wire clamp must be inserted tightly onto the front head slot.

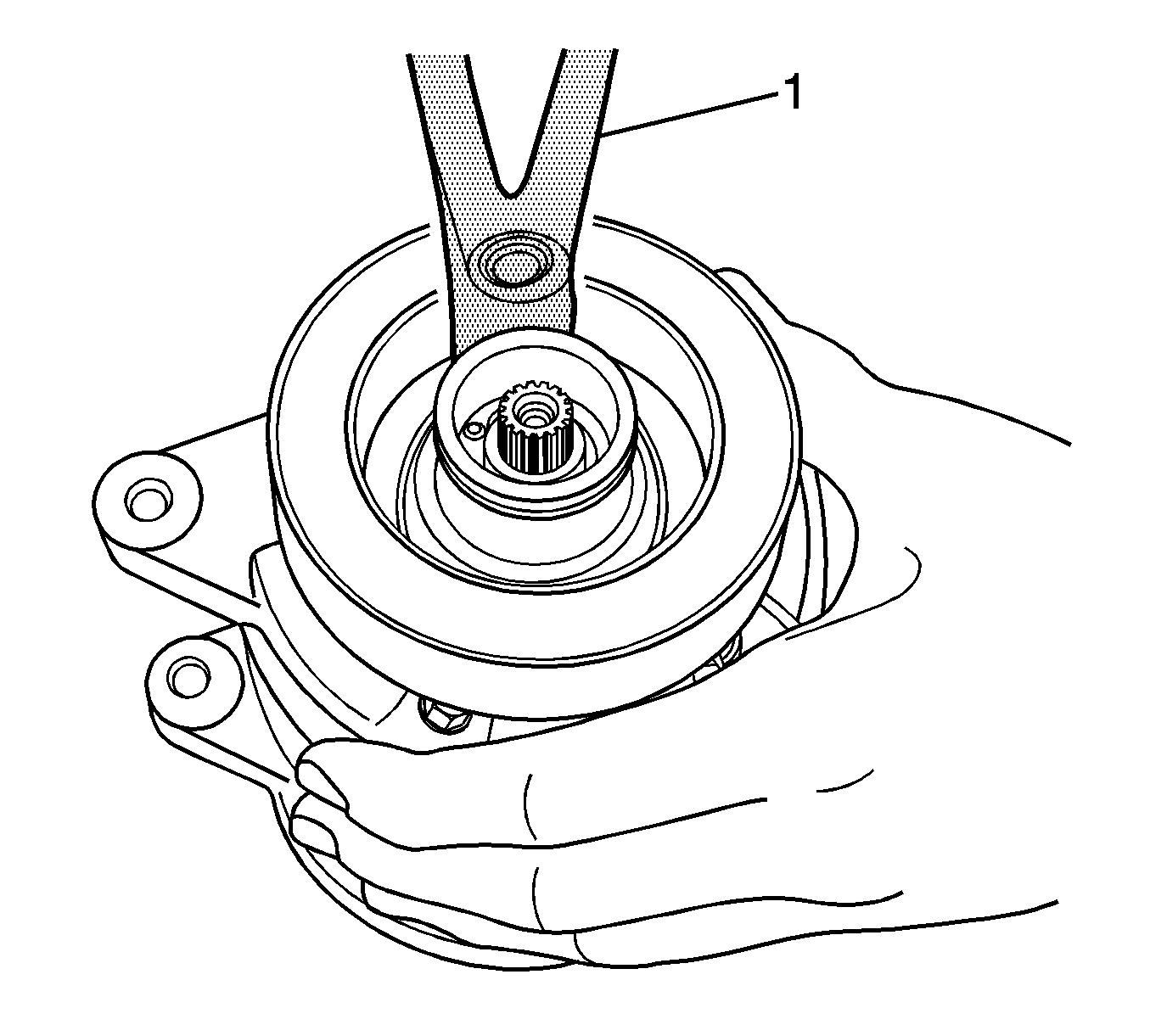

    2. Fig 2: Snap Ring Pliers
    GM1887043Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Sharp edge side of the coil retainer should be placed on its upper side during assembly. Upon completion, squeeze the retainer to ensure it is well installed.
  2. Install the retainer ring using the snap ring pliers (1).
  3. Install the pulley and bearing assembly. Refer to Clutch Rotor and/or Bearing Install (V5 Compressor)  or Clutch Rotor and/or Bearing Install (SP10 Compressor) .
  4. Install the clutch and drive assembly. Refer to Compressor Clutch Plate/Hub Assembly Install (V5 Compressor)  or Compressor Clutch Plate/Hub Assembly Install (SP10 Compressor) .
