Removal Procedure

  1. Disconnect the battery ground cable.
  2. Remove the throttle body air inlet duct.
  3. Remove the engine mount struts. Refer to Engine Mount Strut (Left) - Replacement  and Engine Mount Strut (Right) - Replacement  .
  4. Raise and suitably support the vehicle.
  5. Remove the three-way catalytic converter pipe from the right rear exhaust manifold.
  6. Remove the right front wheel and tire.
  7. Remove the right engine splash shield.
  8. Remove the engine mount lower nuts.
  9. Raise the engine, using the universal engine support fixture. Refer to Engine Support Fixture .

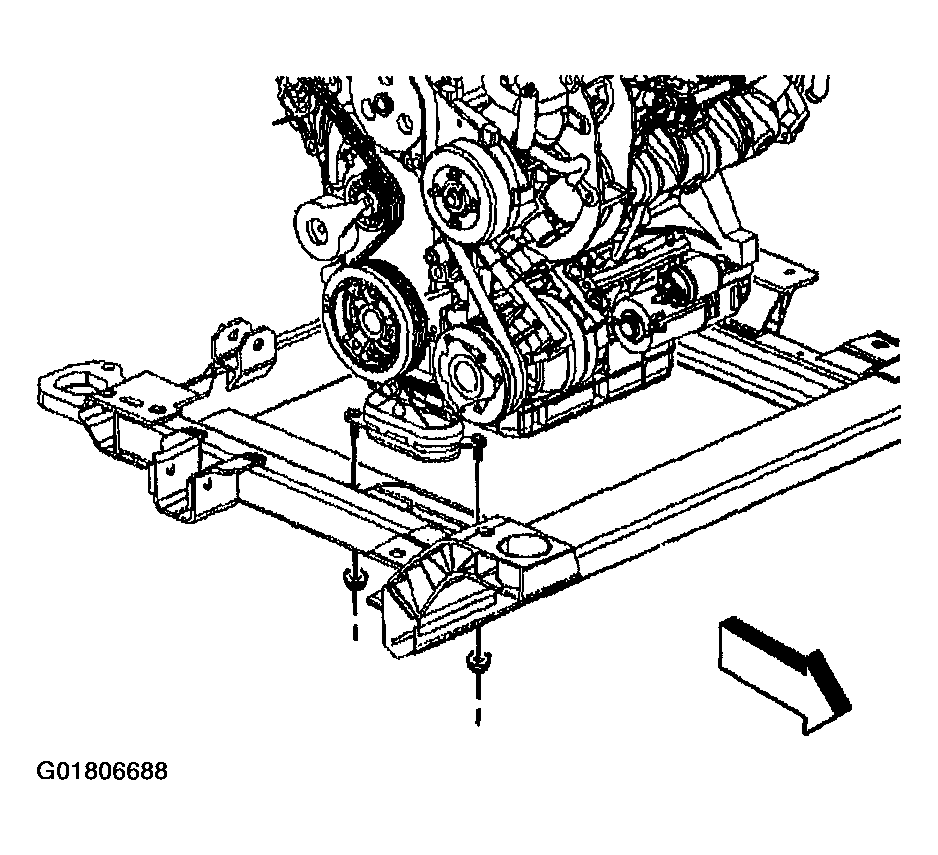

    10. Fig 1: Universal Engine Support Fixture
    G01806688Courtesy of GENERAL MOTORS CORP.
  10. Remove the bolts which secure the engine mount bracket to the oil pan.
  11. Remove the engine mount and the engine mount bracket.

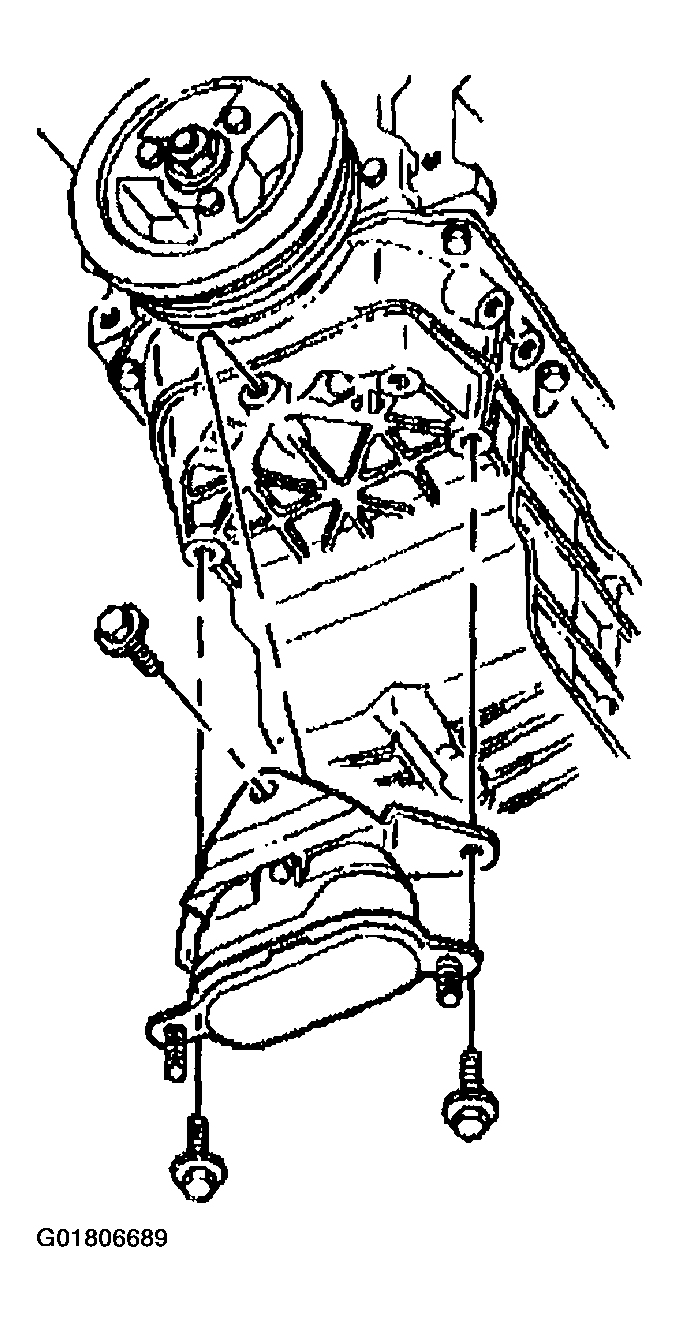

    Fig 2: Engine Mount
    G01806689Courtesy of GENERAL MOTORS CORP.
  12. Remove the engine mount upper nuts.
  13. Remove the engine mount from the engine mount bracket.

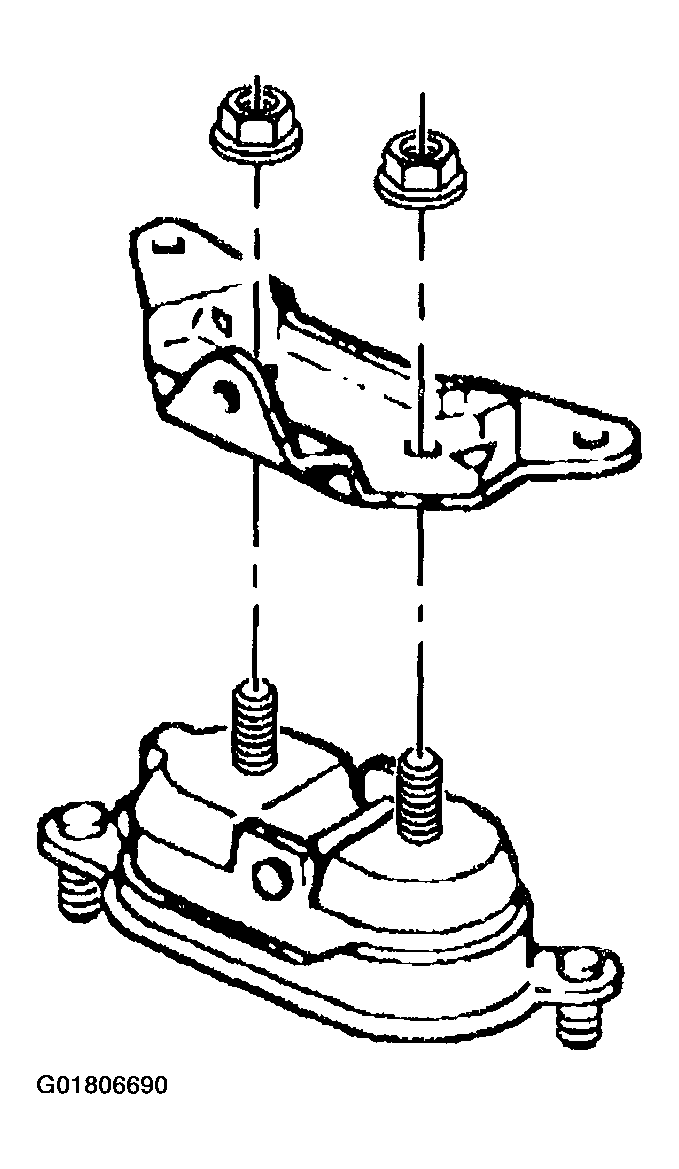

    Fig 3: Engine Mount & Engine Mount Bracket
    G01806690Courtesy of GENERAL MOTORS CORP.
