Engine Support Fixture

Tools Required

• J 28467-B  Universal Engine Support Fixture
• J 36462-A  Engine Support Adapter Leg Set
• J-28467-501  Engine Support Fixture Legs

1. Disconnect the negative battery cable.
2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to Engine Mount Strut Bracket Replacement - Upper Radiator Support .
3. Assemble the J-28467-501  (2) to the J 28467-B  cross bar (1).
4. Install the J 28467-B  (1) and the J-28467-501  (2) to the fender rails.

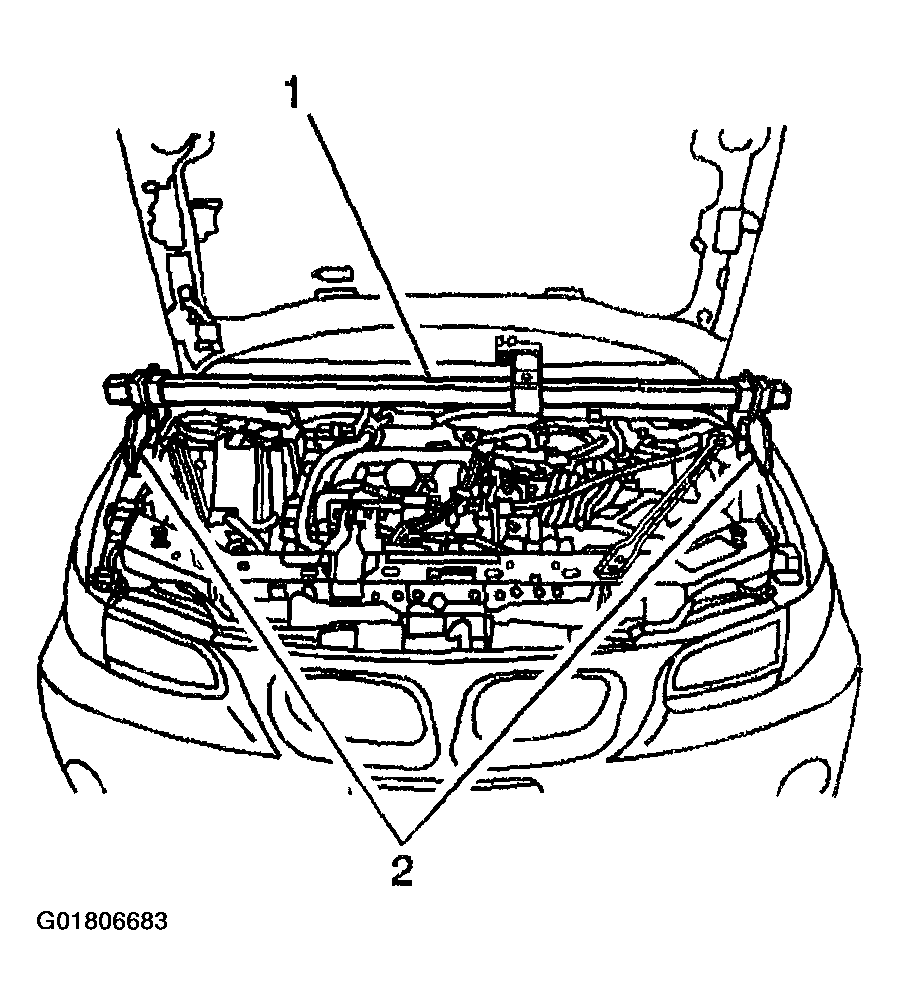

   Fig 1: Universal Engine Support Fixture

   Courtesy of GENERAL MOTORS CORP.
5. Install the J 36462-A  (1) to the cross bar (2).

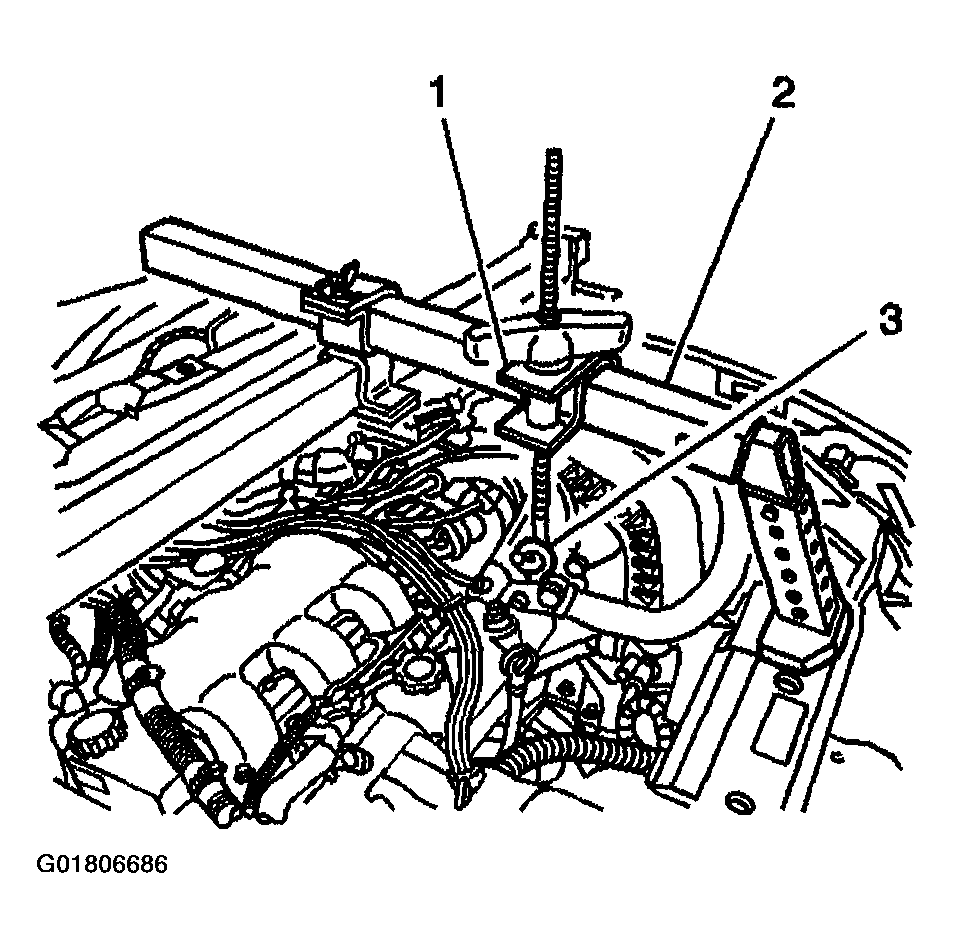

   Fig 2: Universal Engine Support Fixture & Cross Bar

   Courtesy of GENERAL MOTORS CORP.
6. Install the support lift hook (1) to the cross bar (2).
7. Install the support hook (1) to the right engine lift hook (3).

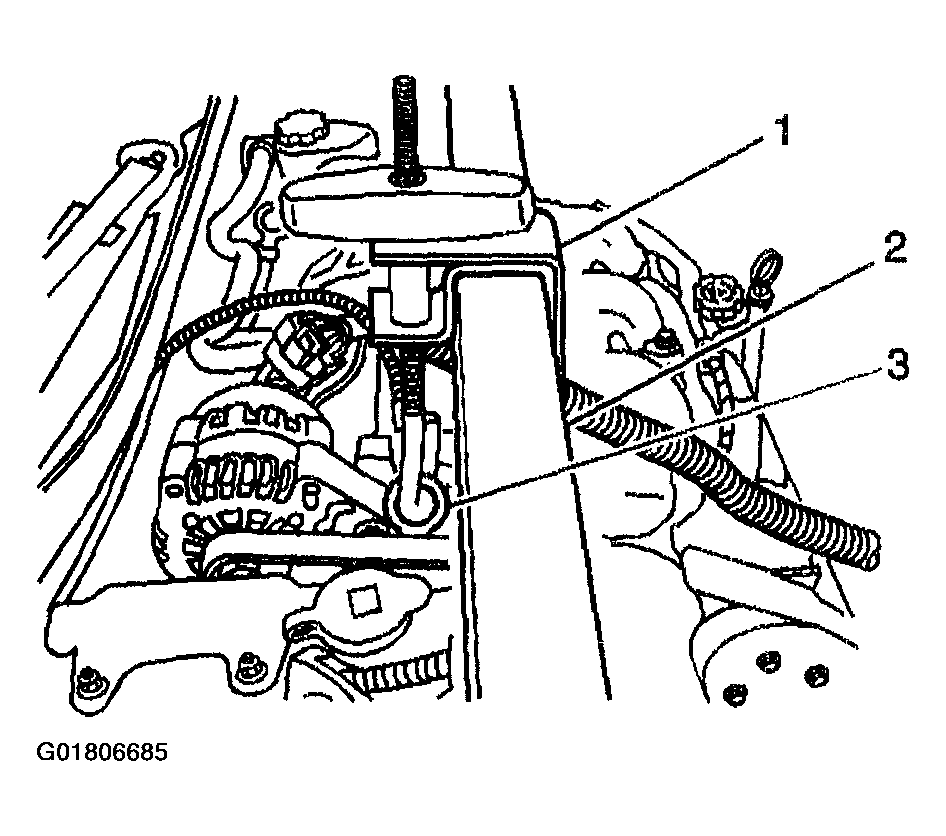

   Fig 3: Support Lift Hook

   Courtesy of GENERAL MOTORS CORP.
8. Install the support hook (1) to the J 36462-A  (2).
9. Install the support hook (1) to the left engine lift hook (3).

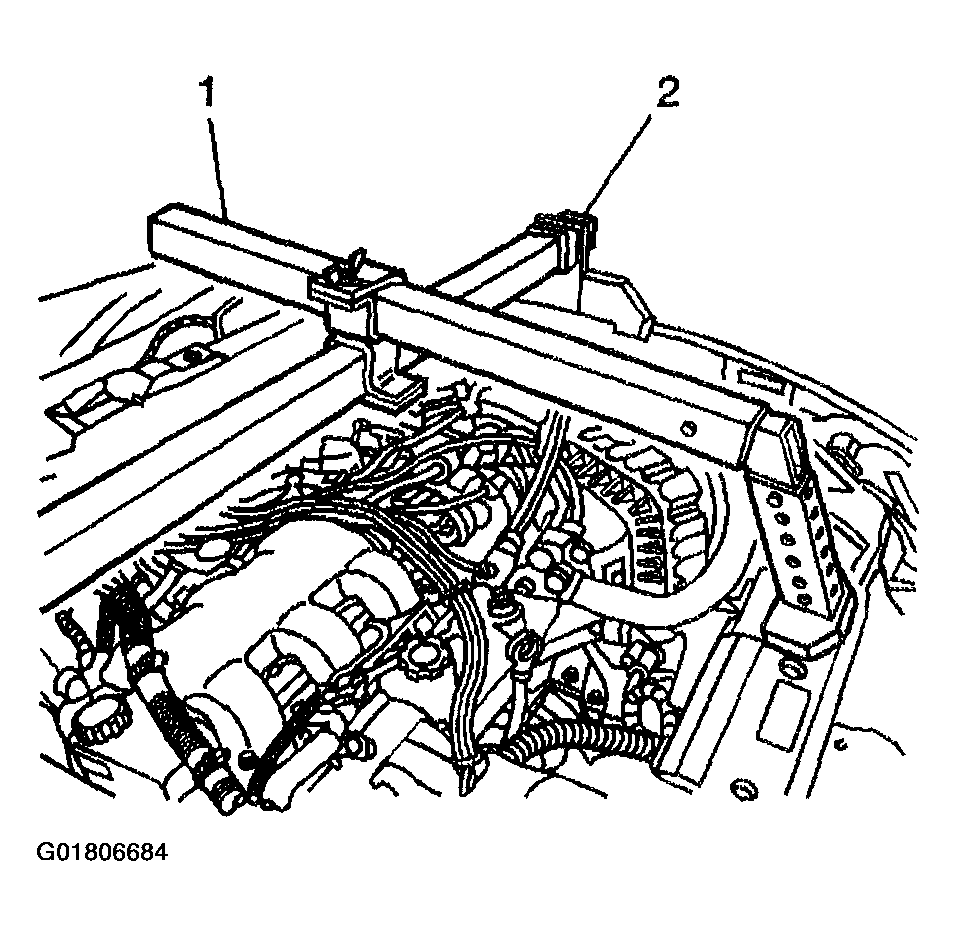

   Fig 4: Left Engine Lift Hook

   Courtesy of GENERAL MOTORS CORP.
10. Raise the engine to release the pressure off of the engine mounts.
