Removal Procedure

  1. Disconnect the battery ground cable.
  2. Remove the throttle body air inlet duct.
  3. Remove the engine mount struts. Refer to Engine Mount Strut (Left) - Replacement  and Engine Mount Strut (Right) - Replacement  .
  4. Raise and suitably support the vehicle.

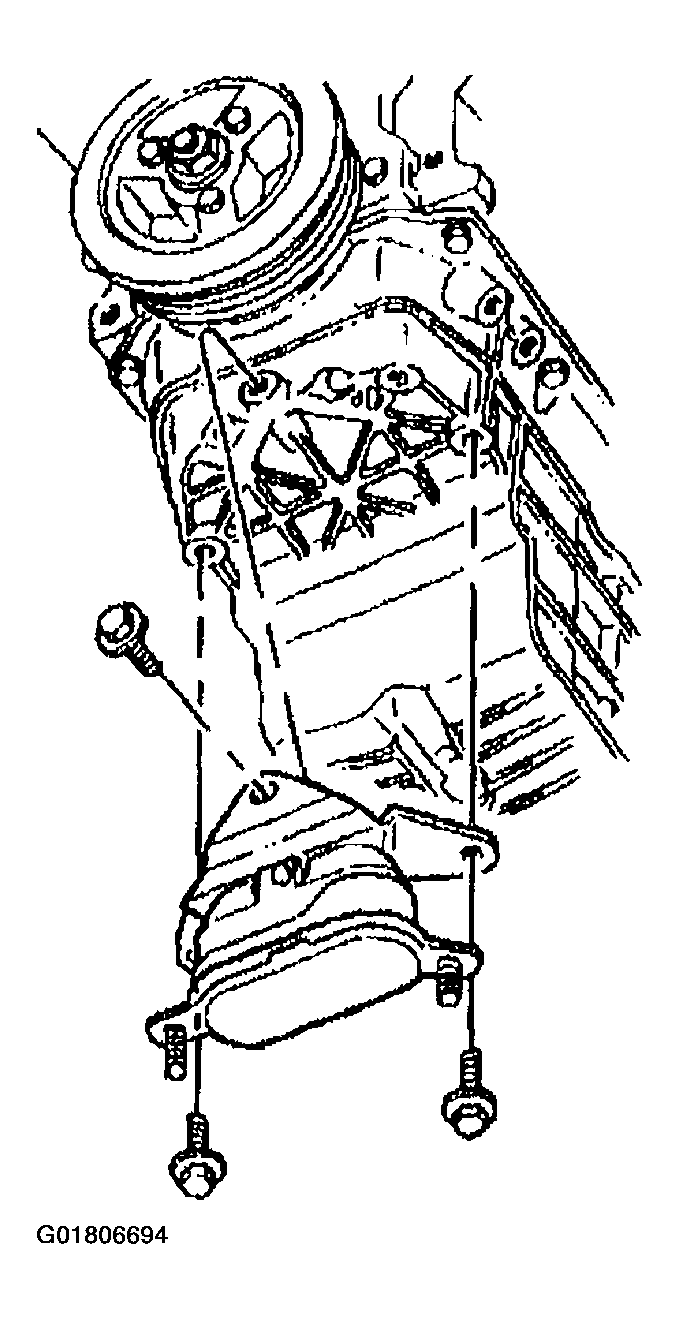

    Fig 1: Engine Mount
    G01806694Courtesy of GENERAL MOTORS CORP.
  5. Remove the three-way catalytic converter pipe from the right exhaust manifold.
  6. Remove the right front wheel and tire.
  7. Remove the right engine splash shield.
  8. Remove the bolts which secure the engine mount bracket to the oil pan.
  9. Install J 28467-90A, J 36462-A  , and J 28467-B  . Refer to Engine Support Fixture .
  10. Raise the engine.
  11. Remove the engine mount upper nuts.
  12. Remove the engine mount bracket from the engine mount.

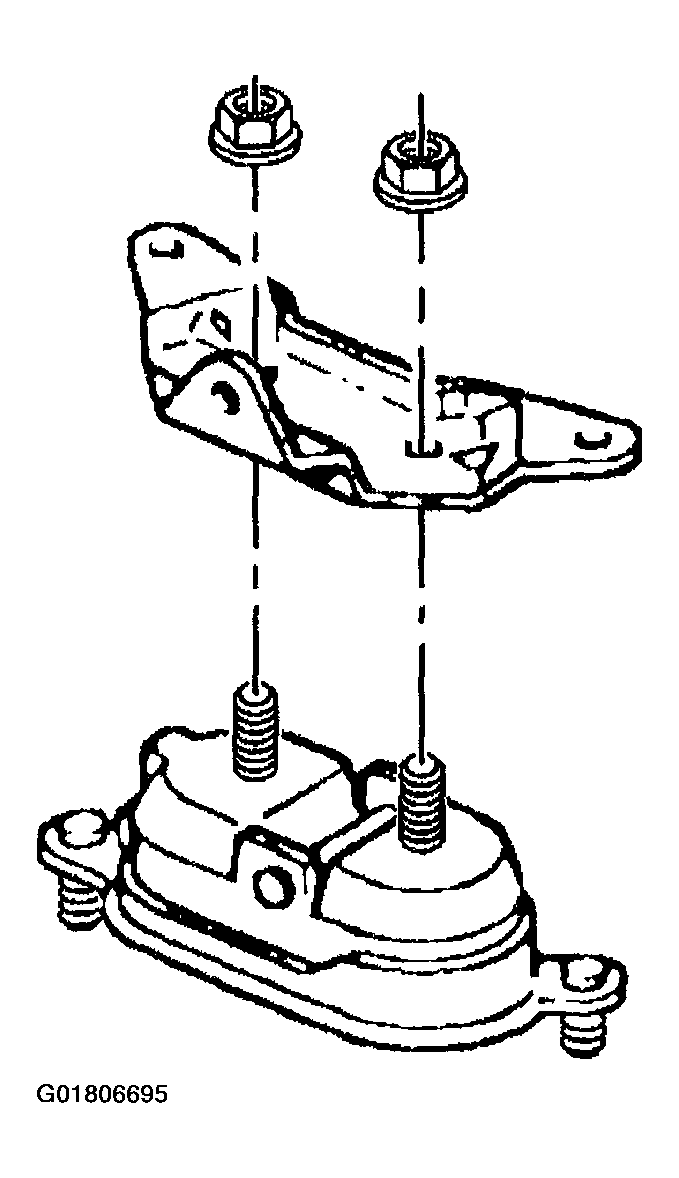

    Fig 2: Engine Mount Bracket & Engine Mount
    G01806695Courtesy of GENERAL MOTORS CORP.
