Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

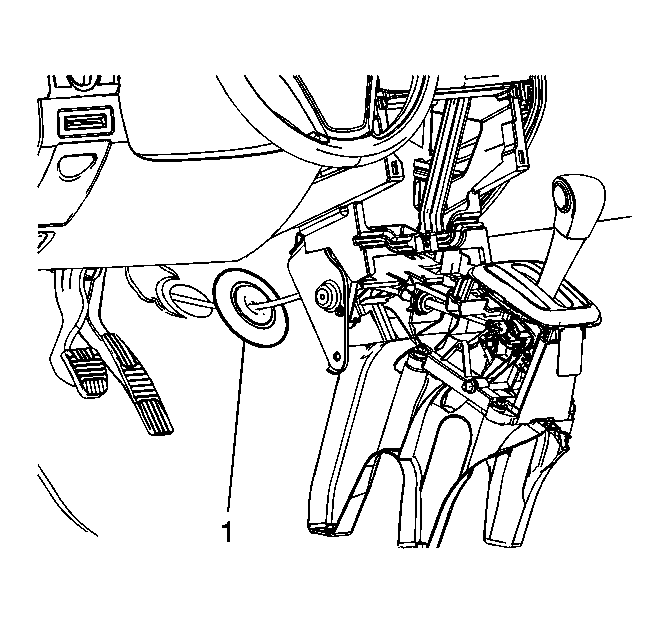

Fig 1: Range Select Cable Grommet

Courtesy of GENERAL MOTORS CORP.

Install the range select cable to the vehicle through the cowl and the carpet.
Install the range select cable grommet (1) in the cowl.

Fig 2: Range Select Cable

Courtesy of GENERAL MOTORS CORP.

Install the range select cable (1) to the automatic transmission range select lever housing.
Install the range select cable (2) to the automatic transmission range select lever pin.
Install the front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement .

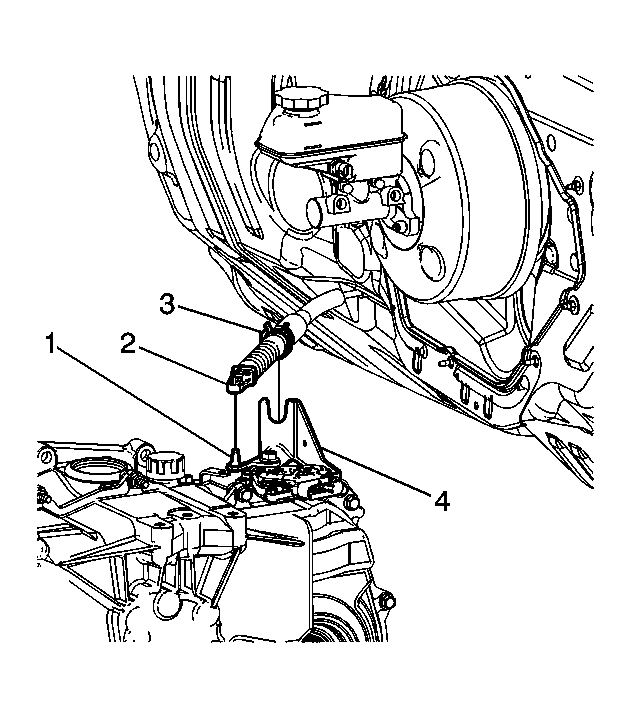

Fig 3: Shift Cable Retainers

Courtesy of GENERAL MOTORS CORP.

Install the range select cable to the range select cable bracket (4). Ensure the range select cable retaining clip (3) is secured in the bracket.
Connect the range select cable (2) to the range select lever (1).
Adjust the cable. Refer to Shift Control Cable Adjustment .
