Tilt Spring - Assemble - Off Vehicle

  1. Use the tilt lever to tilt the column to the UP position.

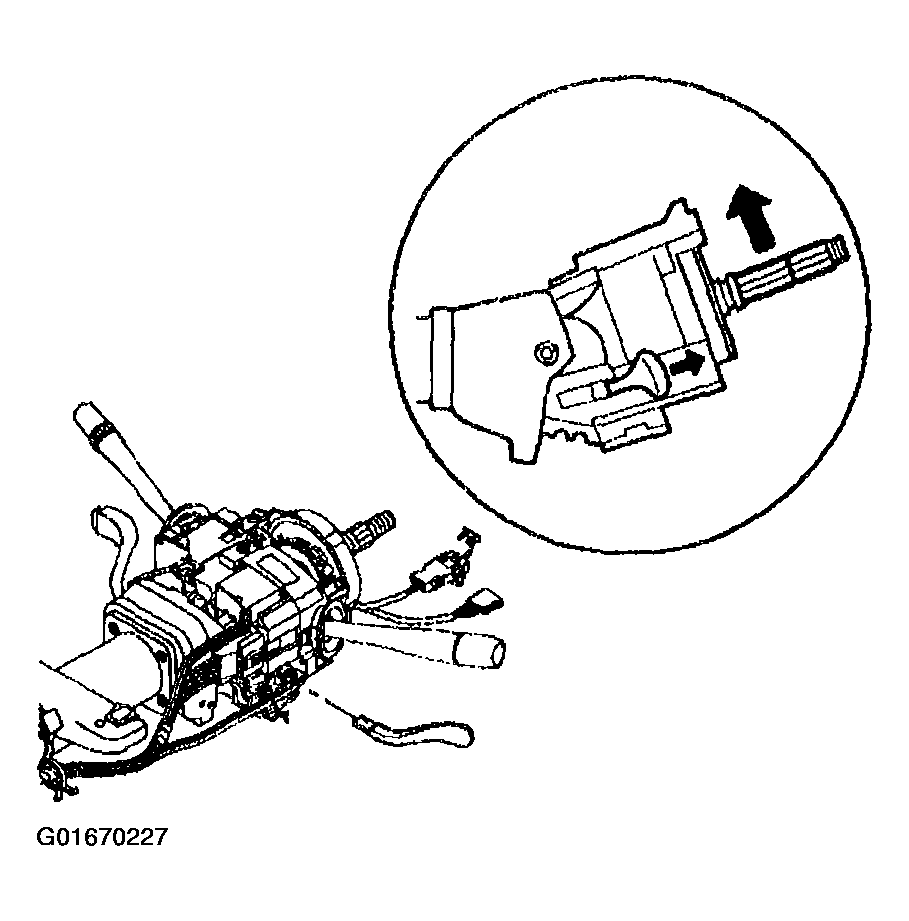

    Fig 1: Tilting Column Using Tilt Lever
    G01670227Courtesy of GENERAL MOTORS CORP.
  2. Lubricate the tilt spring with synthetic grease.
  3. Install the spring guide into the tilt spring.
    Fig 2: Installing Spring Guide Into Tilt Spring
    G01670228Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to TILT SPRING CAUTION .
  4. Install the tilt spring (1) onto the steering column support assembly (2) and onto the steering column tilt head assembly by using the following procedure:
    1. 4.1. Install the tilt spring (1) onto the steering column tilt head assembly.
    2. 4.2. Install the tilt spring (1) onto the post on the steering column support assembly (2).
  5. Remove the tilt lever.
  6. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Column Shift Snap On Shrouds)  or Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift) .
  7. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

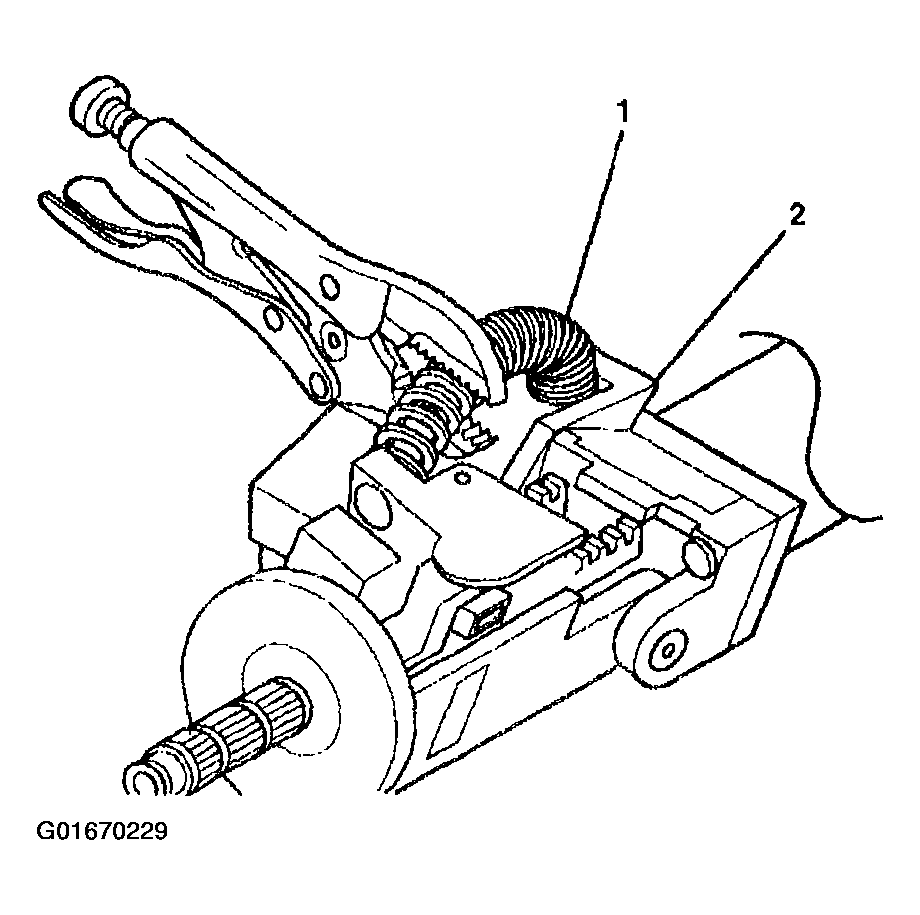

    Fig 3: Installing Tilt Spring Onto Steering Column Support Assembly
    G01670229Courtesy of GENERAL MOTORS CORP.
