Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift)

  1. Install the upper trim cover (2) onto the steering column.
    NOTE: Refer to FASTENER NOTICE .
  2. Screw the 2 TORX® head screws (1) into the upper trim cover (2).

    Tighten

    Tighten the 2 TORX® head screws to 1.5 N.m (13 lb in).

    Fig 1: Installing Upper Trim Cover & Screws (Floor Shift)
    G01670176Courtesy of GENERAL MOTORS CORP.
  3. Install the lower trim cover onto the upper trim cover in the following way:
    1. 3.1. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
    2. 3.2. Tilt the lower trim cover up.
    3. 3.3. Slide the lower trim cover forward until the locking tabs snap into the tab slots.

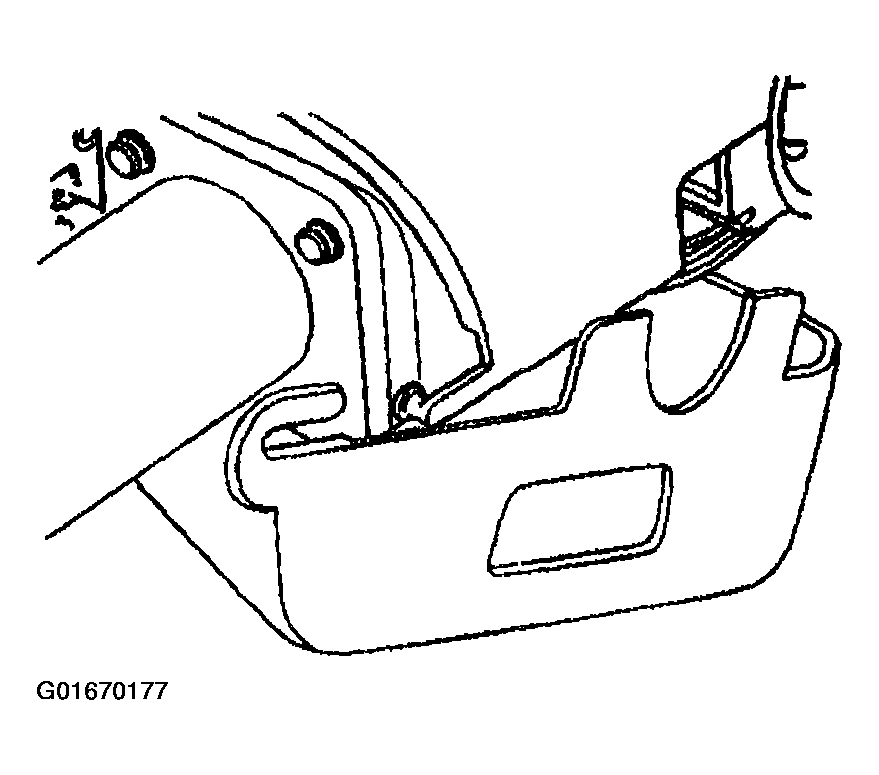

      Fig 2: Installing Lower Trim Cover Onto Upper Trim Cover (Floor Shift)
      G01670177Courtesy of GENERAL MOTORS CORP.
  4. Screw the 2 pan head tapping screws (1) into the lower trim cover (2).

    Tighten

    Tighten the 2 pan head tapping screws to 3.5 N.m (31 lb in).

  5. Install the tilt lever into the lower trim cover. Refer to Tilt Lever Replacement - On Vehicle .
  6. Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement .
  7. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

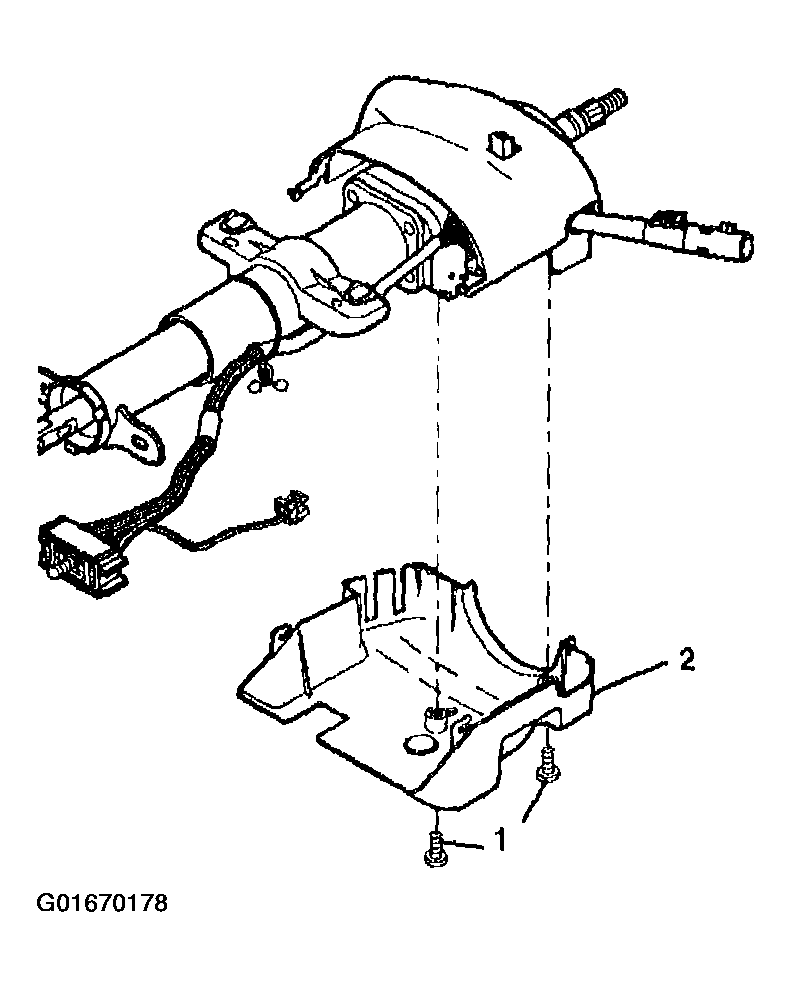

    Fig 3: Installing Lower Trim Cover & Screws (Floor Shift)
    G01670178Courtesy of GENERAL MOTORS CORP.
