Steering Shaft, Lower Bearing & Jacket - Disassemble - Off Vehicle (Floor Shift Standard)

CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .
  2. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
  3. Remove the electric park lock. Refer to Electric Park Lock Module - Disassemble - Off Vehicle (Floor Shift) .
  4. Remove the electronic lock module assembly. Refer to Electronic Column Lock Module - Disassemble - Off Vehicle (Column Shift)  or Electronic Column Lock Module - Disassemble - Off Vehicle (Floor Shift) .
  5. Inspect the steering column assembly for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .
  6. Remove the 2 pan head screws (1) from the turn signal and multifunction switch assembly (2).
  7. Remove the turn signal and multifunction switch assembly (2).

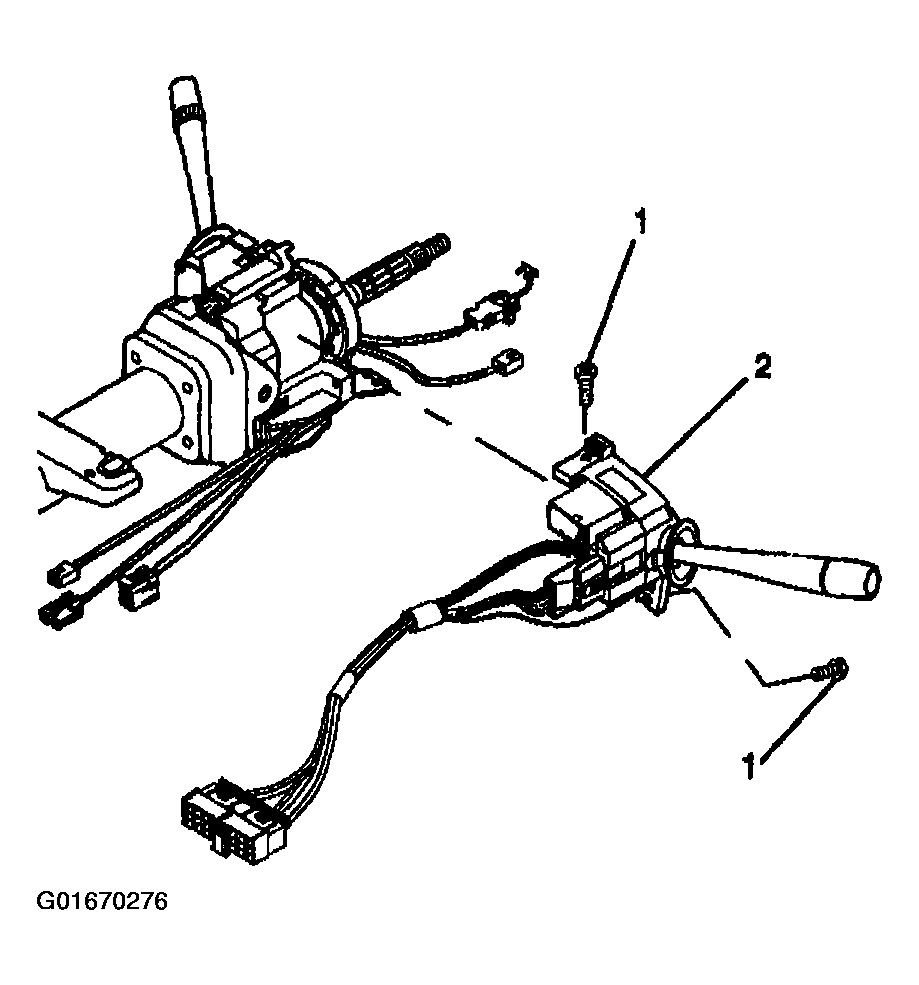

    8. Fig 1: Turn Signal/Multifunction Switch Assembly & Screws (Floor Shift Standard)
    G01670276Courtesy of GENERAL MOTORS CORP.
  8. Remove the inner boot seal (4).
  9. Remove the steering shaft seal (3) from the adapter and bearing assembly (1).
  10. Remove the shaft seal retainer (2) from the adapter and bearing assembly (1).
  11. Remove the adapter and bearing assembly (1) from the steering shaft assembly.
    Fig 2: Adapter/Bearing Assembly, Shaft Seal Retainer, Steering Shaft Seal & Inner Boot Seal (Floor Shift Standard)
    G01670277Courtesy of GENERAL MOTORS CORP.
  12. Remove the steering shaft assembly (1) from the steering column support assembly (2) and the steering column jacket assembly (3).
    Fig 3: Steering Shaft Assembly, Steering Column Support Assembly & Steering Column Jacket Assembly (Floor Shift Standard)
    G01670278Courtesy of GENERAL MOTORS CORP.
  13. Remove the 4 TORX® head screws (1) from the steering column support assembly (2).
  14. Discard the 4 TORX® head screws (1).
  15. Remove the steering column support assembly (2) from the steering column jacket assembly (3).
    Fig 4: Steering Column Support Assembly, Steering Column Jacket Assembly & Screws (Floor Shift Standard)
    G01670279Courtesy of GENERAL MOTORS CORP.
