Ignition & Key Alarm Switch Assembly - Assemble - Off Vehicle

Tools Required

J 42759  Ignition Switch Connector Release Tool

1. Insert J 42759  into the electronic lock module assembly (1) and slide the ignition and key alarm switch assembly (2) in.

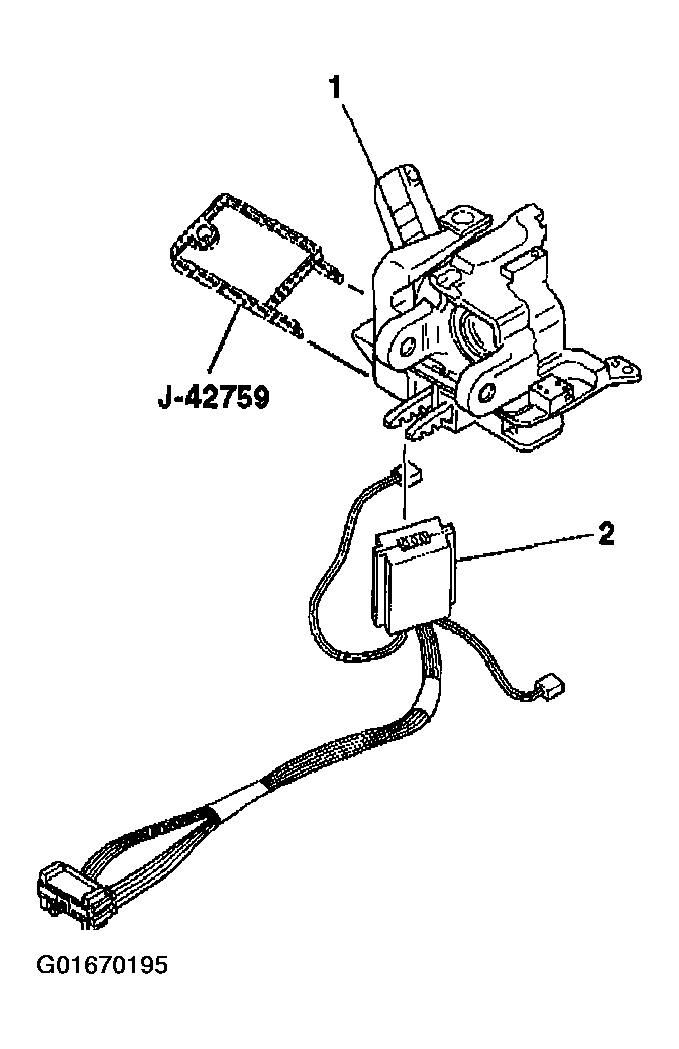

   Fig 1: Installing Ignition & Key Alarm Switch Assembly Using J 42759

   Courtesy of GENERAL MOTORS CORP.
2. Push the key alarm connector (1) into the electronic lock module assembly (2).
3. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.
4. Install the passkey connector into the electronic lock module assembly (2).

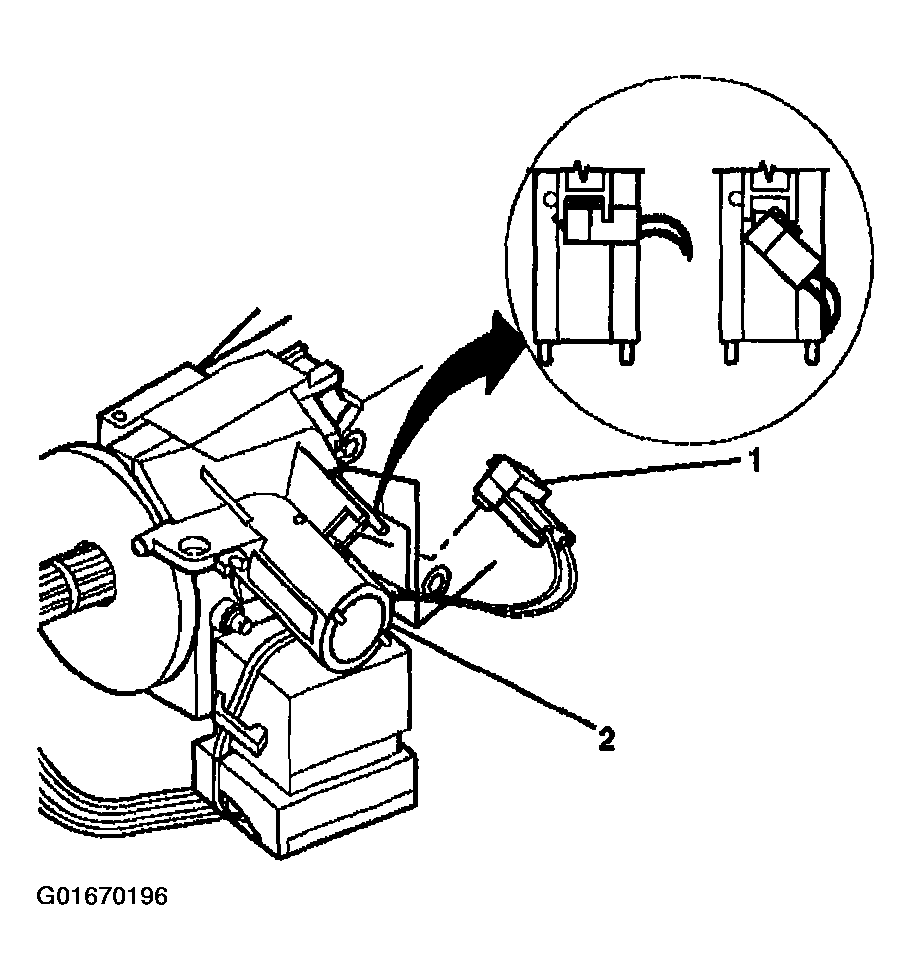

   Fig 2: Installing Key Alarm Connector

   Courtesy of GENERAL MOTORS CORP.
5. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly into the bulkhead connector (1).

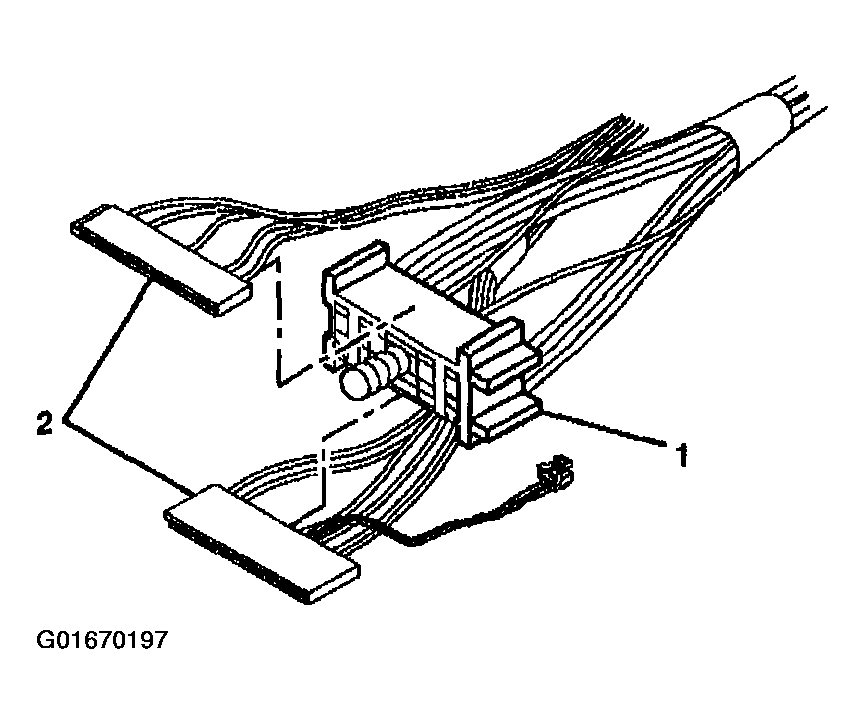

   Fig 3: Sliding Turn Signal & Multifunction Switch Assembly Connectors Into Bulkhead Connector

   Courtesy of GENERAL MOTORS CORP.

   Important:  The abrasion sleeve must be installed back onto the steering column wire harness assembly. The electronic lock module assembly wires and connector must be hanging out of the middle of the abrasion sleeve.

6. Attach the wire harness strap (2) to the wire harness assembly (1) and the steering column.
7. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Column Shift Snap On Shrouds)  or Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift) .
8. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

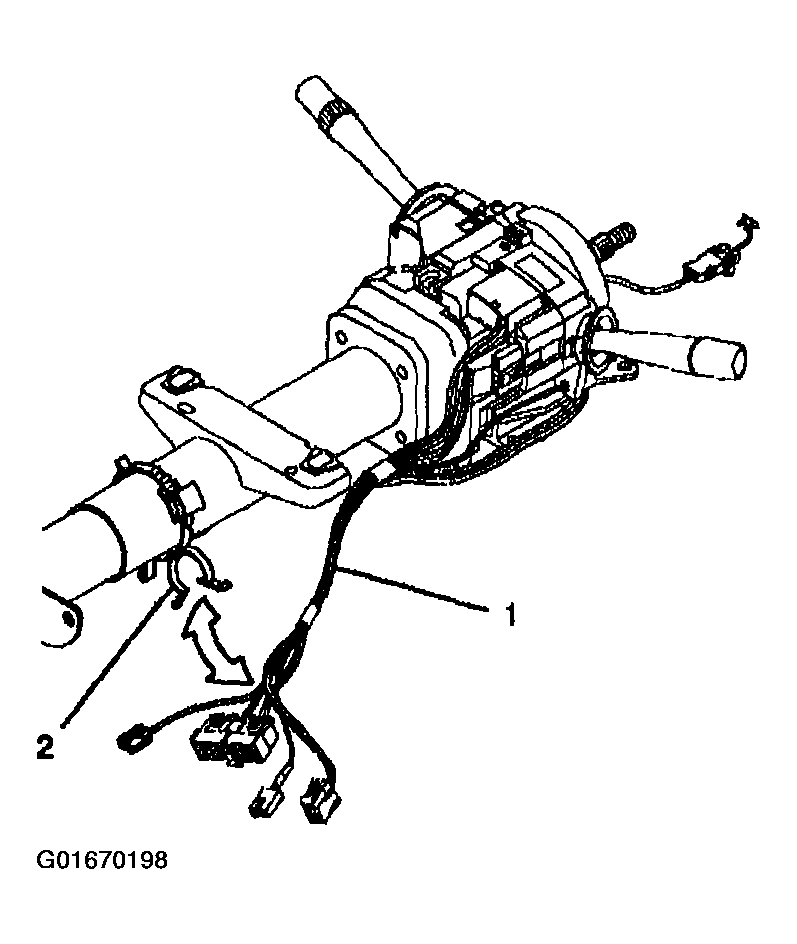

   Fig 4: Attaching Wire Harness Strap To Assembly & Steering Column

   Courtesy of GENERAL MOTORS CORP.
