Steering Column Tilt Head Housing - Assemble - Off Vehicle

Tools Required

• J 23653-SIR  Steering Column Lock Plate Compressor
• J 42137  Steering Column Lock Plate Compressor Adapter

1. Lubricate the following parts with synthetic grease:
   • The inner race (1)
   • The lower brass surface of the turn signal cancel cam assembly (4)
2. Install the following parts onto the steering column shaft assembly:
   1. 2.1. The inner race (1)
   2. 2.2. The upper bearing inner race seat (2)
   3. 2.3. The upper bearing spring (3)
   4. 2.4. The turn signal cancel cam assembly (4)
   5. 2.5. The cam orientation plate (5)

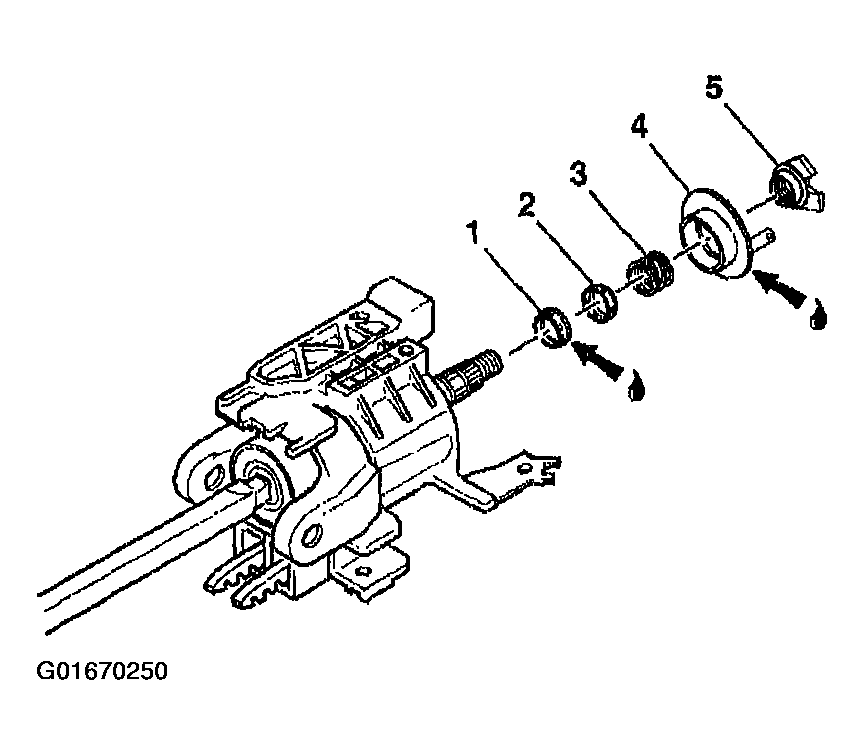

      Fig 1: Inner Race, Inner Race Seat, Spring, Turn Signal Cancel Cam Assembly & Cam Orientation Plate

      Courtesy of GENERAL MOTORS CORP.
3. Install the new bearing retainer onto the steering column shaft assembly.
4. Compress the cam orientation plate using J 23653-SIR  and J 42137  .

   Firmly seat the bearing retainer into the groove on the steering column shaft assembly.

5. Remove J 23653-SIR  from the steering column shaft assembly.
6. Install the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle .
7. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

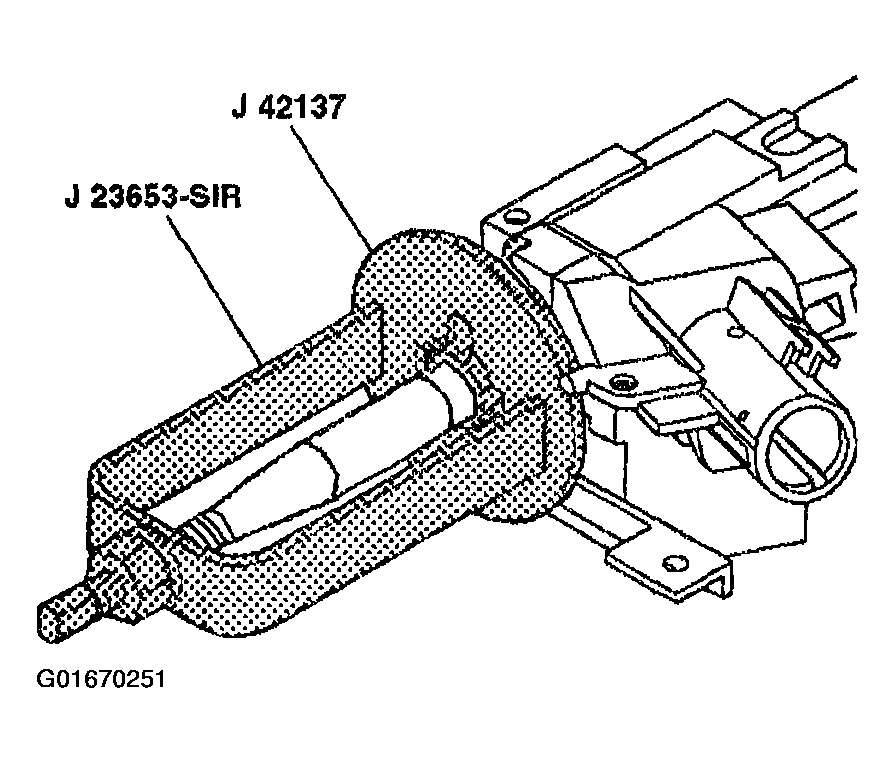

   Fig 2: Installing J 23653-SIR & J 42137 On Steering Column Shaft Assembly

   Courtesy of GENERAL MOTORS CORP.
