Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Remove the A/C compressor hose assembly bolt.
  3. Separate the A/C compressor hose assembly from the A/C compressor.

    Important:  The suction screens are available in 3 different sizes.

  4. Select the proper size removal tool (1) from J 44551  .

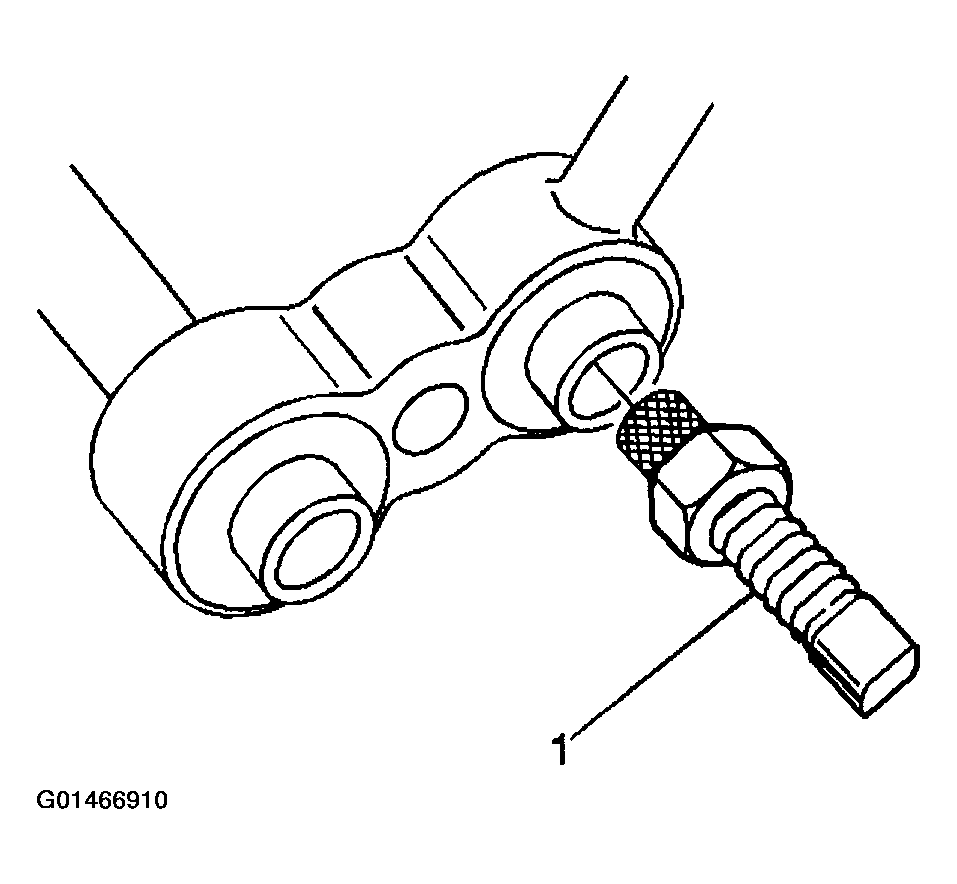

    Fig 1: Select Proper Size Removal Tool
    G01466910Courtesy of GENERAL MOTORS CORP.
  5. Remove the suction screen using the J 44551-31  suction screen removal tool.
    1. 5.1 Thread the forcing screw into the suction screen.
    2. 5.2 Tighten the nut on the forcing screw to remove the suction screen.
