Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the J 44551-6  sizing tool (1) into the suction hose to select the correct size suction screen.

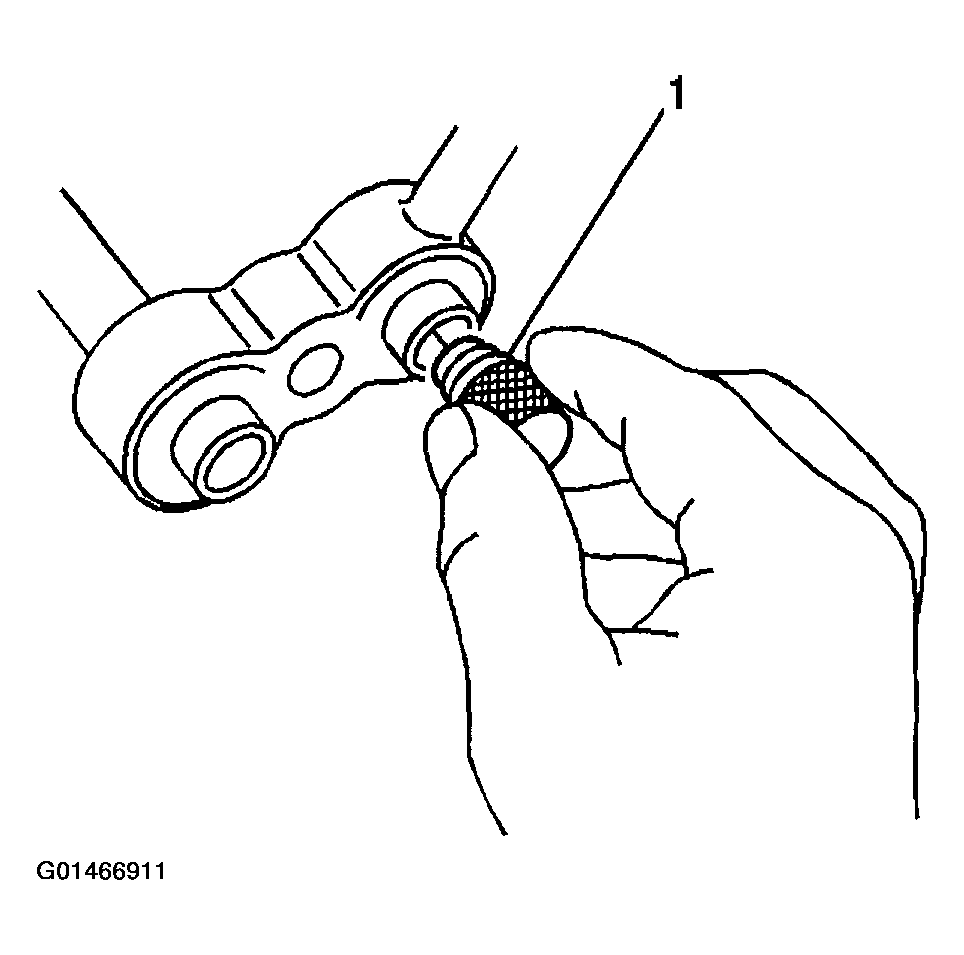

    Fig 1: Inserting J 44551-6 Sizing Tool Into Suction Hose
    G01466911Courtesy of GENERAL MOTORS CORP.
  2. Insert the suction screen into the suction hose.
  3. Install the J 44551-3  mandrel (1) to J 44551-5  .

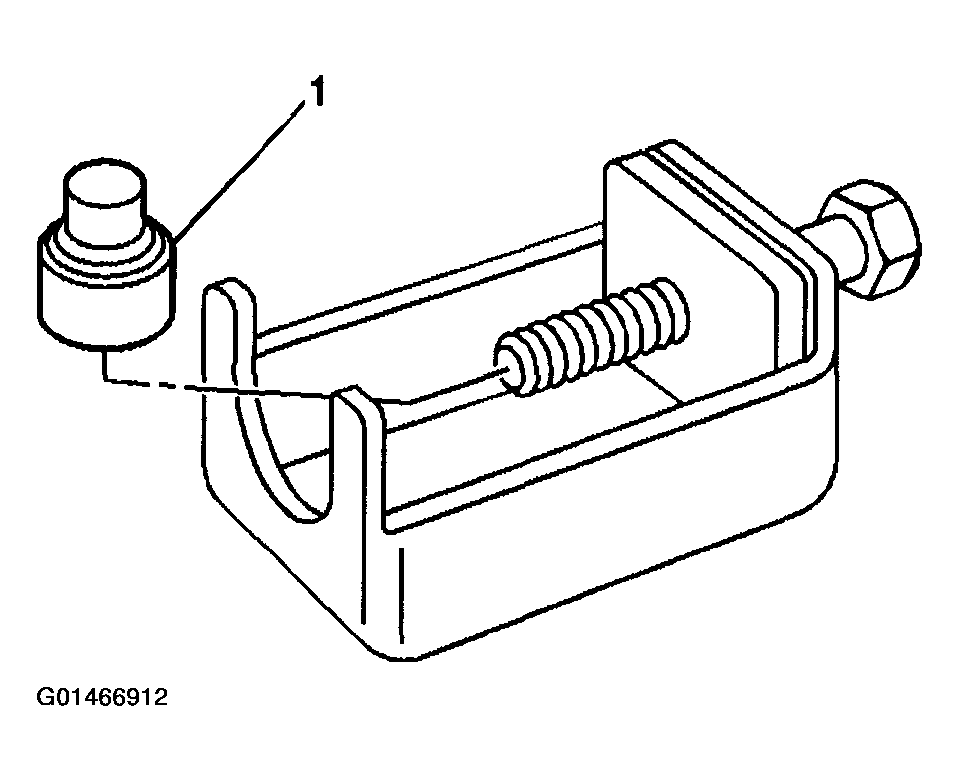

    Fig 2: Installing Mandrel To J 44551
    G01466912Courtesy of GENERAL MOTORS CORP.
  4. Install the J 44551-5  suction screen installation tool (3) over the end of the suction hose and the suction screen (2).

    Important:  Correct placement of J 44551-5  is critical.

  5. Tighten the forcing screw of J 44551  -5.

    The suction screen is fully installed when the screen is flush with the end of the suction hose.

  6. Remove the J 44551  suction screen tool from the suction hose.
  7. Replace the seal washers. Refer to COMPRESSOR SEALING WASHERS REPLACEMENT .
  8. Install the A/C compressor hose assembly to the A/C compressor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  9. Install the A/C compressor hose assembly bolt.

    Tighten

    Tighten the bolt to 32 N.m (24 Ib. ft).

  10. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  11. Leak test the fittings of the component using J 42220  .

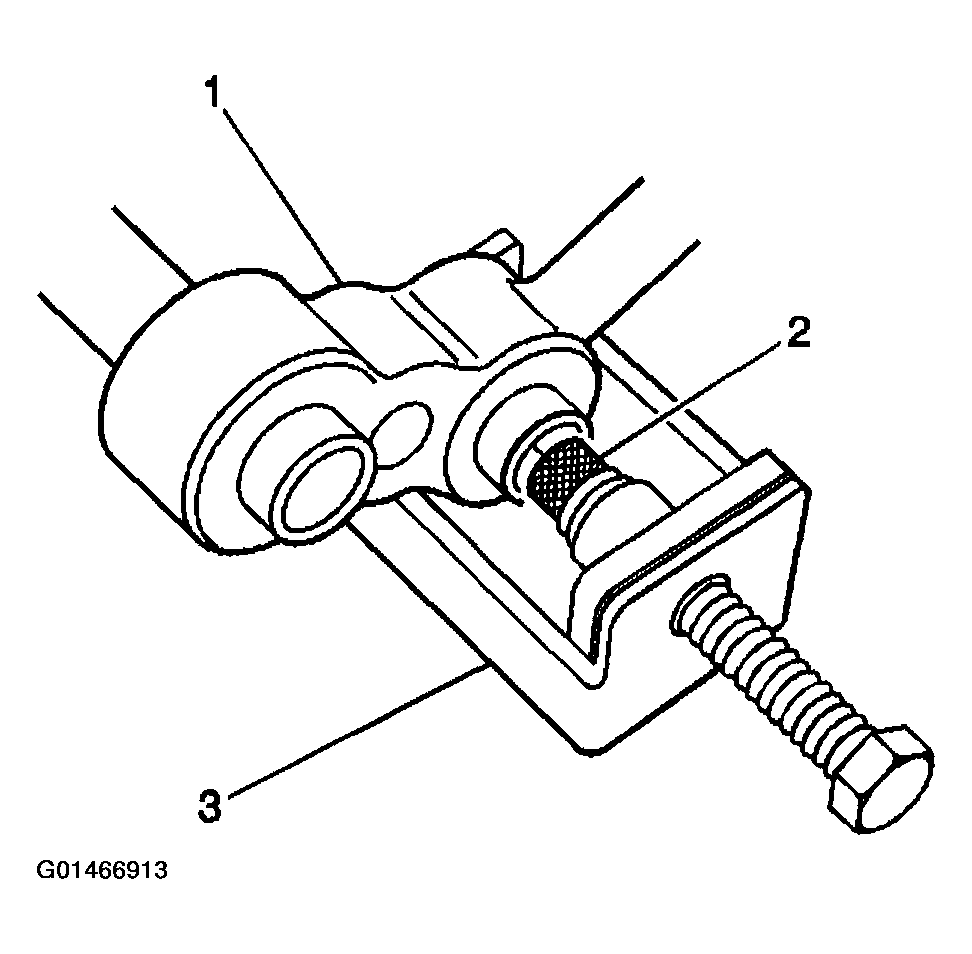

    Fig 3: Installing J 44551-5 Tool Over End Of Suction Hose
    G01466913Courtesy of GENERAL MOTORS CORP.
