Tool Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

J 44551 Suction Screen Kit

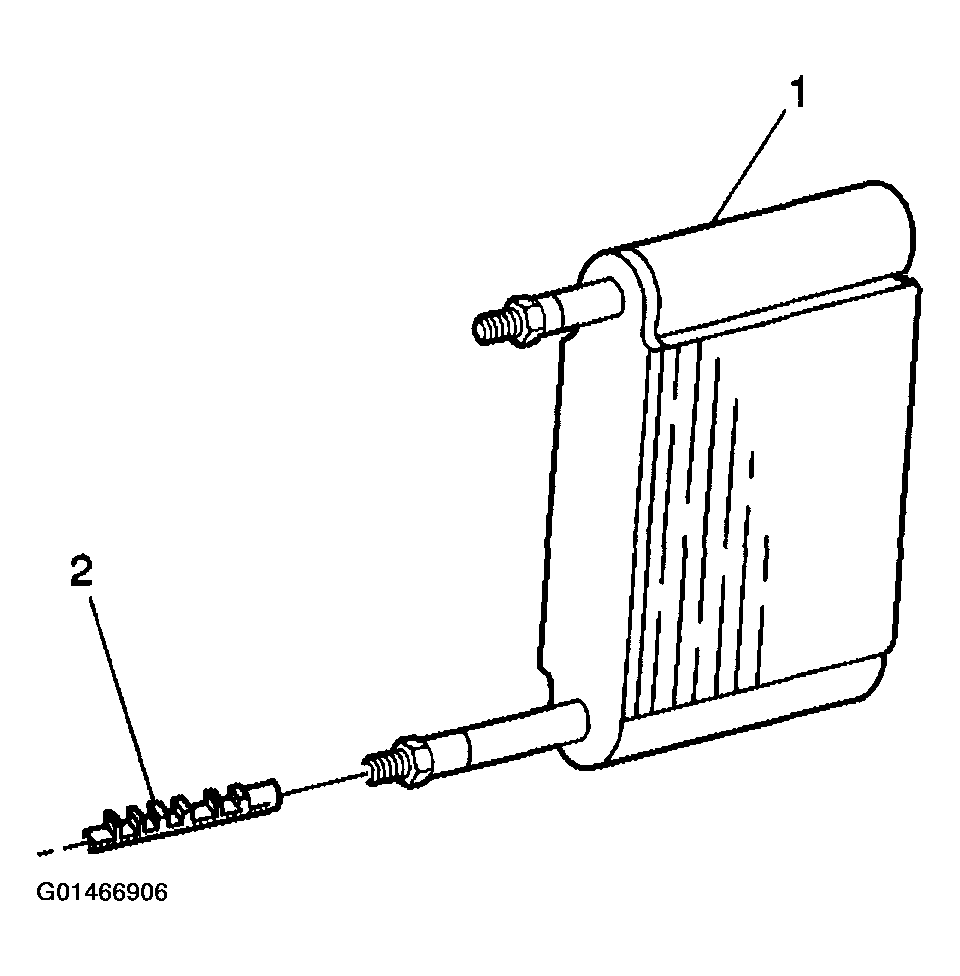

Fig 1: Installing Evaporator Tube To Evaporator

Courtesy of GENERAL MOTORS CORP.

Important: Suction screens are intended to be installed in the suction hose after a major compressor failure.

The suction screens are available in 3 different sizes.

Insert J 44551 -6 sizing tool (1) into the suction hose to select the correct size suction screen.
Insert the suction screen into the compressor end of the suction hose.

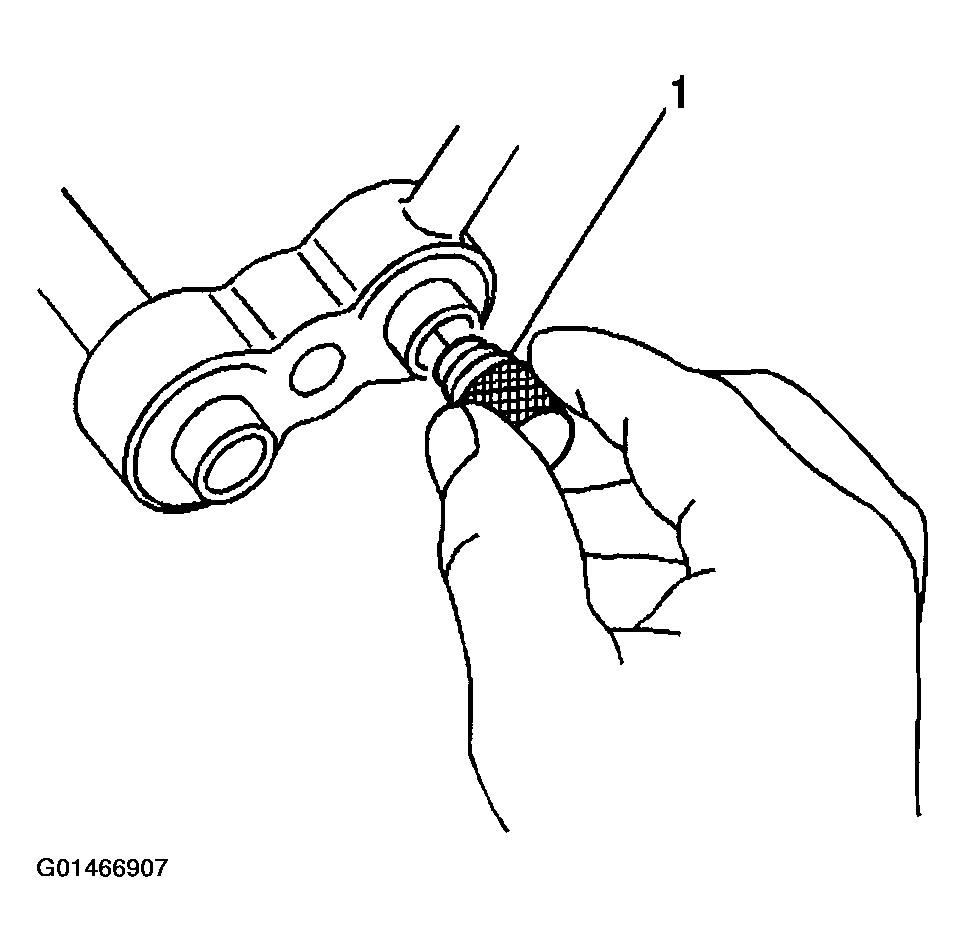

Fig 2: Inserting J 44551-6 Sizing Tool Into Suction Hose
Courtesy of GENERAL MOTORS CORP.
Install the correct mandrel (1) to J 44551-5 .

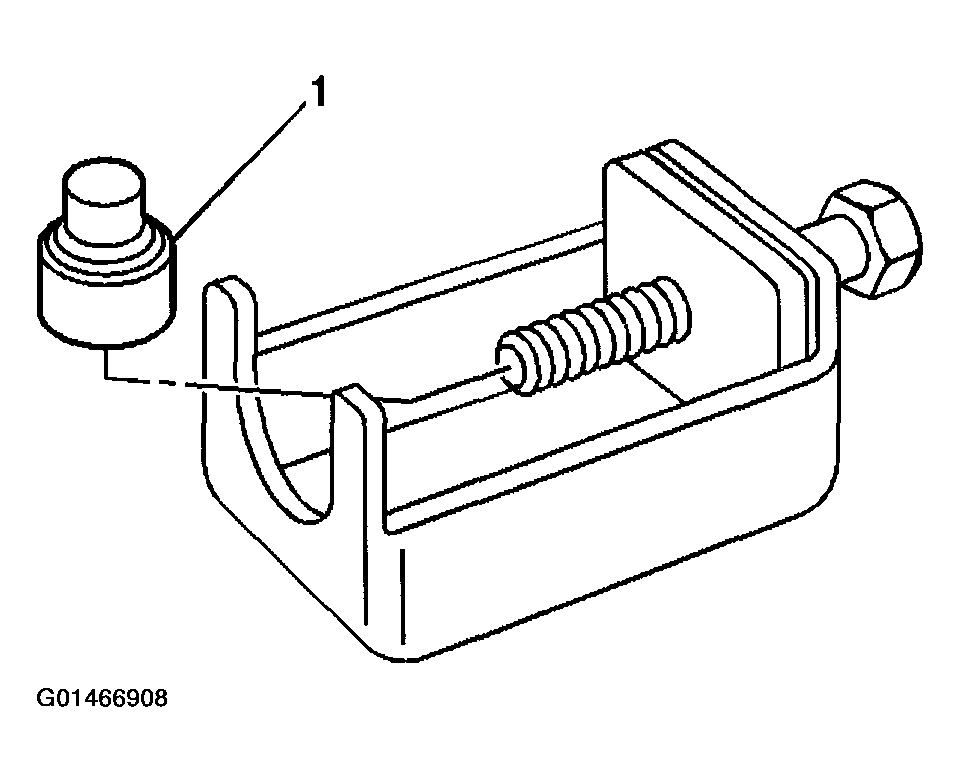

Fig 3: Installing Correct Mandrel To J 44551-5
Courtesy of GENERAL MOTORS CORP.
Install the J 44551-5 screen installation tool (3) over the end of the suction hose and the suction screen (2).
Important: Correct placement of J 44551-5 is critical.
Tighten the forcing screw of J 44551-5 . The suction screen is fully installed when the screen is flush with the end of the suction hose fitting.
Remove the J 44551-5 suction screen tool from the suction hose.
Important: After a major compressor failure, you should also install an A/C refrigerant filter.
Install an A/C refrigerant filter. Refer to AIR CONDITIONING (A/C) REFRIGERANT FILTER INSTALLATION .
Install the J 44551-1 suction screen notification label.

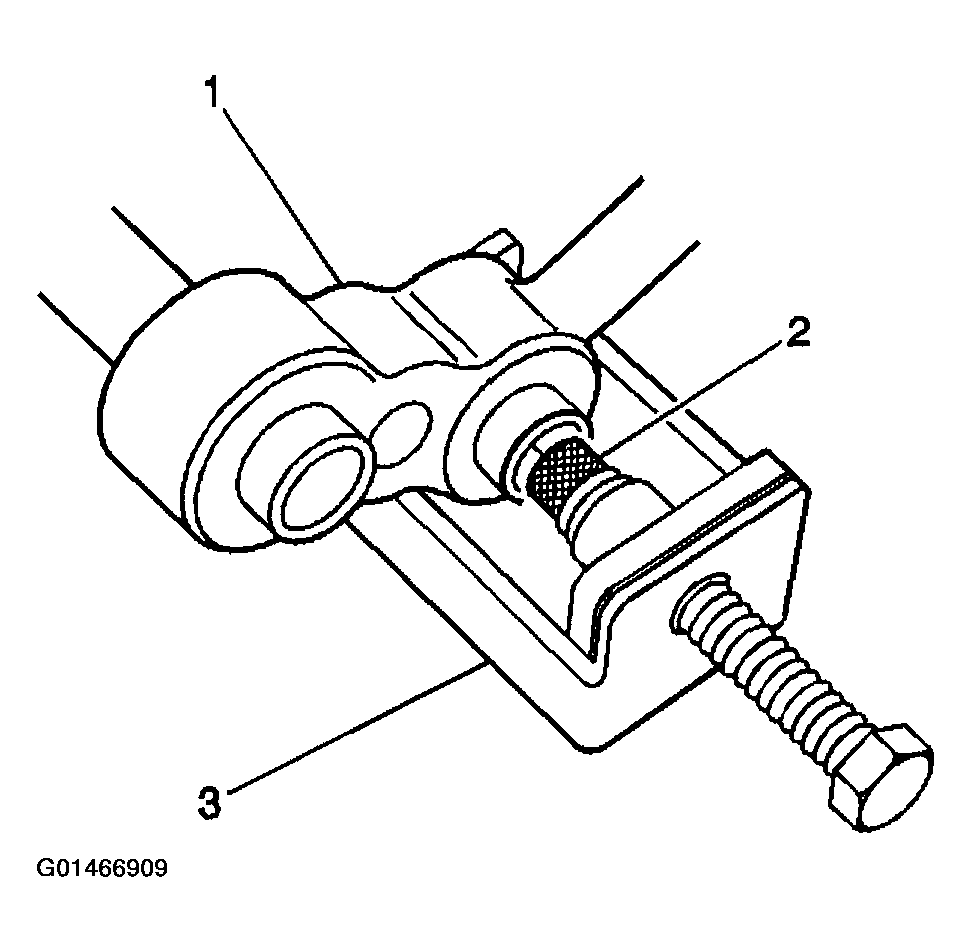

Fig 4: Installing J 44551-5 Tool Over End Of Suction Hose
Courtesy of GENERAL MOTORS CORP.
