Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation door (1) to the recirculation housing.
  2. Install the recirculation actuator. Refer to RECIRCULATION ACTUATOR REPLACEMENT .

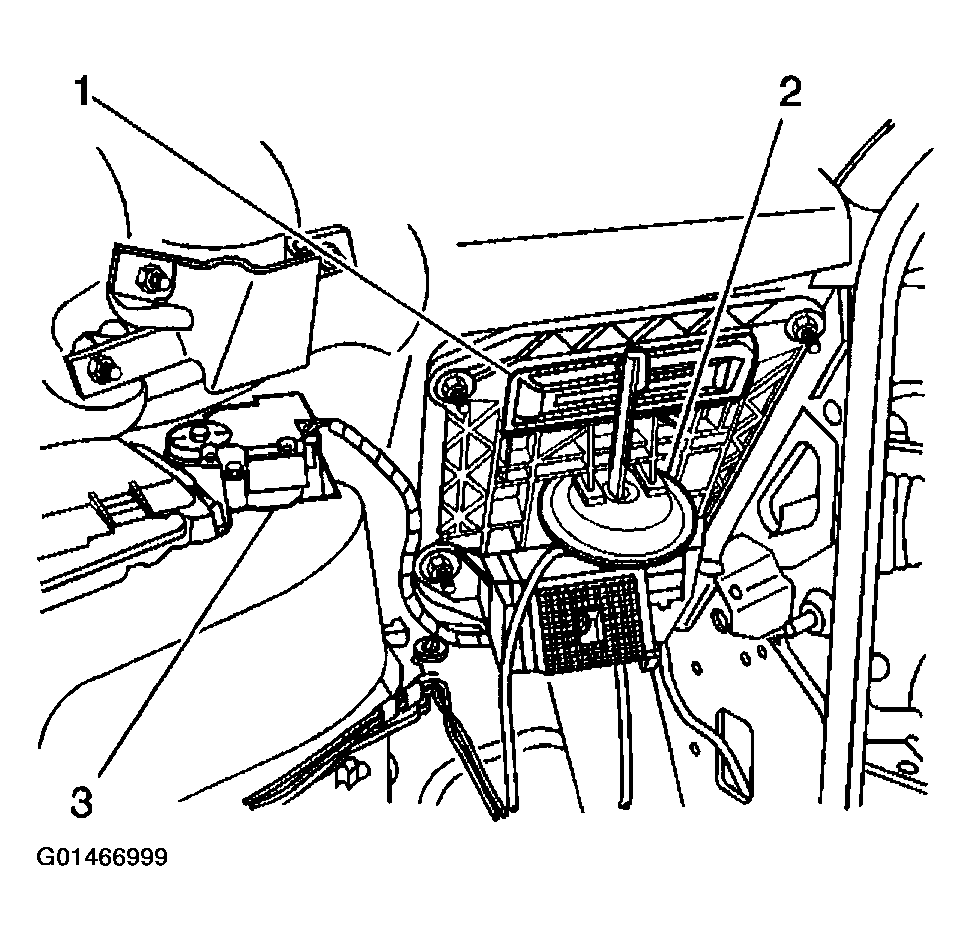

    Fig 1: Installing Recirculation Door To Recirculation Housing
    G01466999Courtesy of GENERAL MOTORS CORP.
