Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/vent module. Refer to HEATER/VENT MODULE REPLACEMENT .
  2. Remove screws in order to separate the HVAC module halves.
  3. Disconnect the actuator linkage from the door ends.
  4. Remove the air temperature actuator electrical connector.
  5. Remove the air temperature actuator screws.
  6. Remove the air temperature actuator from the module.

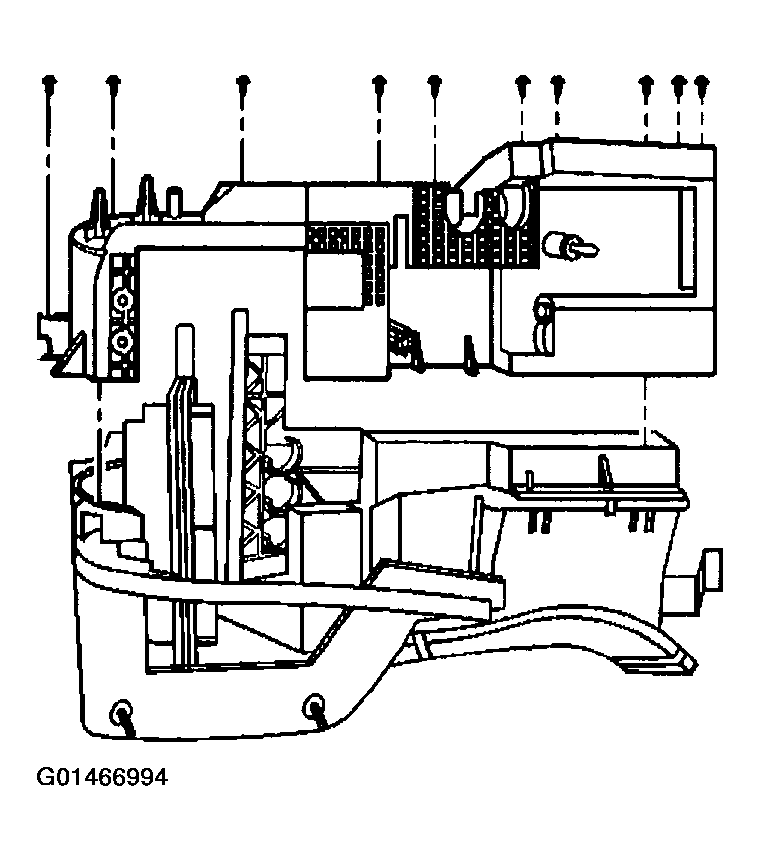

    Fig 1: Removing Screws In Order To Separate HVAC Module Halves
    G01466994Courtesy of GENERAL MOTORS CORP.
  7. Remove the defrost actuator vacuum connector.
  8. Remove the defrost actuator rod retaining clip.
  9. Remove the actuator rod from the defroster door.
  10. Remove the defrost actuator from the module.
  11. Remove the air temperature door from the module.
  12. Remove the mode door (1) from the module.

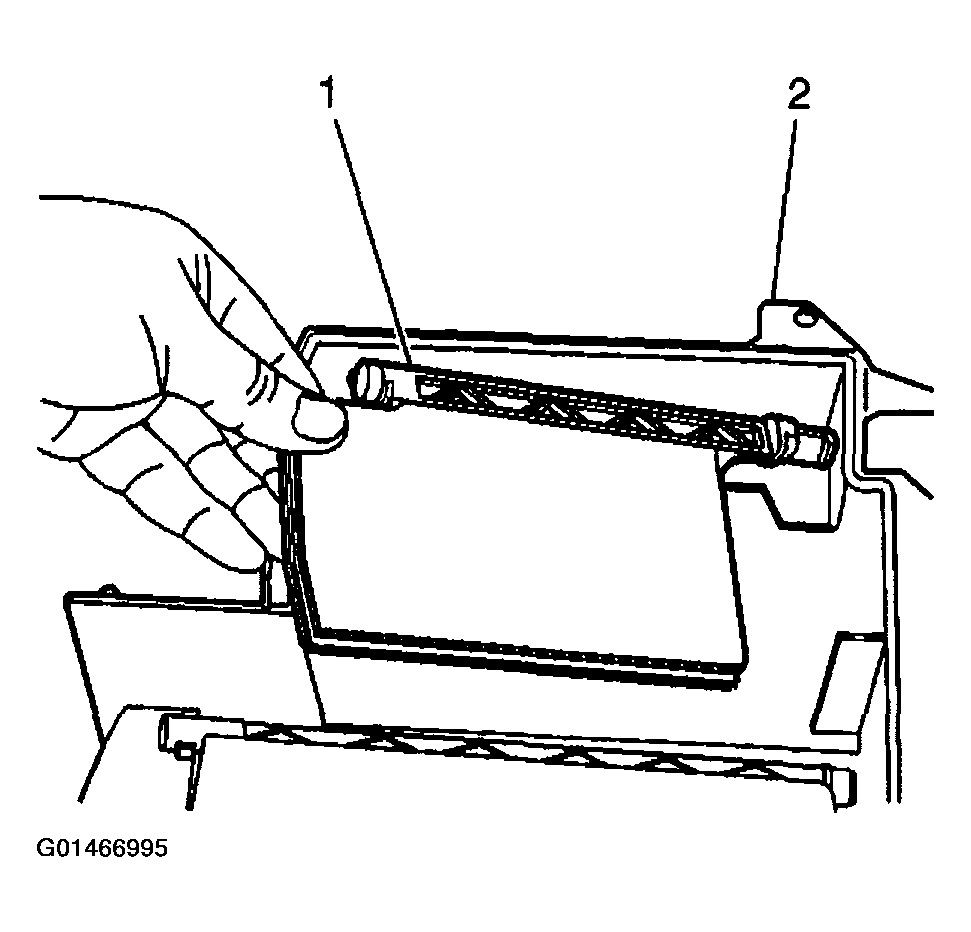

    Fig 2: Removing Mode Door From Module
    G01466995Courtesy of GENERAL MOTORS CORP.
