Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

J 43600  ACR 2000 Refrigerant System

  1. Clean the valve seat area on the rear head.
  2. Lubricate the O-ring of the new pressure relief valve (1) and the O-ring assembly using new 525 viscosity refrigerant oil.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the new pressure relief valve (1).

    Tighten

    Tighten the new valve to 9.0 N.m (80 Ib. ft).

  4. Evacuate and recharge the system using the J 43600  .
  5. Install the A/C compressor to the vehicle. Refer to COMPRESSOR REPLACEMENT (2.2L)  or COMPRESSOR REPLACEMENT (4.3L) .

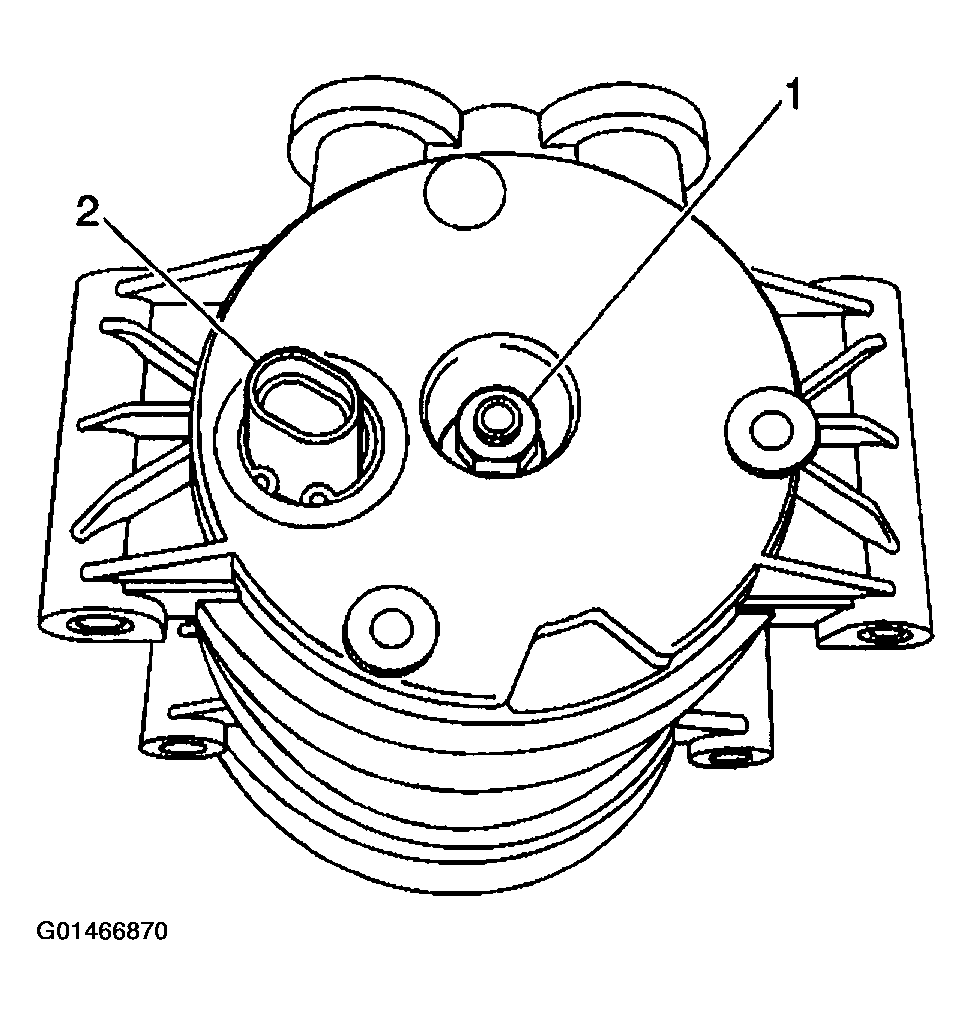

    Fig 1: Identifying Pressure Relief Valve And Electrical Connector
    G01466870Courtesy of GENERAL MOTORS CORP.
