Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

J 41790  Compressor Holding Fixture

  1. Clean the pressure relief valve seat area of the rear head.
  2. Lubricate the O-ring of the new pressure relief valve with clean 525 viscosity refrigerant oil.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the new pressure relief valve into the compressor.

    Tighten

    Tighten the compressor pressure relief valve to 9 N.m (80 Ib. in).

  4. Remove the compressor from the J 41790  .
  5. Install the A/C compressor to the vehicle. Refer to COMPRESSOR REPLACEMENT (2.2L)  or COMPRESSOR REPLACEMENT (4.3L) .

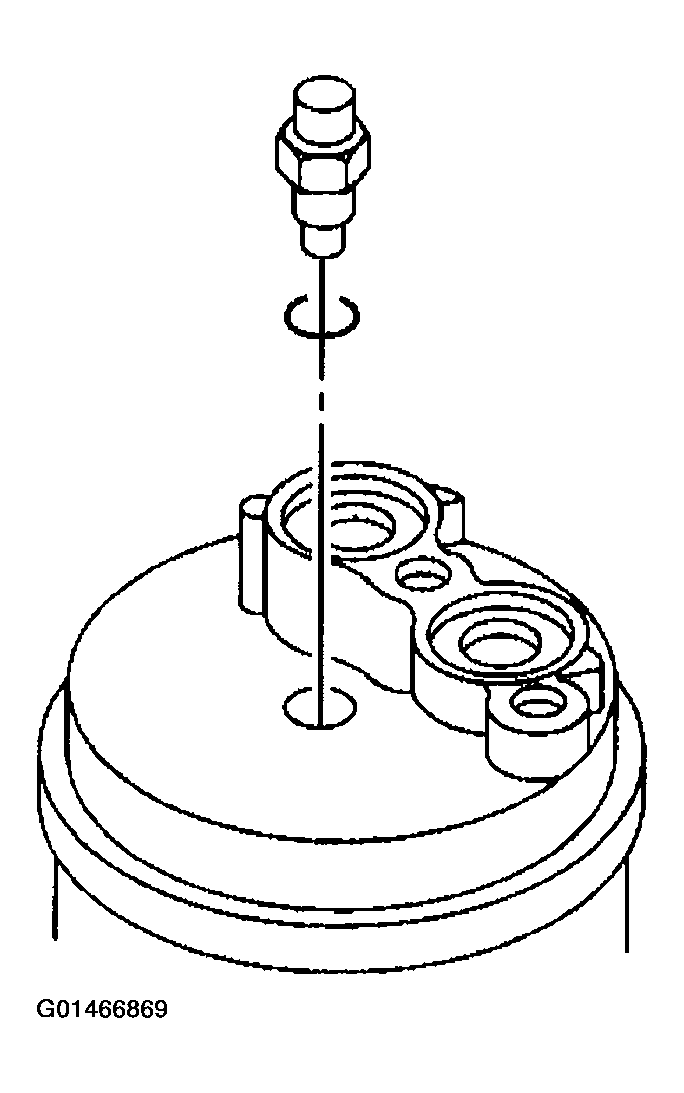

    Fig 1: Installing New Pressure Relief Valve Into Compressor
    G01466869Courtesy of GENERAL MOTORS CORP.
