Draining Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
Important: Drain and measure as much of the refrigerant oil as possible from the removed compressor.

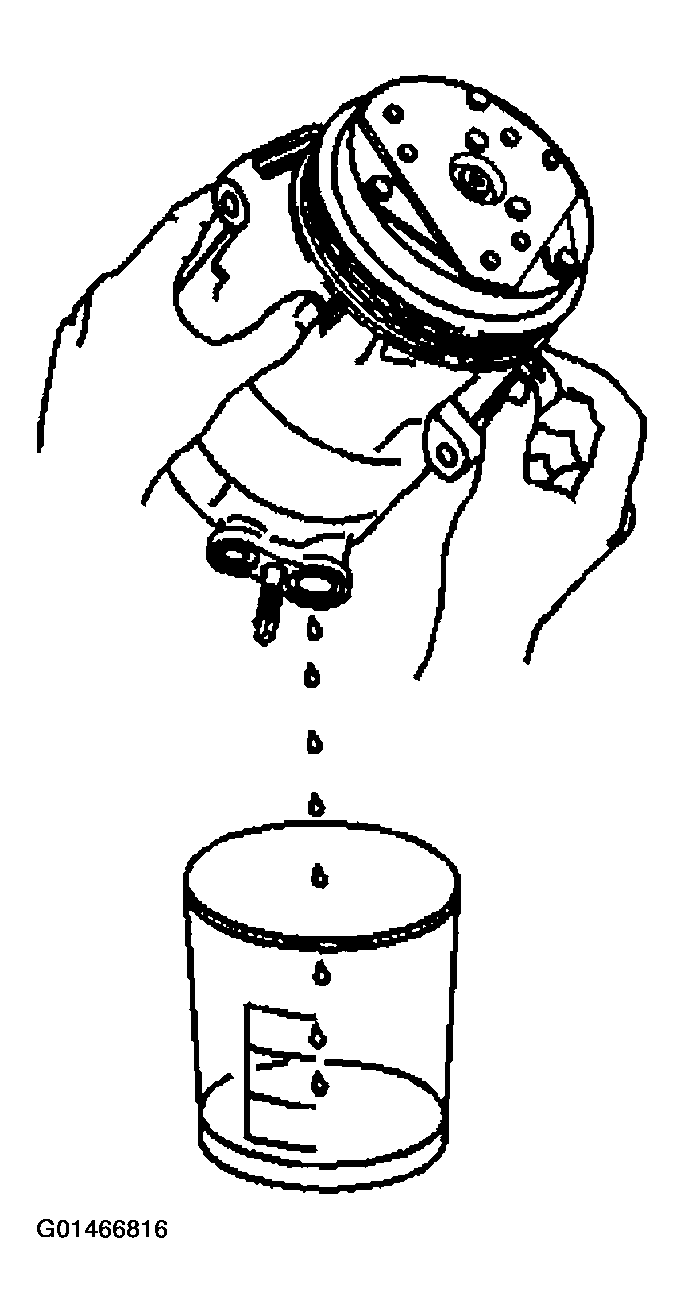

- Remove the compressor crankcase oil drain plug and drain the crankcase into a clean, graduated container.
- Drain the oil from both the suction and discharge ports of the removed compressor into the same container.
Rotate the compressor shaft to assist in draining the compressor.
- Measure and record the amount of oil drained from the removed compressor.
This measurement will be used during installation of the replacement compressor.
- Properly discard the used refrigerant oil.
