Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Remove the compressor hose assembly bolt (1) and the washer (2).
  3. Remove the compressor hose assembly from the compressor.
  4. Remove the sealing washers.

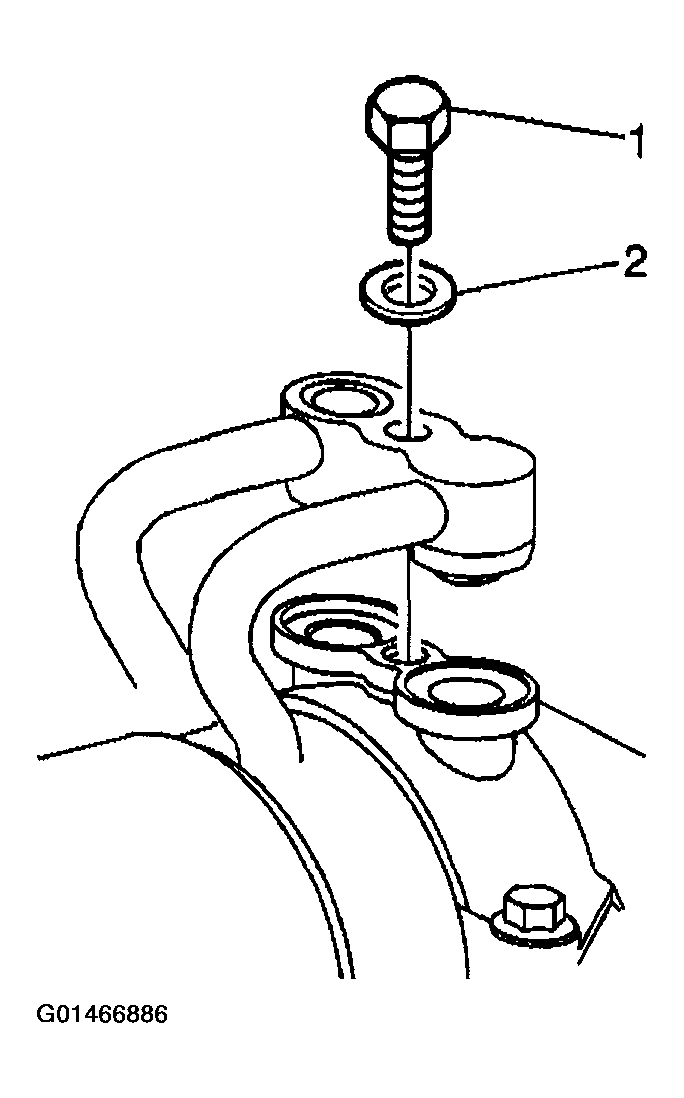

    Fig 1: Compressor Hose Assembly Bolt & Washer
    G01466886Courtesy of GENERAL MOTORS CORP.
  5. Remove the compressor hose assembly from the accumulator.
  6. Remove the O-ring seal and discard.
  7. Remove the lower radiator hose. Refer to RADIATOR HOSE REPLACEMENT - INLET (4.3L) or RADIATOR HOSE REPLACEMENT - INLET (2.2L) in Engine Cooling.

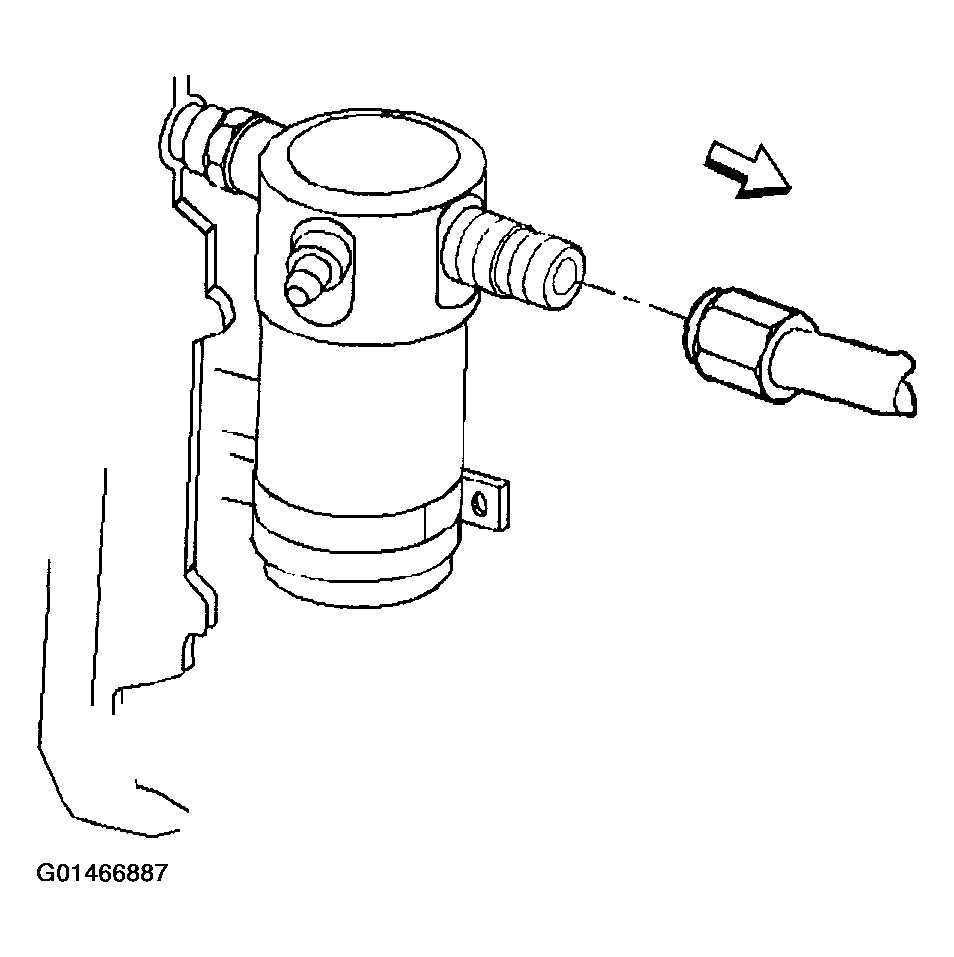

    Fig 2: Removing Compressor Hose Assembly From Accumulator
    G01466887Courtesy of GENERAL MOTORS CORP.
  8. Remove the compressor hose assembly from the condenser.
  9. Remove the O-ring seal and discard.

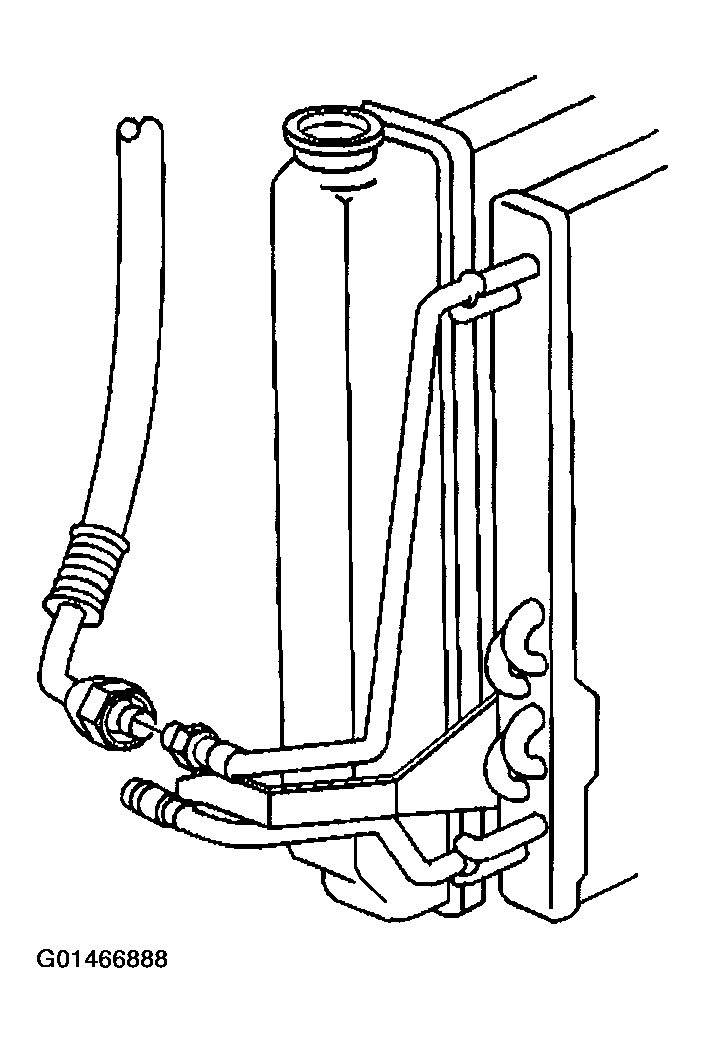

    Fig 3: Removing Compressor Hose Assembly From Condenser
    G01466888Courtesy of GENERAL MOTORS CORP.
