Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Remove the compressor hose assembly bolt (2) and the washer (1).
  3. Remove the compressor hose assembly from the compressor.
  4. Remove the sealing washers.

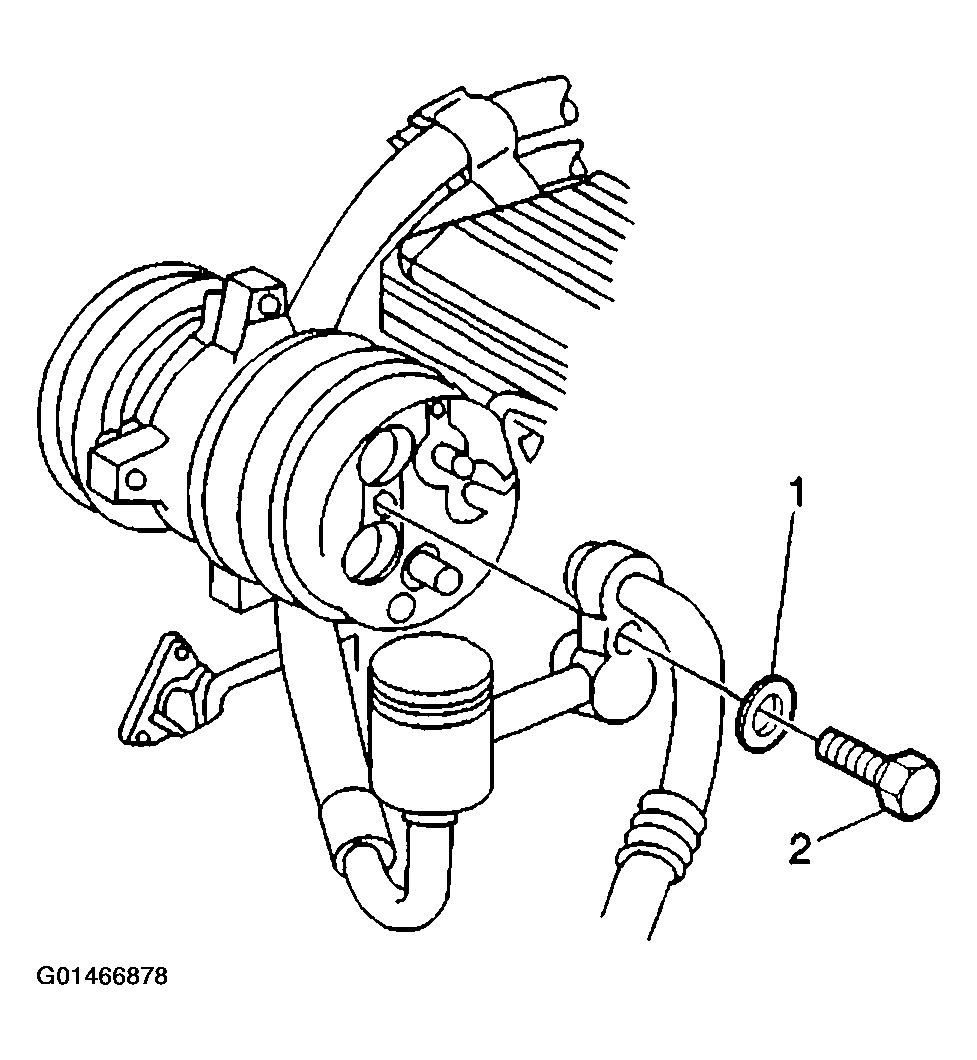

    Fig 1: Compressor Hose Assembly Bolt & Washer
    G01466878Courtesy of GENERAL MOTORS CORP.
  5. Remove the compressor hose assembly from the accumulator.
  6. Remove the O-ring seal.
  7. Remove the air intake resonator.
    Fig 2: Air Intake Resonator
    G01466879Courtesy of GENERAL MOTORS CORP.
  8. Remove the compressor hose assembly from the condenser.
  9. Remove the O-ring seal.

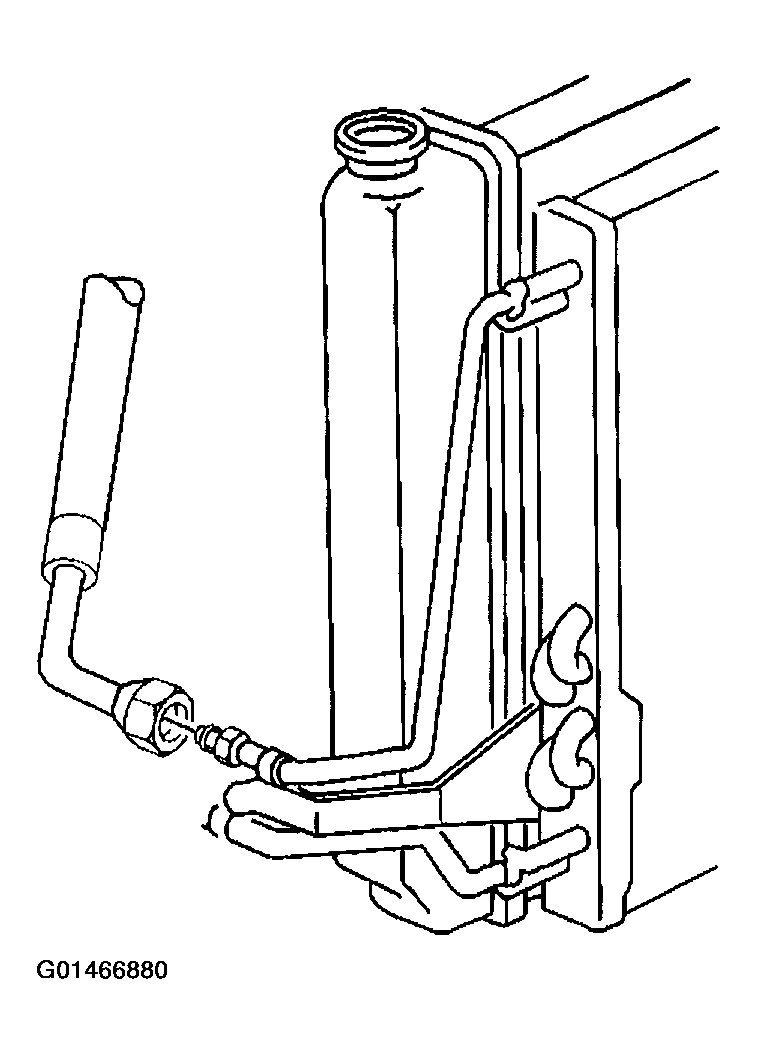

    Fig 3: Removing Compressor Hose Assembly From Condenser
    G01466880Courtesy of GENERAL MOTORS CORP.
  10. Remove the compressor hose assembly from the evaporator.
  11. Cap or plug all of the open connections.

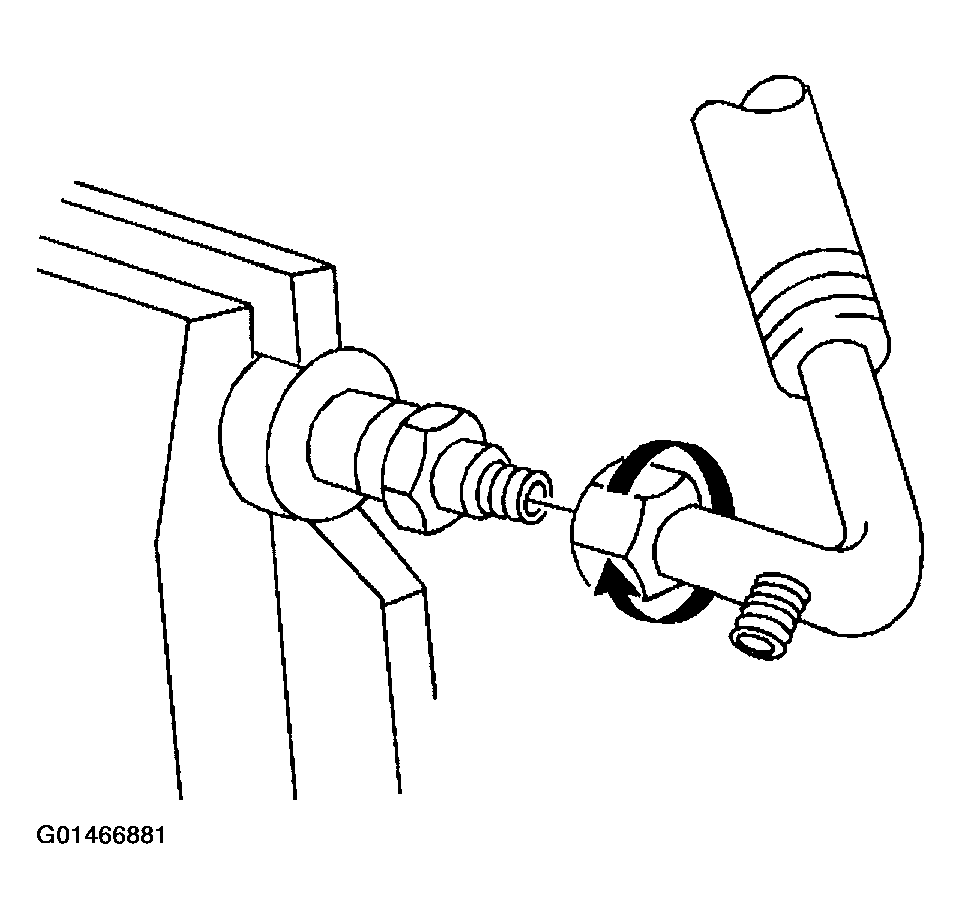

    Fig 4: Removing Compressor Hose Assembly From Evaporator
    G01466881Courtesy of GENERAL MOTORS CORP.
