Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the caps or plugs from the open connections.
  2. Install the compressor hose assembly to the evaporator.
  3. Install the air intake resonator.
  4. Install a new O-ring seal. Refer to O-RING REPLACEMENT .

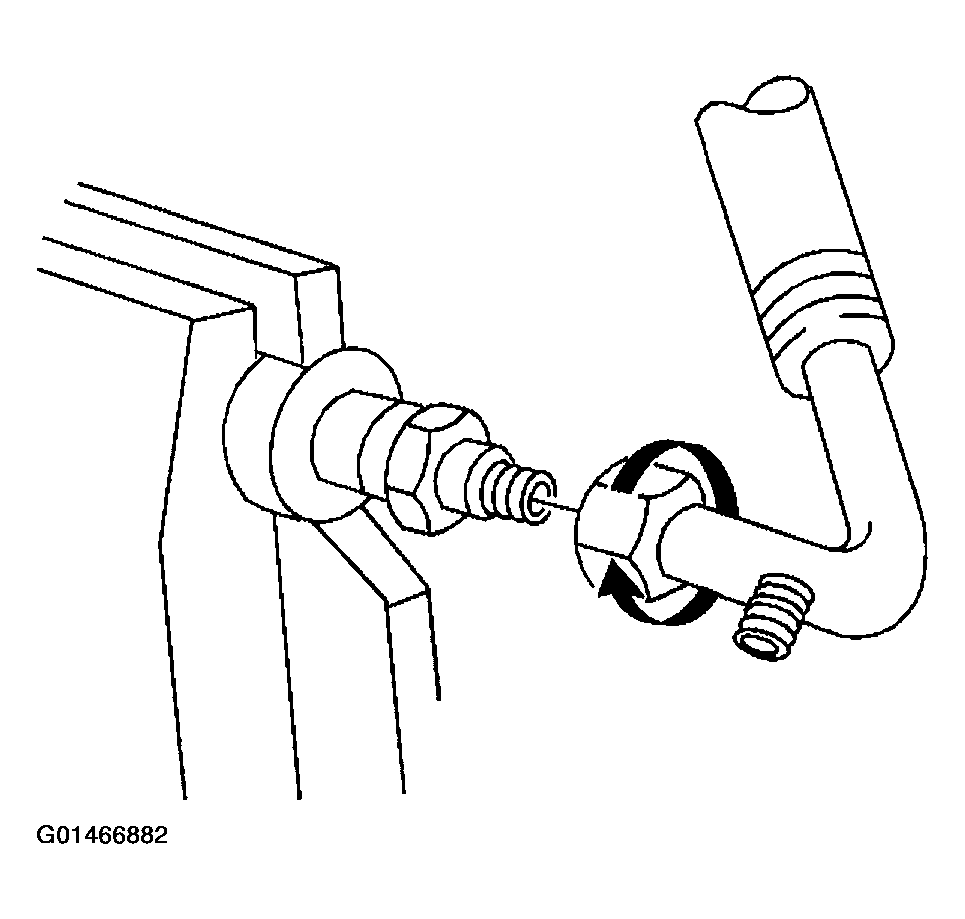

    Fig 1: Installing Compressor Hose Assembly To Evaporator
    G01466882Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the compressor hose assembly to the condenser.

    Tighten

    Tighten the hose to 28 N.m (21 Ib. ft).

  6. Install a new O-ring seal. Refer to O-RING REPLACEMENT .

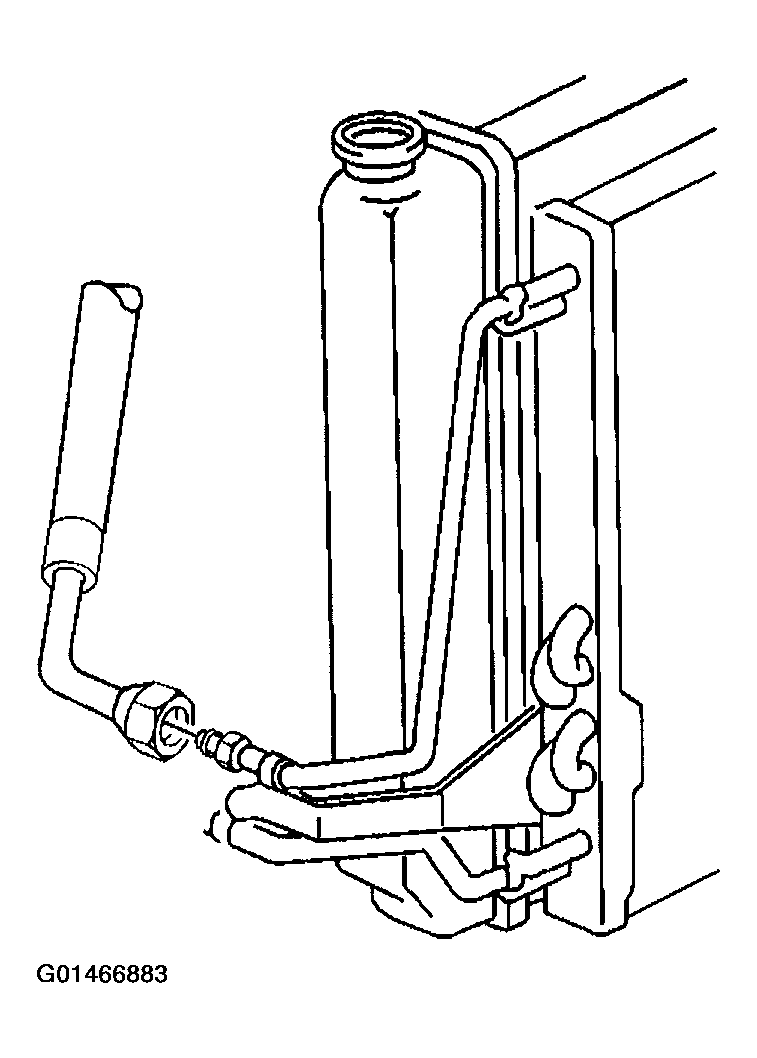

    Fig 2: Installing Compressor Hose Assembly To Condenser
    G01466883Courtesy of GENERAL MOTORS CORP.
  7. Install the compressor hose assembly to the accumulator.

    Tighten

    Tighten the hose to 48 N.m (35 Ib. ft).

  8. Install the sealing washers. Refer to COMPRESSOR SEALING WASHERS REPLACEMENT .
    Fig 3: Installing Compressor Hose Assembly To Accumulator
    G01466884Courtesy of GENERAL MOTORS CORP.
  9. Install the compressor hose assembly to the compressor.
  10. Install the compressor hose assembly washer (1) and the bolt (2).

    Tighten

    Tighten the bolt to 33 N.m (24 Ib. ft).

  11. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  12. Leak test the fittings of the components using the J 39400-A  .

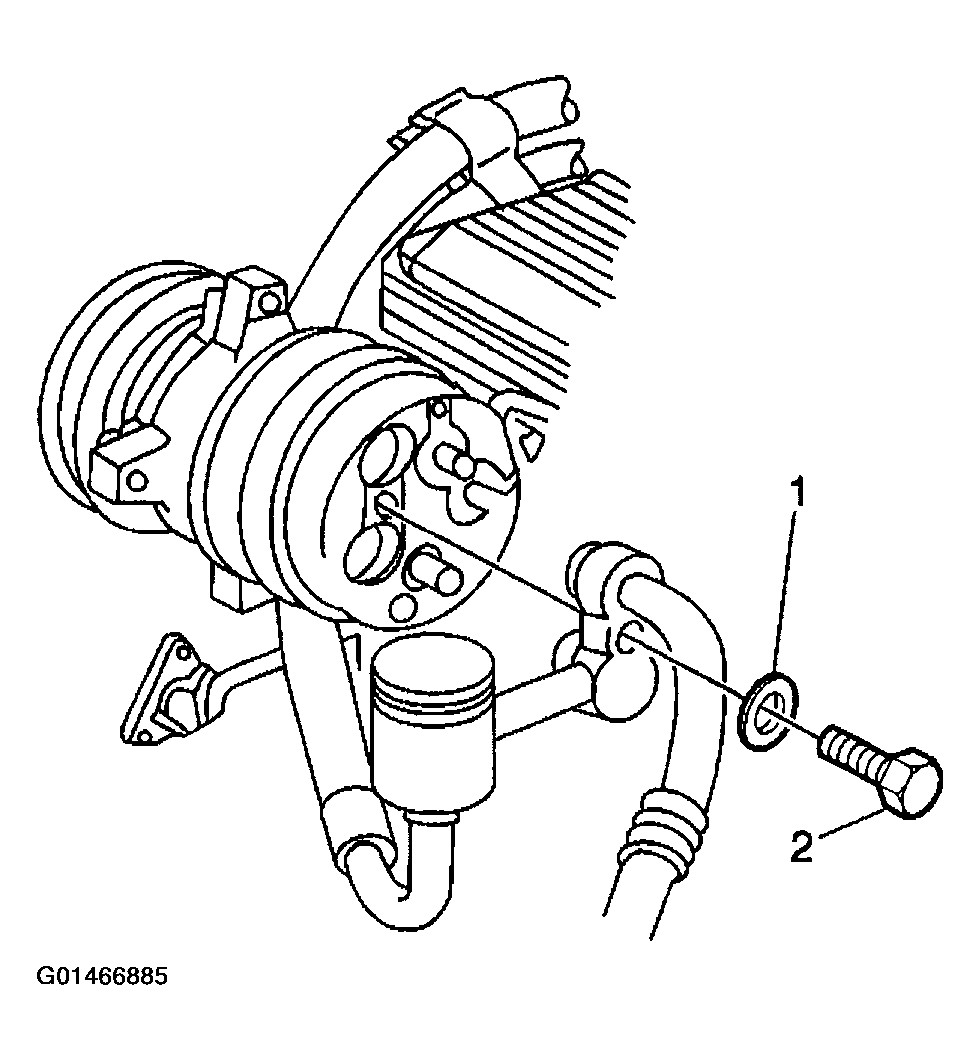

    Fig 4: Compressor Hose Assembly Washer & Bolt
    G01466885Courtesy of GENERAL MOTORS CORP.
